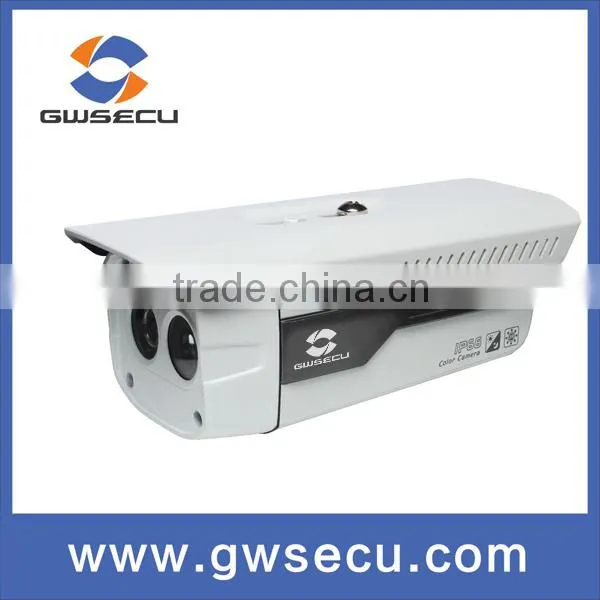

Outdoor 1.3Megapixel 720P Water-proof CCTV IR IP66 HDCVI Security Camera

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

K&D

Model Number:

KD-HW71AC72-CVI

Shenzhen Guowei Security Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name K&D

Model Number KD-HW71AC72-CVI

Type Analog Camera

Style Bullet Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

Outdoor 1.3Megapixel 720P Water-proof CCTV IR IP66 HDCVI Security Camera
OSD Menu
6mm fixed lens
IR LEDs length 30m
IP66, D

Outdoor 1.3Megapixel 720P Water-proof CCTV IR IP66 HDCVI Security Camera

> 1/3" 1.3Megapixel CMOS

> 25/30/50/60fps@720P

> High speed, long distance real-time transmission

> HD and standard definition switch.

> OSD Menu, control over coaxial cable

> Day/Night(ICR), AWB, AGC, BLC, 3D-DNR

> 6mm fixed lens (2.8 mm, 3.6mm, 8mm optional)

> Max. IR LEDs length 30m, Smart IR

>IP66, DC12V

Model	KD-HW71AC72-CVI
Camera
Image Sensor	1/3" 1.3Megapixel CMOS
Effective Pixels	1280(H)×960(V)
Electronic Shutter	PAL:4/25s~1/45,000s;NTSC: 4/30~1/54,000s
Video Frame Rate	1280×720@25 fps; 1280×720@ 30 fps; 1280×720@50 fps;1280×720@ 60 fps
Synchronization	Internal
Min. Illumination	0.01Lux@ F1.2(0Lux IR LED on)
Video Output	1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length	30m, Smart IR
Day/Night	Auto(ICR)/B&W/Color
Noise Reduction	3D/2D
OSD Menu	Support
Lens
Focal length	6mm (2.8 mm, 3.6mm, 8mm optional)
Mount Type	M12
General
Power Supply	DC12V±10%
Power Consumption	Max 6W
Working Environment	-30°C~+60°C Humidity is less than 95%(no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Ingress Protection	IP66

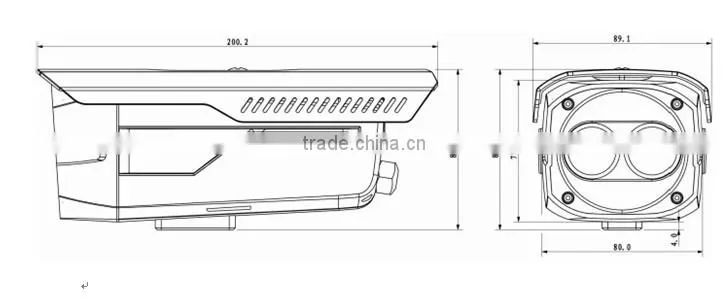

Dimensions(W×D×H)	89.1mm×200.2mm×80.4mm
Weight	580g
