Specifications

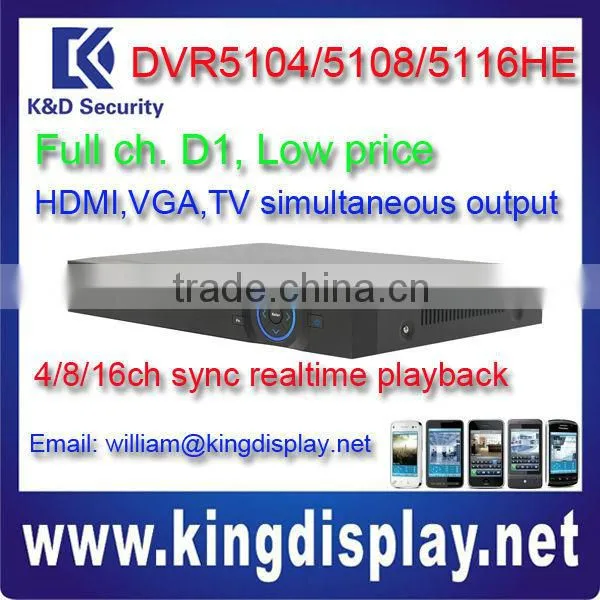

DVR5104HE hd dvr manual dvr firmware hikvision dvr kit DVR5108/DVR5116HE hd sdi dvr manual car camera 3g mobile dvr h264 dvrWe sale dahua whole range of products: Dahua IP camera, Dahua NVR,Dahua DVR,Dahua encoder and decoder,Dahua IP SAN. Low price!
In stock!!
Contact the following to get the BEST support:
DVR5204A DVR5216A rearview mirror manual car poe camera car dvr hd dvr manual mobile dvr car dvr DVR5208A 2014 china h264 dvr
Features:
> Up to 4/8/16 cameras with 1080p realtime preview
> H.264 dual-stream video compression
> All channel D1(4CIF) realtime recording
> HDMI / VGA / TV simultaneous video output
> All channel synchronous realtime playback, GRID interface & smart search
> 3D intelligent positioning with Dahua PTZ dome camera
> Support 1 SATA HDD up to 4TB, 2 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
| Model | DVR5104HE | DVR5108HE | DVR5116HE | |
| System | ||||
| Main Processor | Embedded processor | |||
| Operating System | Embedded LINUX | |||
| Video | ||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | |
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | |||
| Audio | ||||
| Input | 4 channel, RCA | |||
| Output | 1 channel, RCA | |||
| Two-way Talk | Reuse audio input/output channel 1 | |||
| Display | ||||
| Interface | 1 HDMI, 1 VGA, 1 TV, BNC(1.0Vp-p, 75) | |||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768, 800×600 | |||
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 | |
| Privacy Masking | 4 rectangular zones (each camera) | |||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Recording | ||||
| Video/Audio Compression | H.264 / G.711 | |||
| Resolution | D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120) | |||
| Record Rate | Main Stream: | D1(1~25/30fps) | ||
| Extra Stream | CIF(1~25/30fps) | |||
| Bit Rate | 48~4096Kb/s | |||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | |||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | |||
| Video Detection& Alarm | ||||
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Alarm Input | 4 channel | 8 channel | 16 channel | |
| Relay Output | 3 channel | 1channel | ||
| Playback & Backup | ||||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 | |
| Search Mode | Time/Date, MD & Exact search (accurate to second) | |||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Device / Network | |||
| Network | ||||
| Ethernet | RJ-45 port (10/100M) | |||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | |||
| Max. User Access | 20 users | |||
| Smart Phone | iPhone, iPad, Android, Windows Phone | |||
| Storage | ||||
| Internal HDD | 1 SATA port, up to 4TB | |||
| Auxiliary Interface | ||||
| USB Interface | 2 ports (1 Rear), USB2.0 | |||
| RS485 | PTZ control | |||
| General | ||||
| Power Supply | DC12V/2A | |||
| Power Consumption | 10W(without HDD) | |||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | |||
| Dimension(W×D×H) | Mini 1U, 325mm×245mm×45mm | |||
| Weight | 1.5KG(without HDD) | |||
connection:
IE software:
`
Local DVR:
PSS software:
Service
according to client's order quantity Our service:
1.Good Reply .Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM.any your idea on camera we can help you to design and put it into products
3.Warranty.2-years warranty
4.Shipping . We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS .
and once we get your order, we can find the lowest shipping cost for your order, Shipping cost are quoted under your requirements.
As a leading professinoal manufacture in China, we always put quality on the first place, put customer on the first place.Choose K&D Choose professional.
