Specifications

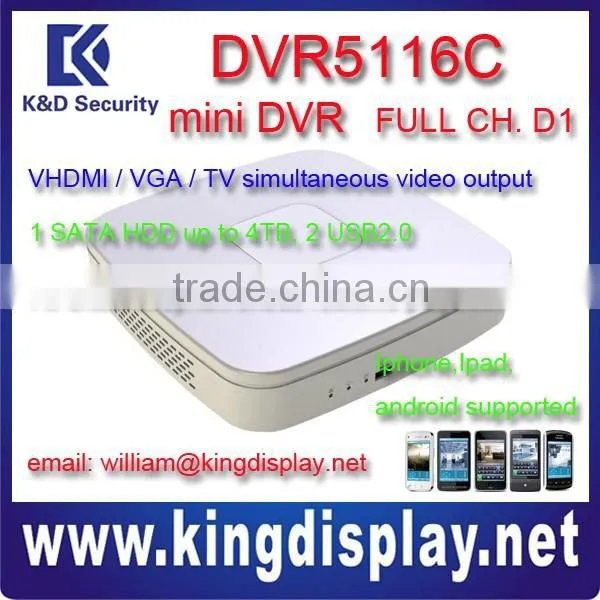

MINI dvr 2014 Smart manua mini dvr kit hd dvr h.264 dvr 3g mobile dvr DVR5104C hikvision dvr DVR5108/5116C MAX poe dvr dahua dvrWe sale dahua whole range of products: Dahua IP camera, Dahua NVR,Dahua DVR,Dahua encoder and decoder,Dahua IP SAN. Low price!
In stock!!
Contact the following to get the BEST support:
MINI dvr 2014 Smart manua mini dvr kit hd dvr h.264 dvr 3g mobile dvr DVR5104C hikvision dvr DVR5108/5116C MAX poe dvr dahua dvr
Features:
> Up to 4/8/16 cameras with 1080p realtime preview
> H.264 dual-stream video compression
> DVR5104/5108/5116C: All channel D1(4CIF) realtime recording
> HDMI / VGA / TV simultaneous video output
> All channel synchronous realtime playback, GRID interface & smart search
> Support 1 SATA HDD up to 4TB, 2 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
| Model | DH-DVR5104C | DH-DVR5108C | DH-DVR5116C | ||
| System | |||||
| Main Processor | Embedded processor | ||||
| Operating System | Embedded LINUX | ||||
| Video | |||||
| Input | 4 channel, BNC | 8 channel, BNC | 16 channel, BNC | ||
| Standard | NTSC(525Line, 60f/s), PAL(625Line, 50f/s) | ||||
| Display | |||||
| Interface | 1HDMI, 1 VGA, 1 TV, BNC | ||||
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | ||||
| Display Split | 1/4 | 1/4/8/9 | 1/4/8/9/16 | ||
| Privacy Masking | 4 rectangular zones (each camera) | ||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||||
| Recording | |||||
| Video Compression | H.264 | ||||
| Resolution | D1/4CIF(704×576/704×480) 2CIF(704×288/704×240)/ CIF(352×288/352×240) / QCIF(176×144/176×120) | ||||
| Record Rate | Main Stream: | D1(1~25/30fps) | |||
| Extra Stream | CIF/QCIF(1~25/30ps) | ||||
| Bit Rate | 48~4096Kb/s | ||||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||||
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||||
| Video Detection | |||||
| Trigger Events | Recording, Tour, Video Push, Email, FTP, Buzzer & Screen tips | ||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Playback & Backup | |||||
| Sync Playback | 1/4 | 1/4/9 | 1/4/9/16 | ||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | ||||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | ||||
| Backup Mode | USB Device / Network | ||||
| Network | |||||
| Ethernet | RJ-45 port (10/100M) | ||||
| Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | ||||
| Max. User Access | 20 users | ||||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||||
| Storage | |||||
| Internal HDD | 1 SATA port, up to 4TB | ||||
| Auxiliary Interface | |||||
| USB Interface | 2 ports (1 Rear), USB2.0 | ||||
| General | |||||
| Power Supply | DC12V/2A | ||||
| Power Consumption | 10W(without HDD) | ||||
| Working Environment | -10 ~+55°C / 10~90%RH / 86~106kpa | ||||
| Dimension(W×D×H) | 205mm×205mm | 270mm×205mm×40mm | |||
| Weight | 0.5KG | ||||
connection:
IE software:
`
Local DVR:
PSS software:
Service
according to client's order quantity Our service:
1.Good Reply .Your inquiry related to our products or price will be replied within 24 hours.
2.OEM&ODM.any your idea on camera we can help you to design and put it into products
3.Warranty.2-years warranty
4.Shipping . We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS .
and once we get your order, we can find the lowest shipping cost for your order, Shipping cost are quoted under your requirements.
As a leading professinoal manufacture in China, we always put quality on the first place, put customer on the first place.Choose K&D Choose professional.
