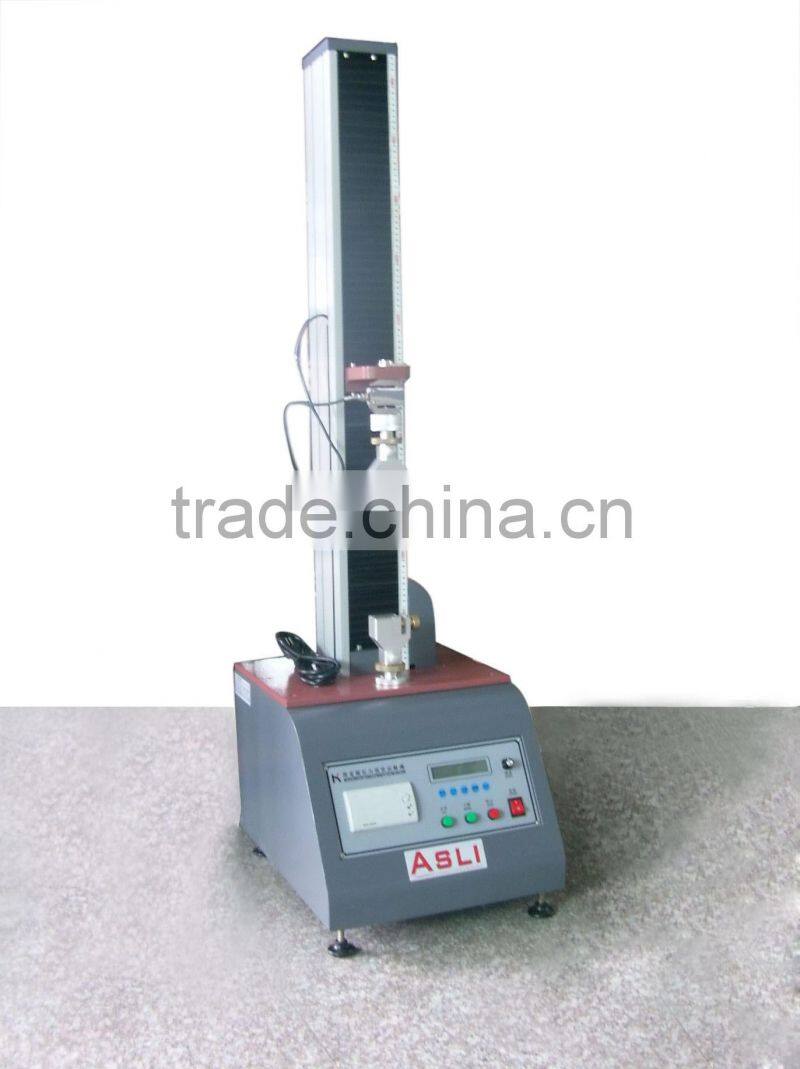

Tensile Strength Testing Machine
Tensile Strength Testing Machine Application
Computer servo tensile tester is an electrically operated machine that is used for testing tensile strength and
elongation of materials like plywood, wires, cables, conductors, ferrous and non-ferrous materials.
Tensile Strength Testing Machine Features:
1. Force value and deformation can display at the same time.
2. Drive by servo motor, stand-alone can sent testing speed directly.
3. Press Start button the machine will testing automatic after setting.
4. After finishing testing, it can self-return.
5. Fast disassembly joint, can use different kinds grips.
6. Single button testing function, easy operation
7. Direct-connected to printer, print out report.
Tensile Strength Testing Machine Technical Parameters:
Model |
AS-PC- Volume |
Capacity (Kg) |
50,100,200,500,1000,2000,5000,10000,20000 |
Load Accuracy |
0.5% |
Load Resolution |
1/100,000 |
Valid Width (mm) |
400 |
Max. Route (mm) |
1000(not including clamp) |
Test Speed (mm/Min.) |
0.1~500(1000) |
Speed Accuracy |
±0.5% |
Motor |
AC servo motor |
Volume WxHxD (mm) |
1750x3310x1220 |
Weight (Kg) |
300 |
Power |
AC220V 1Ph 3 lines |
More Pictures of Tensile Strength Testing Machine for your reference :
...
