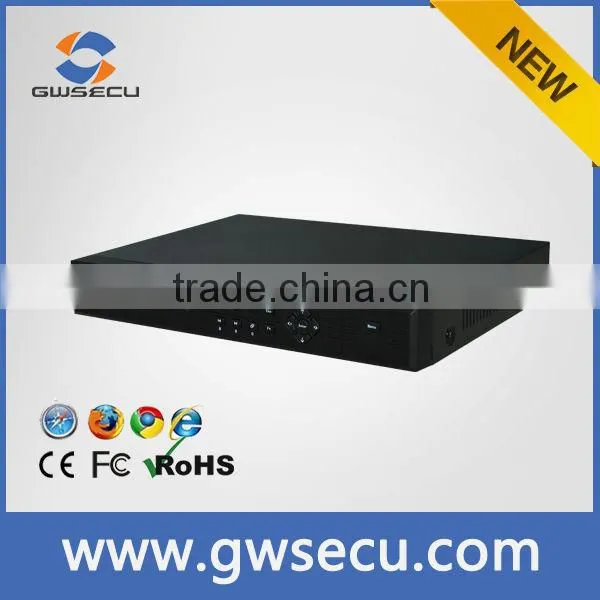

720P Thribrid TVI DVR 4ch TVI IP CVBS option input dvr smart mobile app viewing cloud server monitoring recorder

Model

KD-Z3704H-TVI

Special function

P2P function(IE)

Using Device ID and password to login ;
Realize remote monitoring, playback and control like IE Web login;
No need any network, IP setting, easy for end user to use network function.

Web 2.0 function

Support multi brower, like: chrome, firefox, safari etc;
Realize remote display, playback.

system

Operation System

Embedded LINUX

Basic function

Live monitoring, recording, playback, backup & remote access

Control Mode

Front panel, USB mouse, IR remote control,Network

Video

CVBS/TVI/IP Input

4 CH; CVBS signals, TVI adaptive compatible; 4ch 720P ip optional

BNC interface (Vp - 1.0 p, 75 ohms), TVI signal up to 1080P

Output

1 HDMI  1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution

1 VGA   1920×1080,1280×1024,1366×768,1280×720,1024×768 Resolution

1 CVBS  (1.0Vp-p,75ohms)

Audio

Input

1CH.RCA (2Vpp,1Kohms)

Output

1CH.RCA (Line out,2Vpp,300ohms)

Two-way Talk

1CH Voice intercom reuse

Audio & video coding

Video/Audio Compression

H.264/G.711A

Video Encoding

Adjustable encoding quality, variable code stream/fixed code stream

Coding ability

4CH 1080P@15FPS

4CH 720P@30FPS

Coding resolution

1080p, 720p, WD1, D1 optional; Auxiliary stream: CIF, QCIF optional

Frame

1-30fps

Video bit rate

32Kbps~8192Kbps

Audio bit rate

64Kbps

Double stream

Support     MAX CIF@6FPS

Video Detection & Alarm

Motion Detection

396 (22×18) detection zone, variable sensitivity levels

Privacy Mask

1CH Support 4 regional block pieces

Capture

JPEG capture

Playback & Backup

Playback Channel

Top 4 ch synchronous playback

decoding ability

The highest decoding ability, 2CH 1080P@15FPS and 2CH720P@30FPS

Backup Mode

USB, HDD, Network Backup

Network

Ethernet

1 RJ-45 port (10M/100M optional)

Network Function

DHCP, PPPOE, DDNS,SMTP,SNTP,FTP,UPnP,P2P

Remote Operation

Monitoring, playback, system setting, file download, log information

Smart Phone

iPhone, iPad, Android, Blackberry, Windows Mobile

Hard Disk

Hard Disk

1 SATA port,each SATA supports 4TB

HDD Management

Hard disk hibernation technology, HDD faulty alarm

Auxiliary Interface

USB Interface

2 USB 2.0 ports

Environment

Power Supply

DC 12V/2A

Power Consumption

7W (without HDD)

Working Environment

0°C~+55°C / 10%~90%RH

Dimension

(W×D×H)

1U,320x245x50mm

Weight

2Kg (without HDD)

Installation

Desk type
