Home Surveillance Poe CCTV Kit With 4 Network IP Cameras Face Recognition
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GWSECU
Model Number:
KD-Z3904NS-72C2-4P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Price 4CH NVR KIT Home Security System CCTV Kits 1.3mp Network CamerasNegotiableMOQ: 1 Piece -
Cheap 4ch Home Use Full D1 Mini DVR With 850TVL Camera DIY Cctv Kit Package Quality ChoiceNegotiableMOQ: 1 Set
-
DIY CCTV Kit Package 4ch Home Use Full D1 Mini DVR With 850TVL Camera Cctv Kit Quality ChoiceNegotiableMOQ: 1 Set
-
4ch/8ch/16ch H.264 Standalone Cctv Dvr KitNegotiableMOQ: 1 Piece
-
DIY CCTV Kit Package With Mini Full D1 DVR and Small ir Waterproof 700tvl CameraNegotiableMOQ: 1 Set
Brand Name
GWSECU
Model Number
KD-Z3904NS-72C2-4P
Home surveillance Poe CCTV kit with 4 network IP cameras Face recognition
2015 News
2015 New H.265 IP cam
2015 CPSE Booth 1T19
Product Show map

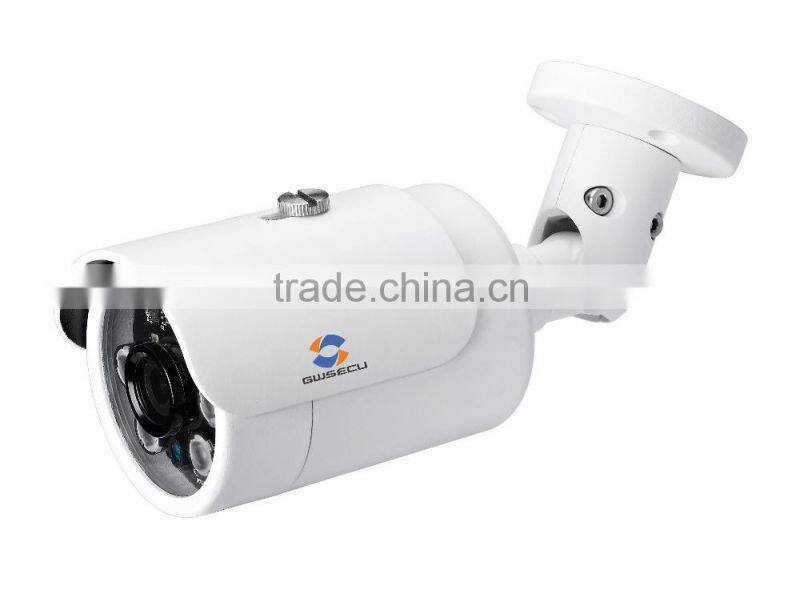

Camera Specs
| Model | KDT-HW10RC72-EP |
| General | |
| Main Processor | Ti DaVinci Series DSP |
| Operating System | embedded LINUX |
| Resource | Simultaneous remote monitoring local recording and remote control |
| User Interface | WEB CMS NVR |
| Camera | |
| Image Sensor | 1/3" 1.3Megapixel Progressive Scan Aptina CMOS Sensor |
| Effective Pixels | 1280(H)×960(V) |
| Electronic Shutter | 1/5s to 1/50000s |
| Mini. Illumination | Color:0.1Lux/F1.2; B/W:0.005Lux/F1.2 0Lux/F1.2(IR on) |
| Signal Noise Ratio | >50dB |
| Day/Night Mode | Auto dual IR-Cut filter |
| Gain Control | Auto/Manual |
| White Balance | Auto/Manual |
| WDR Dynamic Range | DWDR |
| Lens | 3.6mm Fixed Lend (6mm/8mm optional M12 mount) |
| Max IR Distance | 30m |
| Video | |
| Video Compression | H.264/MJPEG Optional |
| H.264 Encode Type | H.264 baseline/H.264 Main Profile/H.264 High Profile Optional |
| Video Bit Rate | Main Stream:200Kbps~8Mbps |
| Sub Stream: 100Kbps~6Mbps | |
| Image Resolution | 1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) |
| Encoding Speed | Main Stream: 1.3M/720P/D1(1~25fps/30fps) |
| Extra Stream: D1/CIF(1~25fps/30fps) | |
| Video Format | PAL/NTSC |
| Network | |
| Ethernet | RJ-45 (10/100base-T) |
| Network Protocol | Ipv4/Ipv6 RTSP TCP/UDP HTTP DHCP DNS FTP DDNS PPPoE SMTP |
| Common Features | One button Reset Prevent Flicker Dual-stream Heartbeat Password Protect Video cover Motion Alarm |
| ONVIF | ONVIF Ver.2.4 |
| Max User Access | 10 users |
| Smart phone | Iphone Ipad Android |
| Remote Operation | Monitor System setting Log information Maintenance & Upgrade |
| Auxiliary Interface | |
| Reset Input | One Reset Button(Hold on 3 seconds at least) |
| Environmental | |
| Power Supply | DC12V |
| Power Consumption | <5W |
| Working Environment | -40ºC ~ +60ºC Humidity less than95%(Non-condensing) |
| Protection Level | IP66 |
| Dimensions(mm) | 66.7mm×62.0mm×173mm |
| Weight(kg) | 0.4Kg |
| PoE | IEEE802.3af |

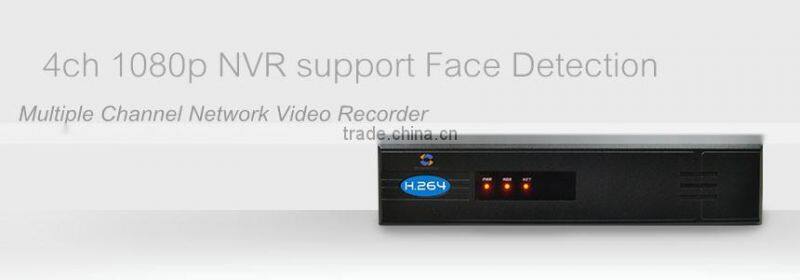

NVR Specs
| Model | KD-Z3904N-P | ||
| Special function | |||
| P2P function (based on IE browser) | Using Device ID and password to login and manage multiple device together No need complicated setting with Router easy for end user to use network function. |
||
| System | |||
| Operating System | embedded LINUX | ||
| Basic function | Live monitoring recording playback backup & remote access | ||
| Control Mode | Front panel USB mouse IR remote control Network | ||
| Incoming bandwidth | 40Mbps | ||
| Video | |||
| Max. Video Input | 4 channel | ||
| IP Camera Input | 4CH.D1 2Mpbs | ||
| 4CH.720P 4Mpbs | |||
| 4CH.1080P 8Mbps | |||
| Video Output | 1 HDMI 1 VGA 1CVBS BNC(1.0Vp-p75ohms) 1920×1080 1280×1024 1280×720 1024×768 | ||
| Support Protocol | ONVIF 2.2 | ||
| Standard | PAL (625line 50f/s) NTSC (525line 60f/s) | ||
| Output | 1CHBNC(Line out2Vpp300ohms) | ||
| Two-way Talk | Mic input1CHBNC(Line in2Vpp1Kohms) | ||
| Audio Compression | G.711A | ||
| Audio Bit Rate | 64Kbps | ||
| Image Display | |||
| Resolution | 1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | ||
| Display Split | Four zones for privacy masking for each channel | ||
| Recording | |||
| Video / Audio codec | MPEG-4/H.264(High Profile Level4.2)/G.711A | ||
| Resolution | Main stream: 1920*1080p max. Auxiliary stream: D1 max. |
||
| Image Encoding | Adjustable encoding quality variable code stream/fixed code stream | ||
| Dual Stream | Support | ||
| Record Mode | Manual Auto(schedule) motion detection stop | ||
| Time bar | Support | ||
| Video Detection | |||
| Trigger Events | Recording PTZ Tour Alarm Video Push Email FTP Buzzer & Screen tips | ||
| Video Detection | 396 (22×18) detection zone variable sensitivity levels | ||
| Capture | Local and Software | ||
| Intelligent | Support :The line detection ; License Plate Recognition ; Face Recognition ; People Counting ; Climb the walls | ||
| Playback & Backup | |||
| Synchronous Playback | 4 Channel Max. | ||
| Playback Performance | 4CH D1 or 4CH 720P or 4CH 1080P | ||
| Backup Mode | USB HDD Network Backup | ||
| Network | |||
| Ethernet | RJ-45 port (10/100Mbps) | ||
| Network Function | HTTP TCP/IP UPNP RTSP UDP SMTP DHCP PPPOE DDNS SNTP FTPP2P | ||
| Remote Operation | Monitoring PTZ control playback system setting file download log information | ||
| Smart Phone Monitoring | iPhone iPad Android Windows Phone Blackberry | ||
| Hard Disk | |||
| Hard Disk | 1SATA ports up to 4TB | ||
| HDD Management | Hard disk hibernation technology HDD faulty alarm & raid | ||
| Auxiliary Interface | |||
| USB | 2 ports USB2.0 | ||
| RS485 | Standard 485 half duplex PTZ control | ||
| General | |||
| Power Supply | DC48V/1.35A(POE) | ||
| POE function | 4 CH ;IEEE 802.3af | ||
| Power Consumption | 6W (without HDD&POE) |
|
|
| Working Environment | -10°C~+55°C /10%~90%RH | ||
| Dimensions(W×D×H) | 215mm×235mm×45mm | ||
| Weight | 1.5KG (without HDD) | ||
| Installation | Desktop type | ||

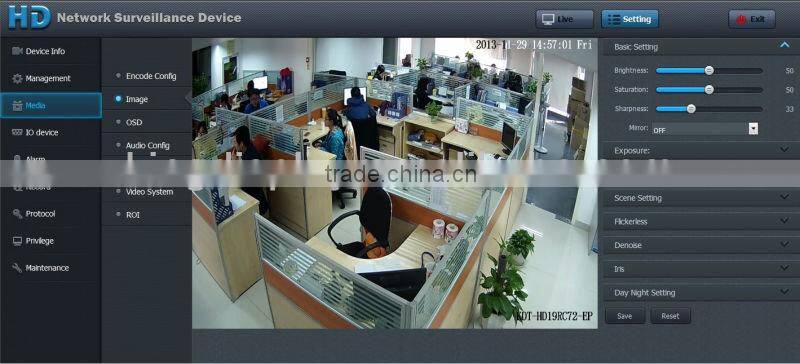

IE Interfaces

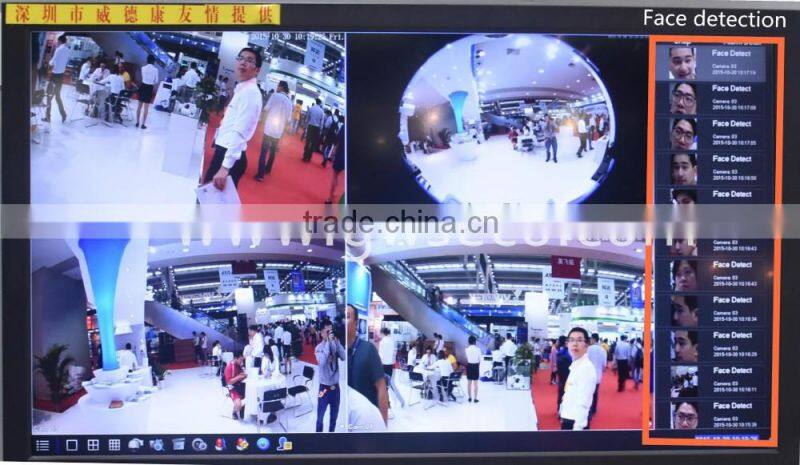

Face Detection

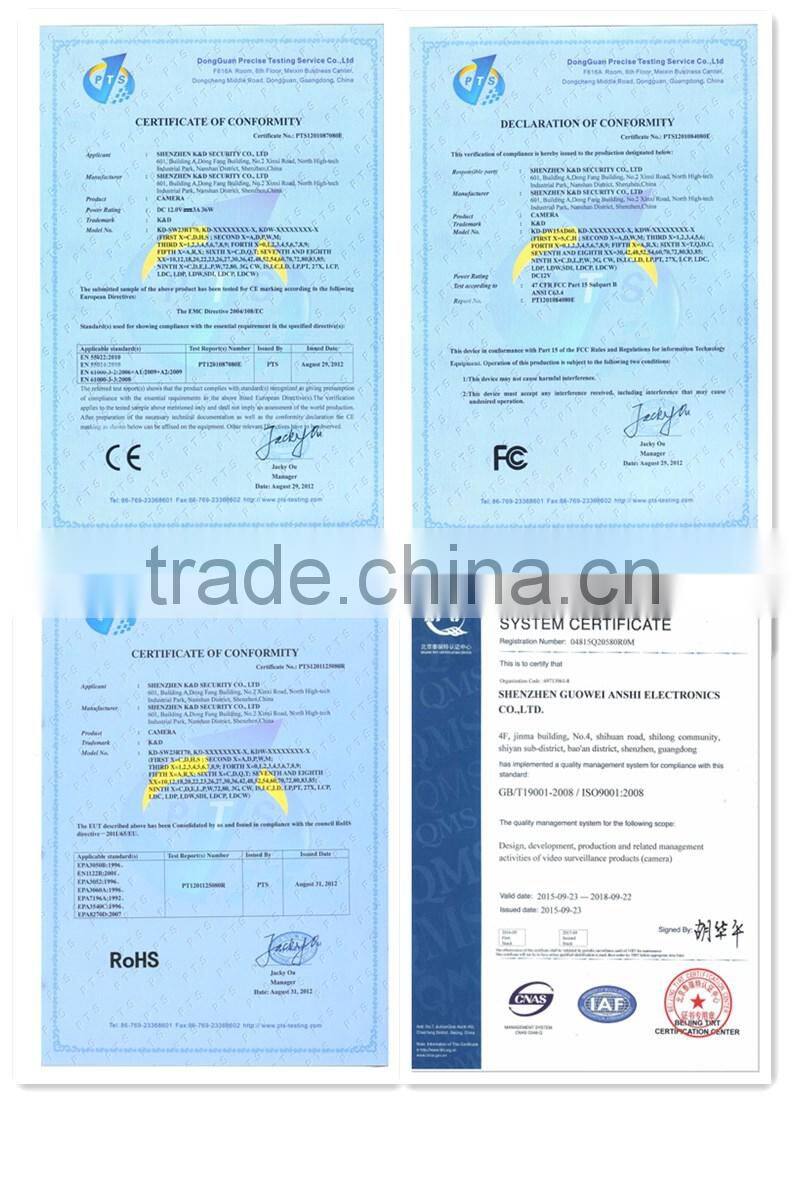

Certifications
