Acceleration Mechanical Impact Test Equipment
Acceleration Mechanical Impact Test Equipment Application:
Acceleration mechanical impact test equipment is mainly used for small products for impact test, to assess the product’s ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Acceleration Mechanical Impact Test Equipment Features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;
Acceleration Mechanical Impact Test Equipment Technical Parameters:
Model |
SS-5 |
SS-10 |
SS-25 |
SS-50 |
SS-100 |
SS-200 |
SS-400 |
|
Load Capacity (Kg) |
5 |
10 |
25 |
50 |
100 |
200 |
400 |
|
Table Size (mm) |
120x120 |
200x200 |
350x350 |
450x450 |
650x650 |
750x750 |
850x850 |
|
|
Pulse Acceleration (m/s2) |
Half Sine Wave |
150~15000 |
150~15000 |
150~15000 |
150~6000 |
150~6000 |
150~3500 |
150~1500 |
|
Trapezoid Wave |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~1000 |
300~500 |
|
Sawtooth Wave |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~1000 |
150~500 |
Pulse width |
Half Sine Wave |
0.5~18 |
0.6~18 |
0.8~25 |
1.5~30 |
1.5~30 |
2~30 |
6~30 |
|
Trapezoid Wave |
6~12 |
6~12 |
6~18 |
6~12 |
6~12 |
6~12 |
6~12 |
|
Sawtooth Wave |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
6~18 |
Drive Mode |
Mechanical drive |
Hydraulic drive |
||||||
|
External Dimension WxHxD (mm) |
800x2200x900 |
800x2200x900 |
850x2250x950 |
1000x2600x1300 |
1100x2700x1400 |
1300x2700x1600 |
1300x2700x1650 |
|
Weight (Kg) |
600 |
700 |
900 |
2600 |
3300 |
4000 |
4500 |
|
Hydraulic Oil |
No #46 hydraulic oil |
|||||||
Power |
AC 380V 50/60HZ |
|||||||

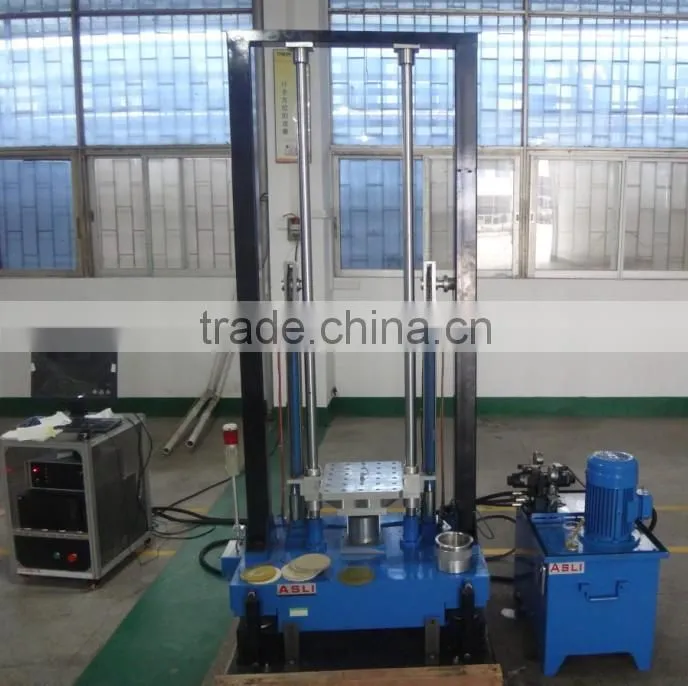

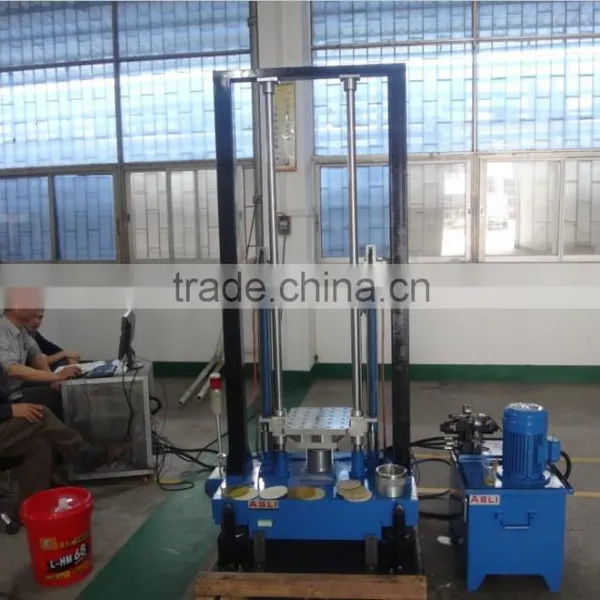

Pictures for Acceleration Mechanical Impact Test Equipment :
...
