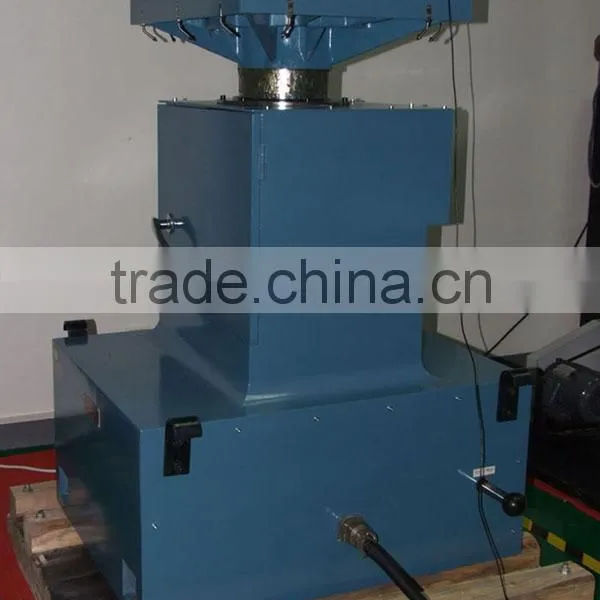

Equipment for Mechanical Shock and Impact Testing
Mechanical Shock and Impact Testing /application:
It is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Machine for Mechanical Impact Testing / features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.
Mechanical Shock and Impact Testing /technical parameters:
Model |
MS-50 |
MS-100 |
MS-200 |
MS-500 |
MS-800 |
|
Max. Loading (kg) |
50 |
100 |
200 |
500 |
800 |
|
|
Peek Value Acceleration( m/s2) |
50 to1200 |
50 to1000 |
50 to1000 |
50 to 500 |
50 to 500 |
|
Pulse Time (ms) |
20 to 3 |
20 to 3 |
20 to 3 |
20 to 3 |
20 to 3 |
|
|
Shock Frequency (times /min) |
10 to 80 |
10 to 80 |
10 to 80 |
10 to 80 |
10 to 80 |
|
Bench Size (mm) |
500×700 |
700×700 |
700×700 |
800×800 |
1000× 1000 |
|
|
Max. Dropped Height (mm) |
60 |
60 |
60 |
60 |
60 |
|
|
Impact and Crush Wave |
Half Sine wave, (trapezoidal wave, and sawtooth wave, square wave optional) |
|||||
|
External Dimension W×H×D (mm) |
800×1300× 1000 |
800×1300× 1000 |
850×1350× 1100 |
1000×1300× 1900 |
1000×1300× 1900 |
|
Weight (Kg) |
1100 |
1250 |
2000 |
3000 |
3500 |
|
Protection Device |
Door protection, over-load protection, zero signal protection |
|||||
Power |
AC 220V 50/60HZ; AC 380 V 50/60HZ |
|||||
|
Environmental Conditions |
Temperature: 25°C±5.0°C humidity: <85%(25°C) |
|||||
Machine for Mechanical Impact Testing,Mechanical Shock and Impact Testing,Mechanical Shock and Impact Testing
