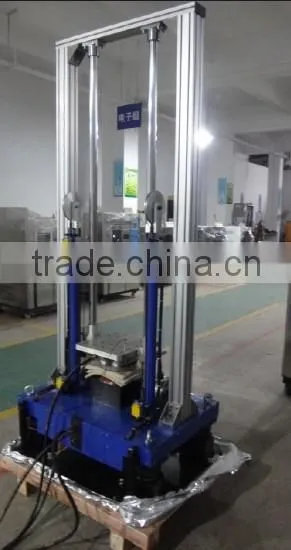

Hydraulic Shock Material Testing Machine
- 50 Set / Sets per Month
- ShenZhen/HongKong
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ASLi | Model Number: | SS-Series |
Power: | Electronic | Usage: | Impact Testing Machine |
Product Description
Hydraulic Shock Material Testing Machine Application:
Acceleration Mechanical Shock Tester is mainly used for small products for impact test, to assess the product’s ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Hydraulic Shock Material Testing Machine Features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;
Hydraulic Shock Material Testing Machine Technical Parameters:
Model | SS-5 | SS-10 | SS-25 | SS-50 | SS-100 | SS-200 | SS-400 | |
Max. Load Capacity (Kg) | 5 | 10 | 25 | 50 | 100 | 200 | 400 | |
Bench Size (mm) | 120×120 | 200×200 | 350×350 | 450×450 | 650×650 | 750×750 | 850x850 | |
Acceleration of shock peak value (m/s2) | Half Sine Wave | 150~15000 | 150~15000 | 150~15000 | 150~6000 | 150~6000 | 150~3500 | 150~1500 |
Trapezoid Wave | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~500 | |
Sawtooth Wave | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~500 | |
Pulse width | Half Sine Wave | 0.5~18 | 0.6~18 | 0.8~25 | 1.5~30 | 1.5~30 | 2~30 | 6~30 |
Trapezoid Wave | 6~12 | 6~12 | 6~18 | 6~12 | 6~12 | 6~12 | 6~12 | |
Sawtooth Wave | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | |
Drive Mode | Mechanical drive | Hydraulic drive | ||||||
External Dimension WxHxD (mm) | 800x2200 x900 | 800x2200 x900 | 850x2250 x950 | 1000x2600 x1300 | 1100x2700 x1400 | 1300x2700 x1600 | 1300x2700 x1650 | |
WEIGHT (Kg) | 600 | 700 | 900 | 2600 | 3300 | 4000 | 4500 | |
Hydraulic Oil | No #46 hydraulic oil | |||||||
Power | AC 380V 50/60HZ |
