Mechanical Shock and Impact Tester

Name: Mechanical Shock and Impact Tester
Brand: ASLi
SKU: 110166459

US$ 25,000 - 90,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ASLi

Model Number:

Dongguan ASLi Test Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ASLi

Model Number MS

Power Other, Electronic, AC 380 or AC 220V

Usage Impact Testing Machine

Mechanical Shock and Impact Tester

1. Application:

Mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic

components, electronic circuit boards and other environmental testing.

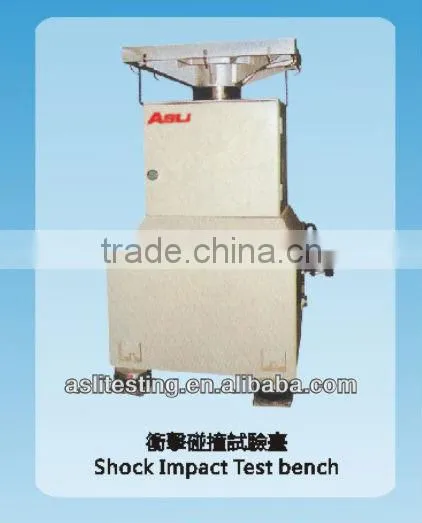

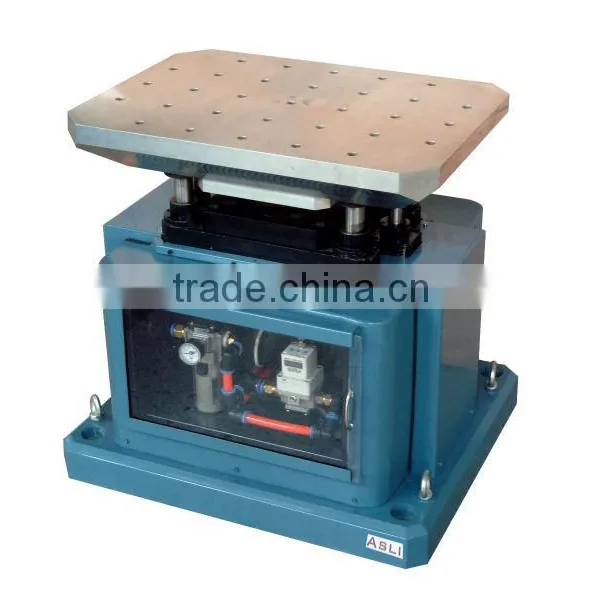

Shock Test bench

Shock and measure controller

2. Features:

1. Working bench with perfect structure, good uniformity of bench's acceleration.

2. High reliable of system, safety device.

3. The saw-tooth wave and trapezoidal wave, etc. extensible.

4. Capacity of crash and impact test function.

5. Optoelectronic feedback.

3.Technical Parameters:

Model	MS-50	MS-100	MS-200	MS-500		MS-800
Max. Loading (kg)	50	100	200	500		800
Peek Value Acceleration( m/s2)	50~1200	50~1000	50~1000	50~500		50~500
Pulse Time (ms)	20~3	20~3	20~3	20~3		20~3
Shock Frequency ( times /min)	10~80	10~80	10~80	10~80		10~80
Bench Size (mm)	500×700	700×700	700×700	800×800		1000× 1000
Max. Dropped Height (mm)	60	60	60	60		60
Impact and Crush Wave	Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional)
External Dimension W×H×D (mm)	800×1300× 1000	800×1300× 1000	850×1350× 1100		1000×1300× 1900	1000×1300× 1900
Weight (Kg)	1100	1250	2000		3000	3500
Protection Device	Door protection, over-load protection, zero signal protection
Power	AC 220V, 1 Φ 3 Lines ,50/60HZ; AC 380 ,3 Φ 5 Lines,50/60HZ
Environmental Conditions	Temperature: 25°C±5.0°C humidity: <85%(25°C)
