Specifications

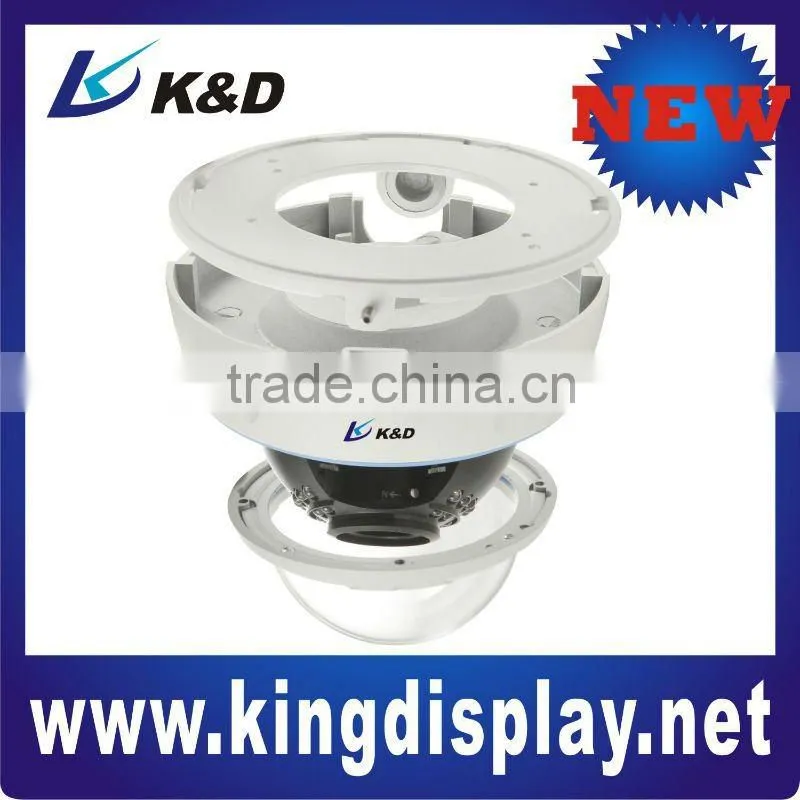

Dome Type;Video Resolution: D1, HD1, CIF, QIF; 4-9mm varifocal lens; WIFI/Wireless; Vandal-proof; Waterproof IP66; CE, FCC. RoHs2012 New Arrival Vandal-proof Waterproof IR IP Dome Camera
1/3"SONY SUPER HAD II CCD
Minimum illumination: 0.1 Lux (color), 0Lux(B/W)@IR on
Video Resolution: D1, HD1, CIF, QIF
Build in 4-9mm varifocal lens, Vandal-proof
Waterproof IP66
Wireless/WIFI

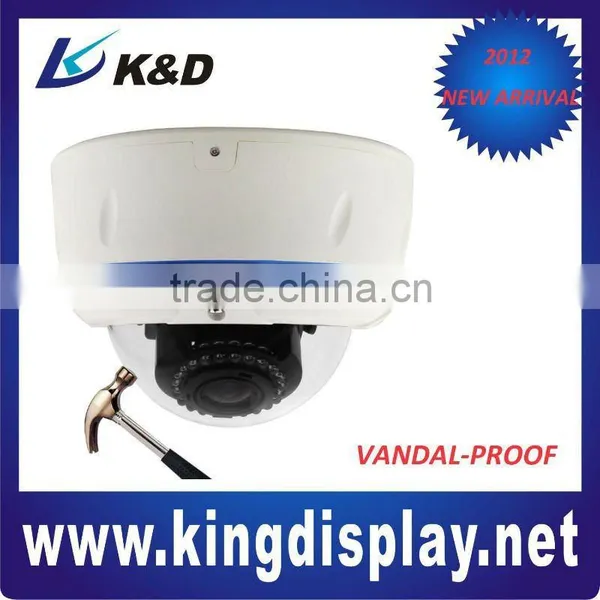

Vandal proof design, to meet specific site needs
KD-DD56RD48 |
480TVL, 0.3Lux (color)@F1.2 ,0Lux(B/W)@IR on, Wired |
KD-DD56RD48-P |
480TVL, 0.3Lux (color)@F1.2 Wired; with POE module, IEEE 802.3af standard |
KD-DD56RD48-W |
480TVL, 0.3Lux (color)@F1.2 Wireless Supports 802.11b/g Standard, Working Frequency:2.4GHz Maximum wireless distance :100 meters Supports WEP,WPA,WPA2 |
KD-DD56RD60 |
600TVL, 0.1Lux (color)@F1.2 ,0Lux(B/W)@IR on, Wired |
KD-DD56RD60-P |
600TVL, 0.1Lux (color)@F1.2 Wired; with POE module, IEEE 802.3af standard |
KD-DD56RD60-W |
600TVL, 0.1Lux (color)@F1.2 Wireless Supports 802.11b/g Standard, Working Frequency:2.4GHz Maximum wireless distance :100 meters Supports WEP,WPA,WPA2 |
Image sensor |
1/3" Sony Super HAD II CCD |
Lens |
Build in 4-9mm vari-focal lens |
IR Distance |
30pcs LED, IR distance15-20m, |
Video Compression |
H.264 Main Profile @Level 3/MJPEG |
Video Definition |
PAL:176X144(QCIF),352*288(CIF),704*288(2CIF),704*576(D1) NTSC:176X120(QCIF),352*240(CIF),704*240(2CIF),704*480(D1) |
Video Frame Rate |
PAL: 1-25fps NTSC:1-30fps |
Video Bitrate |
32Kbps~16Mbps,Supports CBR/VBR |
Audio Compression |
G.726 ,8 bits/32 bits, G.711 A/U |
Audio Output |
1channel, linear output, |
Audio Input |
1 channel external MIC interface( internal sound pick-up) |
Title OSD |
Supports channel name, date, and video stream information overlay; OSD location is adjustable |
TF Card Interface |
Support Video and Snapshots stored ,SD2.0 SDHC standard and maximum capacity:32GB |
Network Interface |
Self-adaption 10/100Mbps RJ45 port |
Network protocol |
TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP |
ONVIF agreement |
Support |
Serial port |
1 channel RS485 |
Alarm Input |
1channel input, NO/NC modes adjustable |
Alarm Output |
1 channel output, 120VAC 1A/24VDC 1A |
E-mail Alarm |
Support |
FTP Protocol |
Support |
RTSP Protocol |
Support |
Mobile Monitor |
Supports smart mobile monitor that is based on Windows Mobile, Symbian , Android and iPhone platforms |
Working Temperature |
-10°C - +55°C |
Working Humidity |
0% - 90% |
Power Input |
DC12V/1.0A |
Power Consumption |
9W (MAX) |
Dimension |
Φ155 mm x126mm |
Net weight |
1.5kg |
