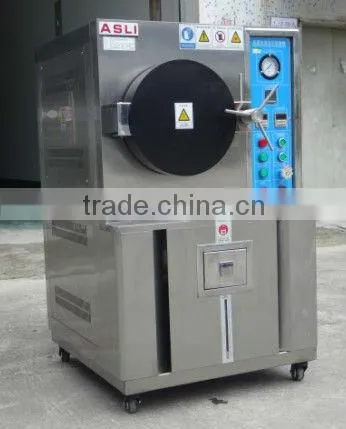

High temperature high pressure un-saturated steam chamber
1. Application:
un-saturated steam chamber is widely applied to the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
2. Safety device:
1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box’s pressure higher than the machine’s undertake value, it will self-relieve.
3. Double overheat protection device: When inner box’s temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box’s cover is made of aluminum alloy, can protect the worker from scald.
3. Features:
1.Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box’s temperature reached the setting value, then start to time to ensure the test complete.
5.Accurate pressure: temperature chart always shows the inner box’s pressure and relative humidity.
4.Technical parameters:
Model |
HAST - 25 |
HAST - 35 |
HAST - 45 |
HAST - 55 |
HAST - 65 |
||||
|
Internal Dimension Φ×D (mm) |
300×250 |
350×450 |
450×550 |
550×650 |
650×750 |
||||
|
External Dimension Φ×D (mm) |
850×1300×900 |
900×1350×900 |
1000×1480×1000 |
1150×1650×1200 |
1300×1800×1350 |
||||
Steam Temperature Range |
Steam Temperature Range: 100ºC~135ºC, (143ºC is optional) |
||||||||
|
Relative Pressure/ Absolute Pressure |
Relative pressure: display values indicated on the pressure gauge Absolute pressure: Value that add 100 Kpa based on display values indicated on the pressure gauge (The actual value in the inner box) |
||||||||
|
Comparison Table of Temperature, Humidity, Pressure |
|
||||||||
Steam Humidity |
70~100%R.H. steam humidity adjustable |
||||||||
Steam Pressure(Absolute Pressure) |
101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard) |
||||||||
Recursive Device |
Steam in forced-circulation |
||||||||
Safety Protective Devise |
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) |
||||||||
Accessories |
Two layers stainless steel plate |
||||||||
Equipment Capacity(L) |
17 |
43 |
87 |
155 |
250 |
||||
Power |
AC 220V(±10%), 1 ø3 Lines ,50/60HZ; AC 380 V(±10%) ,3ø 5 Lines,50/60HZ |
||||||||
5. Warranty:one year free warranty for whole set machine,lifelong time maintainance.
6. After-sale service:feedback within 2 hours after get the call.
7. Service:OEM service,Design service,Buyer lable service.
More pictures for un-saturated steam chamber :
