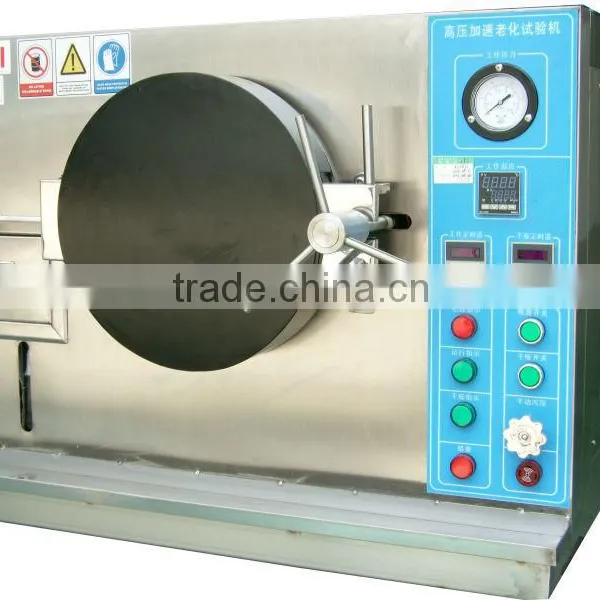

high pressure temperature desktop test chamber
1. Application:
Chamber Pressure and Temperature is widely applied for the testing of sealing property for multilayer circuit board, IC sealing package, LCD screen, LED, semiconductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
2. Safety Device:
1.Safety device for the pot: If the interior chamber is not closed , the machine can not start
2. Safety Valve: When the interior chamber pressure higher than the machine can undertake, it will self-relieve.
3. Double overheat protection device: When the interior chamber temperature is too high, it will alarm, and automatic cut off the heating power.
4. Cover protection: The inner the interior chamber lid is made of aluminum alloy, can protect from scald.
3. Features:
1. Automatic water supply.
2. Automatic operation to test process finished, easy to use.
3. LED digital temperature controller
4. LED digital timer, time signal terminal as standard function.
5. Easier Operation with Touch-Screen lnput
6. Accurate pressure: the interior chamber pressure and relative humidity are shown
7. Separate Steam Generator
8. Integrated silic gel door for long life using.
9.The interior chamber is mirror-polished , easy to clean
4. Technical parameters:
Model |
PCT - 25 |
PCT - 35 |
PCT - 45 |
PCT - 55 |
PCT - 65 |
|
|
Interior Dimension Φ×D (mm) |
300×250 |
350×450 |
450×550 |
550×650 |
650×750 |
|
|
Exterior Dimension Φ×D (mm) |
750×1200×800 |
800×1250×800 |
900×1380×900 |
1050×1550×1100 |
1200×1700×1250 |
|
|
Temperature Range of Steam (Operating temperature) |
(Temperature Range of Saturated Steam:100°C~135°C) , Temperature Range: 120°C,100Kpa;133°C 200 Kpa;(143°C is optional) |
|||||
|
Relative Pressure / Absolute Pressure |
Relative pressure: display values indicated on the pressure gauge Absolute pressure: pressure gauge value adds 100 Kpa (The actual value in the inner box) |
|||||
|
Comparison Table of Temperature, Humidity,Pressure of Steam |
pressure table |
|||||
|
Humidity of Saturated Steam |
100% relative humidity saturation steam humidity for PCT chamber, |
|||||
Steam Pressure(Absolute Pressure) |
101.3Kpa +0.0Kg/cm² ~ 2.0Kg/cm²; (3.0Kg/cm² is optional) |
|||||
Recursive Device |
Steam natural convection circulation |
|||||
|
Safety Protective Devise |
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function ) |
|||||
Accessories |
Two layers stainless steel plate |
|||||
|
Equipment Capacity(L) |
17 |
43 |
87 |
155 |
250 |
|
Power |
AC 220V 50/60HZ ; |
|||||
5. Warranty: one year warranty for whole set machine,lifelong maintainance.
6. After-sale service: Feed back within 2 hours after get the call
7.More pictures for high pressure temperature desktop test chamber :
