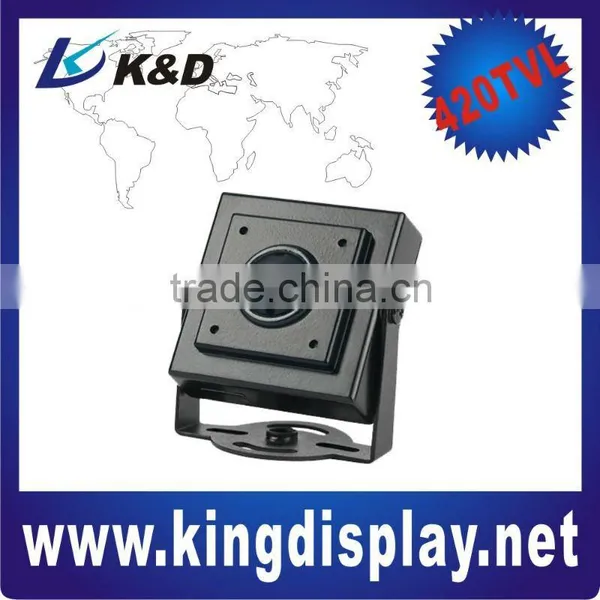

420TVL Mini Hidden CCTV Camera

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

K&D

Model Number:

KD-SM35XT42

Shenzhen Guowei Security Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name K&D

Model Number KD-SM35XT42

Type Other, Analog Camera, CCTV Analog Camera

Style Mini Camera

Sensor Other, 1/3"Sony Super Had CCD

Technology Pinhole

Special Features Other, 0.5 lux

Specifications

420TVL Mini Hidden CCTVCamera
1.420TVL ,1/3" Sony Super Had CCD ,0.5 Lux
2. 3.7mm pinhole lens ,3.5mm fixed lens(optional )

420TVL Mini Hidden CCTV Camera ,

1.420TVL ,1/3" Sony Super Had CCD ,0.5 Lux ,

2.3.7mm pinhole lens ,3.6mm fixed lens(optional ),size :33*33mm

Model	KD-SM35XT42
Image Sensor	1/3 " Sony Super Had CCD
Effective pixels	PAL: 512(H) x 582(V);NTSC: 512(H) x 492(V)
Horizontal resolution	420 TVL
Minimum illumination	Color:0.5Lux /F1.2
Resolution	Med-res.
Chip	SONY SS11
H. Sync Frequency	NTSC: 15.734KHz, PAL: 15.625KHz
V. Sync. Frequency	NTSC: 59.94 Hz, PAL:50 Hz
Synchronization	Internal
Back Light Compensation	Auto
Lens	3.7mm pinhole Lens , 3.6mm fixed lens (optional)
Gamma Correction	0.45
S/N Ratio	More than 48 dB (AGC off)
Video Output	1.0Vp-p/75Ω
Storage Temperature	-30oC ~ +60oC
Operating Temperature	-10oC ~ +55oC
Power Supply	DC12V
Power Consumption	110mA
Dimension	35mm x35 mm
Weight	240g
