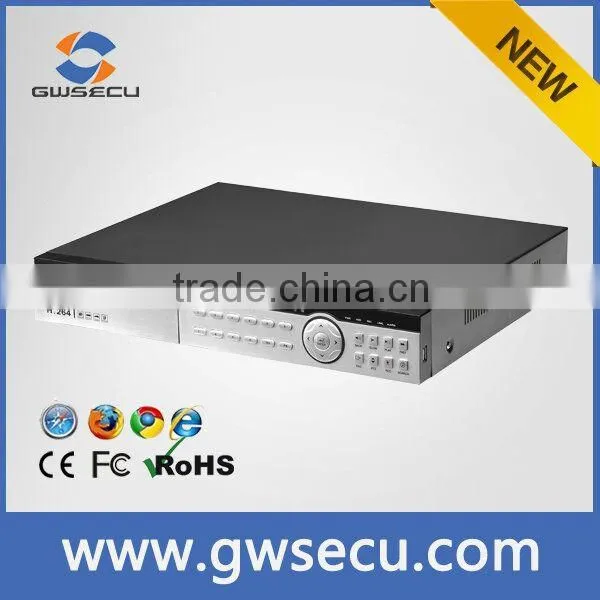

16CH AHD 1080P Standalone DVR
Specification:
Model |
KD-L6316H-AHD-80E |
System | |
Operating system |
embedded LINUX operating system |
System resource |
Multi-channel real-time recording synchronously multi-channel real-time playback multi-channel multi-user network operation USB back up. |
Display | |
Operation interface |
16 bit real color GUI interface support mouse operation |
Display screen |
(Take all analog input as an example others are depended on the selected channel mode) |
1/4/9 /16screen | |
Video | |
Image encode |
H.264(High Profile) |
Monitor quality |
VGA: 1080P ; HDMI: 1080P |
Playback quality |
Max support 1080P under DVR and NVR mode; Max support AHD 1080P under DVR mode: |
Encode capability |
16CH AHD 1080P (DVR mode) |
Decode capability |
8CH AHD 1080P (DVR mode) |
Multi-mode video input |
DVR mode :16CH*1080P/16CH*720P HVR mode:2CH*1080P(analog)+2CH*1080P(network) NVR mode :4CH*1080P/1CH*720P+8CH*720P/20CH*960H |
Motion detection |
Each channel can set 192 (16*12)detection area; can set multi-level of flexibility (for local analog channel only) |
Audio | |
Audio compression |
G.711A
|
Record and playback | |
Record mode |
Manual; alarm; motion detection; timing |
Local playback |
1-8ch playback synchronously; Under the mode of DVR Max support 8CH AHD 1080P playback synchronously |
Video search |
Time; date; event; channel search |
Storage and back up | |
Space occupation |
Video: CIF 4~5G/day*channel, D1 8~10G/day*channel 720P 20G/day*channel; 1080P 30~40G/day*channel |
Video storage |
Local HDD ; Network |
Back up mode |
Network backup; USB portable HDD; USB DVD-RW |
Interface | |
Video input |
16CH BNC |
Video output |
1CH VGA, 1CH HDMI |
Audio input |
16CH RCA |
Audio output |
1CH RCA |
Alarm input |
16CH |
Alarm output |
4CH |
Network port |
RJ45 10M/100M self-adaptive Ethernet port |
PTZ control |
1 RS485; support multi kinds of PTZ Protocol |
USB port |
2*USB2.0 |
HDD port |
4 SATA (each max support 4TB) |
Wireless port |
3G; WIFI(extension via USB port) |
Other | |
Tour |
Yes |
Remote controller |
Yes |
Power |
12V/6A |
Dimension |
430(Length) x 366(Width) x77 (Height) |
1. Onvif 2.42, High compatibility, Dahua,Hikivison, Nuuo, Axxon, Milestone, Geovision, Avigilon, Luxriot, See Tec, Aimetis, Genetec
2. GWSECU Strong mental housing; Same housing with different function of different system. H.265/H.264 1.3/2.0/3.0/4.0/5.0 Megapixel IP camera with Motorized lens/ Ultra WDR /low lux/ low stream,HD AHD,CVI,TVI for your choice.
3.GWSECU Perfect structure -heat disspating from bracket, Easy to put SD Card
4. Latest ARRAY LED--- work more longer life.
5.Support Multi-language, P2P and two-dimension Code.
6.User-friendly Web interface and CMS design, convinient for clients to use.
7.High quality control and full OEM Service (put your logo on camera and software, gift box, language.etc)
8.Fast shipping time(500pcs within 15 days).
9. Two year warranty and FREE online technical help with our engineer after sale.
Shenzhen Guowei Security Co., ltd.
Headquarters:
Add.: 6/F, Dong Fang Building 1, No.16 Gaoxin North 6th Road,North High-tech Industrial Park, Nanshan District, Shenzhen, China (518108)
Our Factory
Add.: 4/F, Jinma Building, Shihuan Rd, Shilongzai Community, Shiyan, Baoan District, Shenzhen, China
Zip Code: 518108
Branch:Hongkong Guowei Security co.,limited
Add.: Rm.602,Metro Center I,Lam Hing Street Kowloon Bay.N.T.
We provide 2 years warranty service for all products.
OEM service: Silk-print with brand, IE Browser Login, WEB GUI page, local CMS software with customize brand.
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, Westunion,L/C at sight or Alipay via Alibaba
2. Shipment
How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
3. What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
4. What kind of transportation methods you offer?
A. We usually choose the cheapest express delivery for our clients, such as DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.You could use your own forwarder if possible.
B. We also can deliver your goods by air and sea as your request.
