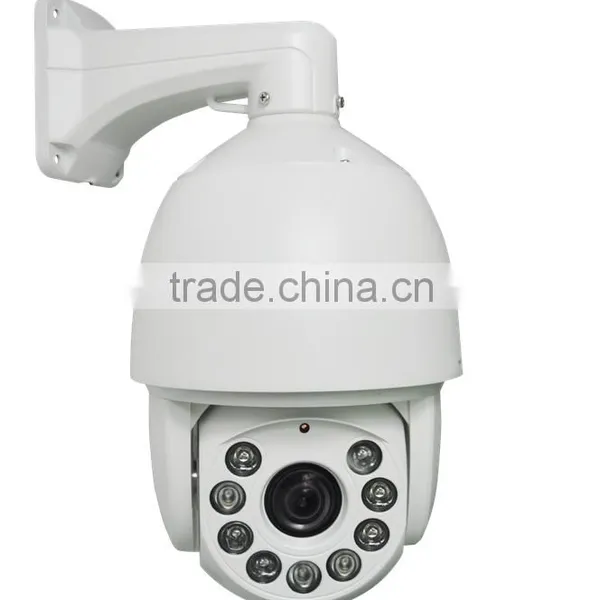

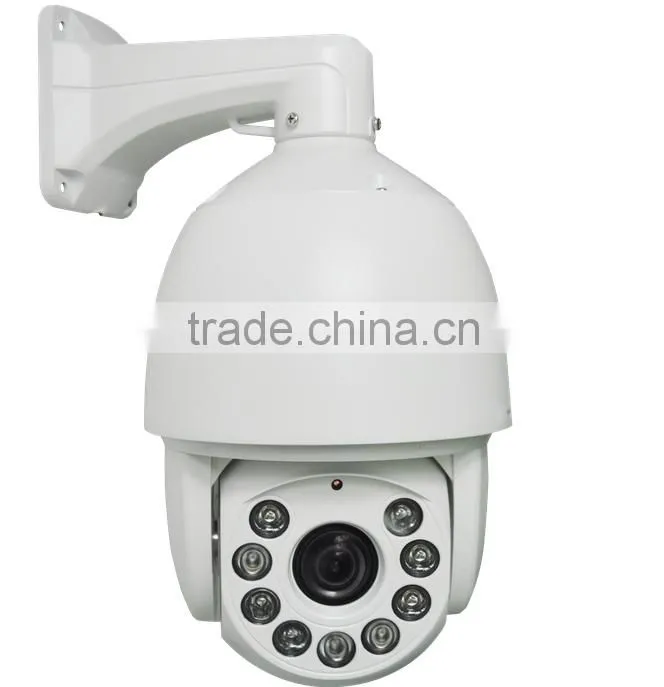

Help Center6" 2.0Megapixel 1080P PTZ Mini HD AHD IR120-150m High Speed Dome Camera
Related Products
-
1080P CCTV Bullet Camera,outdoor ir Network Camera,cctv Camera With DvrUS$ 1 - 20MOQ: 5 Pieces -
GWSECU Security Camera System Video Surveillance Cctv Camera,2mp AHD Cctv CameraUS$ 1 - 20MOQ: 5 Pieces
-
GWSECU 1080p Security System Cctv Camera,spy Cctv Camera With ir Waterproof Cctv CameraUS$ 1 - 20MOQ: 5 Pieces
-
GWSECU Security ip Cctv Camera.1080p AHD DVR CCTV Camera,outdoor Cctv CameraUS$ 1 - 20MOQ: 5 Pieces
-
GWSECU 2 Megapixel ir Security Cctv Camera With Sim Card Cctv CameraUS$ 1 - 20MOQ: 5 Pieces
GUOWEI is Dahua authorized company to sale their products to oversea.And we do it for many years.
We supply dahua ip camera, dahua nvr, dahua hdcvi camera/dvr,dahua dvr(please ask for latest price)
Please add +86- 188 7414 0007 to your phone contact & whatsapp
Application:
It can be widely used in wide rang environments which required monitoring, e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, and etc.
Product Overview:
>AHD 1080P 1/3" low illuminance cmos ,18x optical zoom
>Precision motor-driven, keen responsive, smoothly operation, the precision deviation less than 0.1 degree, the image does not have any vibration under any speed
>Support lightning protection, anti-surge, anti-surge function
>Protection Grade: IP66.
>The distance of video transmission up to 500 meters in theory
>Support English OSD menu.
Features:
>9PCS high-power infrared light, no flashlight, effective IR distance120m.
>360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area
>Pan control speed 0.6°~200°/s, tilt control speed 0.8°~75°/s
> Support 220 presets, Support 8 patrols, each patrol can contain up to 32 presets .Support 4 patterns, can totally record up to 10 minus.
> Support Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
>Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on)
We company integrates the design,development,production and sales of network video surveiillance products in Shenzhen nearly ten years.
GWSECU office building and factory
Attending the fair
Our products based on the high quality, quality testing superior.
Specifications
| Model | GW-HP53AC18-80-AHD |
| PTZ | |
| OSD menu | English OSD menu |
| IR Distance | 120-150M |
| Pan range | 360° endless |
| Pan speed | 0.6°-200°/s |
| Tilt speed | 0.8°-75°/s |
| Tilt range | 0°-90° (upport auto flip 180°) |
| Manual Speed | High Middle Low speed adjustable |
| Proportional Zoom | Support |
| Preset | 220 |
| Patrol | 8 each patrol can contain up to 32 presets |
| Pattern scan | 4 each pattern can record 100 actions |
| Scan between two presets | Support |
| Park Action | support selectable preset cruise pattern scan two- line scan automatic level |
| Zone scanning | Support |
| Video output | AHD format video output PAL or NTSC BNC |
| Zoom module | |
| Sensor | 1/3" Ex-view 2.0 Mega Pixel CMOS |
| Effective Pixels | 1080p 1920×1080 |
| illumination | Color:0.1Lux/F1.2 Black: 0.01Lux/F1.2 |
| Mirror image | Horizontal / vertical / horizontal + vertical / Off |
| Exposure mode | Auto / Manual |
| S/N Ratio | ≥50dB (AGC OFF Weight ON) |
| BLC | On / Off |
| Electronic Shutter | 1/30-1/30000s |
| Scanning System | Progressive scan |
| Synchronous | Internal Synchronization |
| Day and Night Mode | Support IR-CUT color to black |
| Focus Mode | Auto / Manual / disposable autofocus |
| Focus control | Auto/manual |
| Lens initialization | Internal |
| Optical zoom | 5.35±5%~96.3±5% mm 18 optical zoom |
| Angle of view | 51.85-2.89 °(Wide - Tele) |
| Min. Focal distance | 10mm(W)-1000mm(T) |
| penetrate the fog | support |
| Others | |
| RS485 Protocols | PELCO-DPELCO-P HikvisionDAHUA |
| Power supply/Control | DC 12V 4A |
| Power consumption | Day 10w MAX Night 30w MAX (without heater) |
| Working Temperature/Humidity | -20℃-60℃≤90%RH(frost less) |
| Protection Grade | TVS3000V lightning protection surge protection and voltage transient protection weather proof (for outdoor): IP66 |
| Package dimension(mm) | 300*300*470MM |
| Weight | 5.5kg (with zoom module) |
