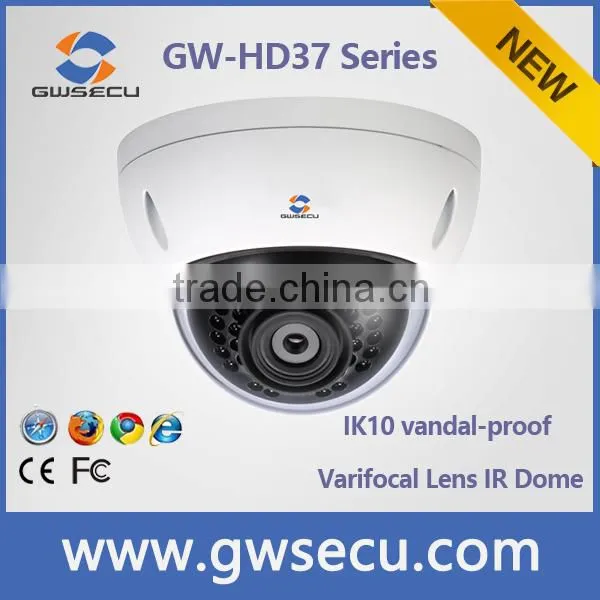

GWSECU IK10 vandalproof ir dome 1080p full hd AHD TVI CVI 4 in 1 camera
GWSecu had passed ISO9001 quality management system authentication and all products have been successfully certificated by CE, FCC, ROHS.
We have online English technician team to support customers!
We're reliable CCTV manufacturer started 2001.
GWSecu Camera Special heat-dissipate structure:
(Enabled cameras 7*24 stable performance)
This camera is 2Megapixel with 1920* 1080 effective pixels, using Sony Exmor sensor with digital WDR (Wide Dynamic Range), the housing has been certificed by IK10 vandalproof testing. Varifocal lens 2.8-12mm for different distance surveillance.
Full HD resolution 1920 x 1080P
Minimum illumination : 0.01Lux(AGC ON), 0Lux IR on
Video output AHD(1080P)/CVBS, adjustable
OSP antioxidant PCB, power/video dual lightning protection design
OSD menu control up the coaxial cable (UTC)
Day/Night (ICR), AWB, AGC, BLC, 2D/3D-DNR
Motion Detection, Privacy Mask, Mirror
24pcs §5(12mil) IR light , IR distance 30 meters
Varifocal lens 2.8-12mm F1.4, M14
IK10
| Model | GW-HD37RC80S-AHD | GW-HD37RC80C-AHD |
| Camera | ||
| Image Sensor | 1/2.9" 2.0 Mega pixels Sony CMOS | 1/2.7" 2.0 Mega pixels Aptina CMOS |
| Image Resolution | 1984(H) x 1225 (V) | 1928(H) x 1088(V) |
| Effective Pixel | 2.43MP | 2.1MP |
| Video Resolution | 1080P@25/30fps | |
| Electronic Shutter | AUTO, 1/50(60)-1/100,000sec | AUTO, 1/50(60)-1/50,000sec |
| System | PAL/NTSC | |
| Min. Illumination | 0.01Lux(AGC ON), 0Lux IR on | |
| Video Output | 1- BNC AHD/CVBS, adjustable | |
| Day/Night | Auto/Color/(B/W)/EXT (OSD switch) | |
| S/N Ratio | ≥80dB | ≥41dB |
| White Balance | Auto | |
| WDR | Digital WDR | |
| AGC/BLC | Support | |
| DNR | 2D/3D DNR, multi-levels adjustable | |
| OSD Menu | Multi languages OSD menu control up the coaxial cable (UTC) | |
| Language | English/ Simplified Chinese/Traditional Chinese /German/French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish | |
| Other | Defog, Motion Detection, Privacy Mask, Mirror, Flip | |
| IR Led | 24pcs §5((12mil)) IR light | |
| IR Distance | 30m | |
| Lens | ||
| Focal length | Varifocal lens 2.8-12 F1.4, M14 | |
| General | ||
| Power Supply | DC12V±10% | |
| Power Consumption | 0.72W/3.12W(IR ON) | |
| Operating Environment | -20ºC ~ +60ºC Humidity less than95%(Non-condensing) | |
| Dimensions(mm) | 119mm x 98mm | |
| Weight | 0.7KG | |
| Working Environment | -20°C~+60°C | |
| Transmission Distance | Over 300m via 75-3 coaxial cable | |
| Size | 275×120.5x90mm | |
| Weight | 0.8Kg | |
| Language | Chinese / English / German / French / Italian / Spanish / Portuguese / Russian / Dutch / Turkish / Poland | |
| Humidity | Relative humidity below 90% | |
We provide GWSECU private housing hd IP and AHD/CVI/TVI cameras, using exquisite metal housing with powder injection, latest IR Array lights with more efficiency and longer lifespan.
Part of our new products and housing as below:
| |
|
|
| 5Mp 30fps Sony WDR bullet | 5Mp 120db WDR Sony Box camera | 3Mp Motorized lens Bullet Camera |
| |
|
|
| 2Mp Speed Dome PTZ IP Camera | 16 ports PoE NVR with face detection |
Star Light HD-CVI Camera with color night view |
Part of GWSecu Camera Housing:
(All our private housing apply to IP Camer and AHD/CVI/TVI Cameras)
All our cameras and DVR/NVRs with online video demostration, and video recording. We would very love to share with you if interesting.
About us
Shenzhen Guowei Security Co., ltd is a national high - tech enterprise that integrates the design, development, production and sales of network video surveillance products.
GWSecu has a professional and experienced R&D team that well knows core technologies, pursuing products with reliability, complement and compatibility. To guarantee stable performance, GWSecu has strict control on design, raw material and processing of its products.
As a member of Onvif, Its IP Camera and NVR series have passed international ONVIF Profile S standards, perfectly compatible with China’s mainstream storage device suppliers (like Dahua, Hikvision etc.) and international platform (Milestone, Digifort etc.).
As an ISO certified professional HD IP CCTV Camera Manufacturer in China, "Quality First" was our principle. All GWSECU private housing cameras using our special heat-dissipate structure design, making sure all items with stable performance.
A: Raw Materials
Raw Materials sourced from trusted suppliers. Main raw materials like sensor, chipset, lens and infrared lights. We source from Sony, Ti and Aptina directly.
B: Assembling
As ISO factory, we have a perfect management system in conformity with 6S in manufacturing
management to ensure that factory is really safe and clean.
We also have all kinds of production and inspection equipment to maximize high-efficient production capacity while ensuring product quality.
C: Quality Test
GWSecu invests abundant capital in advanced testing equipments to ensure products quality.
Test including: Waterspray test, Constant temperature and moisture test, Transportation simulation test,
Salt spray test.
D: OEM & ODM
Customer LOGO can be printed on goods/color box/labels upon confirmed.
We attend worldwide exhibitions in Dubai, Las Vegas, Moscow, London, Germany, Thailand, South Africa. "Honest" and "Sincerity" is the principle we serve the customers.
Shenzhen GuoWei Security Co .,Ltd
CCTV Security manufacturer since 2001 / Focus on IP Security System for 8 years / ISO certificate factory
Head Office: 6/F, Dong Fang Building, No.16 Gaoxin North 6th Road, North High-tech Park, Nanshan District, Shenzhen
Factory Add: 4/F, Jinma Building, Shihuan Rd, Shilongzai Community, Shiyan, Baoan District, Shenzhen, China
We provide 2 years warranty service for all products.
OEM service: Silk-print with brand, IE Browser Login, WEB GUI page, local CMS software with customize brand.
FAQ.
1. Payment
What are the terms of payments you offer?
We accept payment via T/T, Paypal, Westunion etc
2. Shipment
How long will it takes to deliver goods?
We will deliver your goods within 7-10 working days after an order confirmed
3. What kind of packaging you offer?
We will pack the goods well with exporting packages and bubble wrap to make sure all goods in a good condition during storage and delivery.
4. What kind of transportation methods you offer?
A. We usually use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies.
B. We also can deliver your goods by air and sea as your request.
