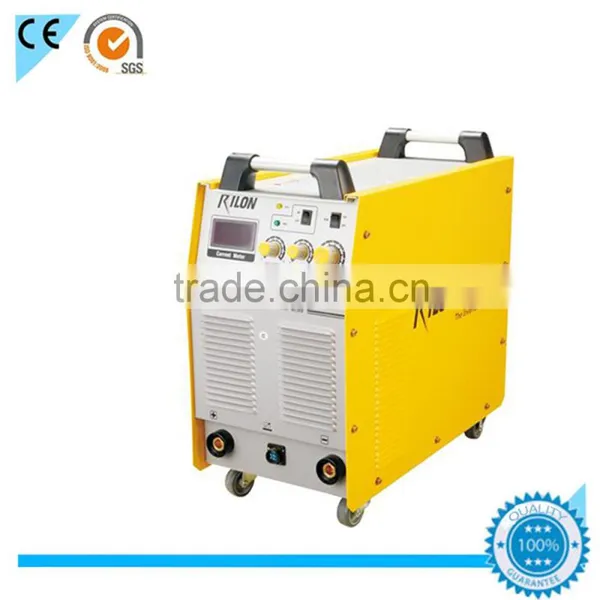

ZX7 400IJ2 three phases digital VRD system welding machine 400 amp
Robust and easy to use.
Digital instrument for the welding current.
On the front panel knob to adjust the parameter Hot Start.
On the front panel knob to adjust the parameter Arc Force.
Equipped with VRD system for your safety.
Auto-Protection against over-voltage, over-current and over-heated.
Equipped with four wheels to facilitate handling.
Socket for connecting the remote control.
This equipment is protected by a solid metal casing.
More specification of ARC ZX7 400IJ2 welding machine for you referrence:
| Name | ZX7 400IJ2 three phases digital VRD system welding machine 400 amp |
| Model | ZX7-420IJ2 customized |
| Input voltage | 380±15% in three phase |
| Frequency | 50/60 HZ |
Rated input power |
18.2 |
| Current / Voltage range (MIG/MMA,A/V) |
30/21.2-400/36 |
| 40℃,60% temporary load rate output (MIG/MMA,A/V) |
400/36 |
40℃,100% temporary load rate output (MIG/MMA,A/V) |
310/32.4 |
| Open circuit voltage(V) | 72 |
| Thrust control | 0-100 |
Open circuit losses |
100 |
Efficiency |
91% |
Power factor |
0.93 |
class of insulation |
H |
| Protection class | IP21 |
| Weight | 36KG |
| Size mm | 560*300*550 |
Welding Technology:

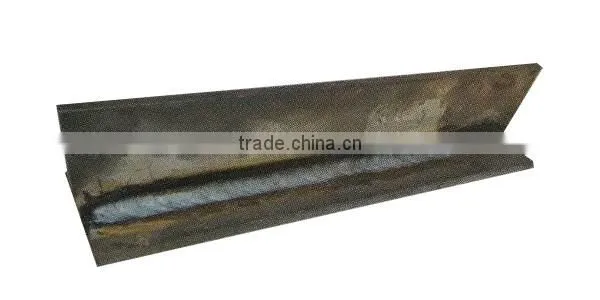

1.Manual electrode flat fillet welding:
Welding current:160A
Electrode model:J422,φ4.0mm
Plate type:8mm Carbon steel plate
2.Manual electrode fillet welding:
Welding current:80A
Electrode model:J507,φ2.5mm
Plate type:5mm Carbon steel plate
Application industry:
Shipbuilding, roads, Bridges, steel butt welding, welding, installation construction of petroleum and petrochemical, thermoelectric devices, pipe installation, mechanical manufacturing, boiler manufacturing.
More types of ZX7/ MMA/ ARC welding machine for you reference:
Our ARC ZX7 400IJ2 welding machine list will be packed In Carton With Foam Plastic Protected.
First plastic film inside
Then Packed by EPE foam
Free fumigation wooden carton outside
About us:
Nanning ChuanJun Welding Hardware Co., Ltd.founded in 2004,has been focused on welding equipment and accessory for more than 10 years. ChuanJun is member of the China Welding Association. Providing system services for enterprises needed.Our company mainly produce welding equipment, hardware and electrical equipment, building decoration materials, welding equipment leasing, and so on.
Our products below:
Welding machines: mma, mig, tig welders
Cutting machines: air plasma cutter, flame cutting machine, and CNC cutters.
Welding & cutting accessories: welding torch, cutting torch, cutting nozzle, conductive nozzle, protective cover, diverter, earth cable, gas regulator, pipe, gas bottle, electrode oven, welding rod drying box, welding helmet, protection gloves and glasses.
Welding material: kinds of welding wires and welding rod
Industrial tools: Bosch power tools, beveling machines, other hand tools.
