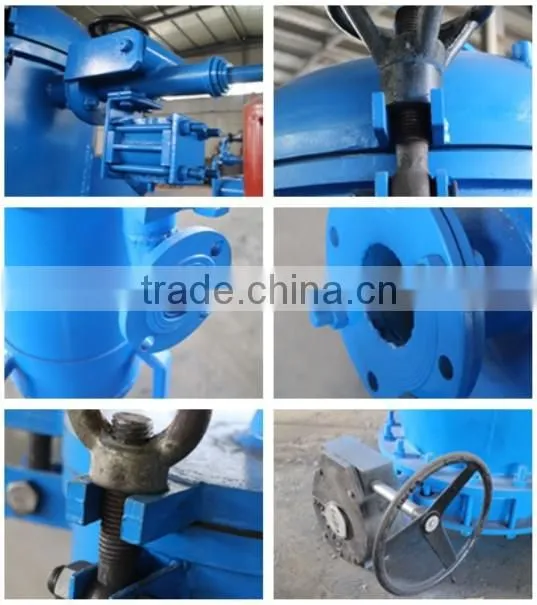

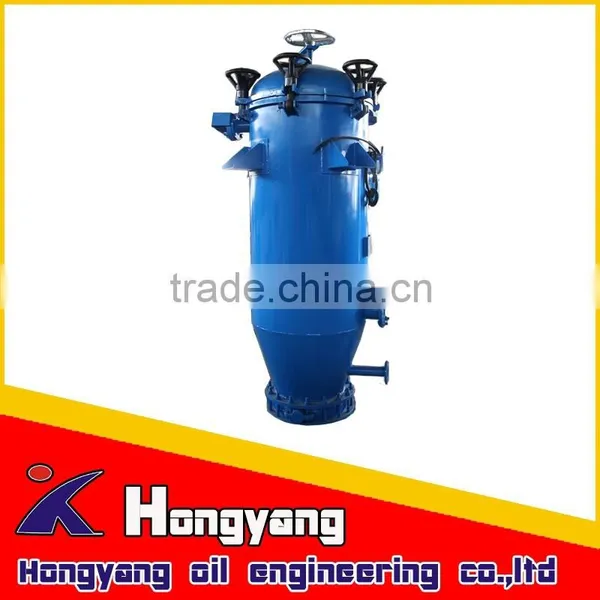

Help CenterVertical Leaf Oil Vibration Filter Machine
Related Products
-
Pressure Leaf Oil Filter MachineUS$ 1,250 - 3,500MOQ: 1 Set -
Edible Oil Filtering Filtration MachineUS$ 6,500 - 12,500MOQ: 1 Set
-
Mixing,mixed Oil FilterUS$ 1,050 - 1,350MOQ: 1 Set
-
Bag Type Oil Filter MachineUS$ 850 - 1,210MOQ: 1 Set
-
Vertical Leaf Oil Filter MachineUS$ 1,250 - 3,500MOQ: 1 Set
Vertical Leaf Filter Filtration Principle
Metal mesh + filter aid + pressure
Metal plates multi - seat type screen and frame composition.
Filter a variety of filter aid. Such as diatomaceous earth, clay, bleaching earth.
When the pressure difference,filter aid in the formation of filter cake on the screen,that is the filter.
Vertical Leaf Filter Structure feature
1.Unique design of the filter plate,without Filters and filter cloth,which can reduce filtration cost
dramatically.
2.Full closed filtering operation with no pollution, no loss of material.
3.Automatic left residue of vibration device for automated continuous operations.
4.Automatic valve slag, which can dramatically reduce labor intensity.
Vertical Leaf Filter Main Application
The products are mainly used for fluid precision filtration for oil, paint, pigment, food, beverage,
pharmaceutical, grease, chemical and other industries fluid, also for filtration aid and decolourant.
Petrochemical Industry:olyether, diesel, lubricating oil, white oils, transformer oils, ozokerite,
mineral oils and a variety of base oil.
Oil:crude oil, floating oil, gas oil, winter oil, stearin and other vegetable oils.
Coating:varnish and resin Paint, lacquer, dyes and so on.
Food:gelatin, sound juice,salad oil,starch,sugar,monosodium glutamate, fruit juice,milk and other
types of wines and beverages.
Pharmaceuticals:hydrogen peroxide, vitamins, such as glycerol
Organic Chemicals:Various organic acids, alcohols, such as fat, benzene, formaldehyde, ether.
Other:Various additives and water treatment.
Technical Parameters
Filtering area(m2) |
Barrel diameter(mm) |
Filter spacing(mm) |
Imput(mm) |
Output(mm) |
Overflow port(mm) |
Slag-drip opening(mm) |
Height(mm) |
Weight(kg) |
4 |
600 |
70 |
DN50 |
DN80 |
DN32 |
DN300 |
2100 |
480 |
6.5 |
650 |
70 |
DN50 |
DN80 |
DN32 |
DN400 |
2350 |
800 |
15 |
900 |
70 |
DN50 |
DN80 |
DN32 |
DN400 |
2450 |
1500 |
20 |
1100 |
75 |
DN50 |
DN80 |
DN32 |
DN500 |
2450 |
1800 |
25 |
1100 |
75 |
DN50 |
DN80 |
DN32 |
DN500 |
2800 |
2100 |
30 |
1200 |
75 |
DN50 |
DN80 |
DN32 |
DN600 |
2550 |
2500 |
40 |
1300 |
75 |
DN70 |
DN80 |
DN50 |
DN600 |
3400 |
3400 |
50 |
1400 |
75 |
DN80 |
DN80 |
DN50 |
DN600 |
3500 |
3800 |
60 |
1500 |
75 |
DN80 |
DN80 |
DN50 |
DN800 |
3600 |
4500 |
80 |
1600 |
80 |
DN80 |
DN80 |
DN50 |
DN800 |
3800 |
6000 |
Our Services
1.Parts purchased,assembly quality inspection,all-round quality management from manufacturing factories
directly,ensure the products pass rate of 100%.
2. Auto welding machines and professional heating treatment guarantee the quality of welding seam. High
quality equipment customized with preferential price, and provide timely.
3. Dedusting system, exhaust gas and heat recycling make the environment friendly and the consummation
lower.
4. Top engineer group and professional workers are the basic supports in satisfied designs and professional
production and installation for our customers.
5. Ensure long-term utilization of production line at one- time installation debugging acceptance. If damage
or trouble caused by the quality of equipment, we has the responsibility to change or maintain.
6. Free training technological operation to ensure the trained staff can operate independently.
