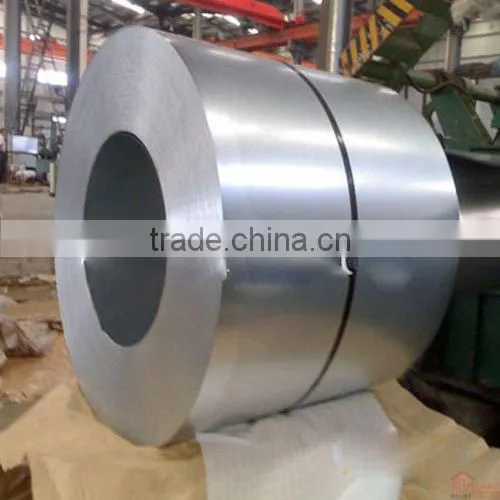

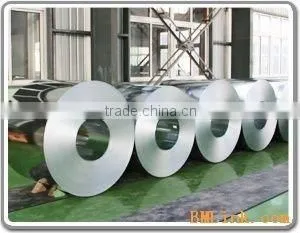

Pre-painted Galvanized Steel Coil

Surface structure

Characteristics

Application

Normal spangle (Z)

Under the common conditions, the galvanized zinc makes spangle after condensation.

Common usage

Finishing spangle (G)

Finish the galvanized sheet by finishing machine, and level off the spangles on the galvanized sheet.

Used as base lamina of color coated sheet.

Processing property

Yield stress

Tensile strength

Tensile stretch %

180^o cold bending

Processing property

Yield stress

Tensile strength

Tensile stretch %

180^o cold bending

Common PV

—

270-500

—

d=0, in good condition, non-dezincing.

Deep pressing SC

—

270-380

≥30

d=0, in good condition, non-dezincing.

Mechanical articulation JY

—

270-500

—

d=0, in good condition, non-dezincing.

Ultra-deep pressing SC

—

270-380

≥30

d=0, in good condition, non-dezincing.

Structure JG

≥240

≥370

≥18

d=0, in good condition, non-dezincing.

—

—

—

—

—

Production

Galvanized steel coil

 Thickness

0.18mm-2.5mm

Width

1000mm-1500mm

Coil`s ID

508mm-610mm

Coil`s OD

Max 1500mm

Coil weight

4 tons --10 tons

Zinc coating

50-270g/m2

Grade

A653/A526-90, G3302-2005/SGCC/SGCH/SGCD1/SGCD3, DC51D+Z/EN10142-92/EN10327-2004/EN

Technique

Hot rolled

Surface treatment

Chromating & oiled, Chromated & non-oiled ,size of spangle as required

Surface Processing

Regular Spangle, Minimized Spangle, Zero Spangle, Bright Spangle

Application

The construction industry such as the roof structure, keel, grill, clapboard, ceilings and fire shutter doors. the light industry, the automobile, agriculture, animal husbandry, fishery, casing of household electronic application, civilian smoke stack ect

Packaging Detail

Anti-rust paper on the surface of the steel sheet coil, then PVC wrapping paper outside the anti-rust paper, then we use the galvanized steel strip to protect the precision cold strip coil. or According to customers' requirements.

Delivery Detail

15-20 days upon receipt of prepayment
