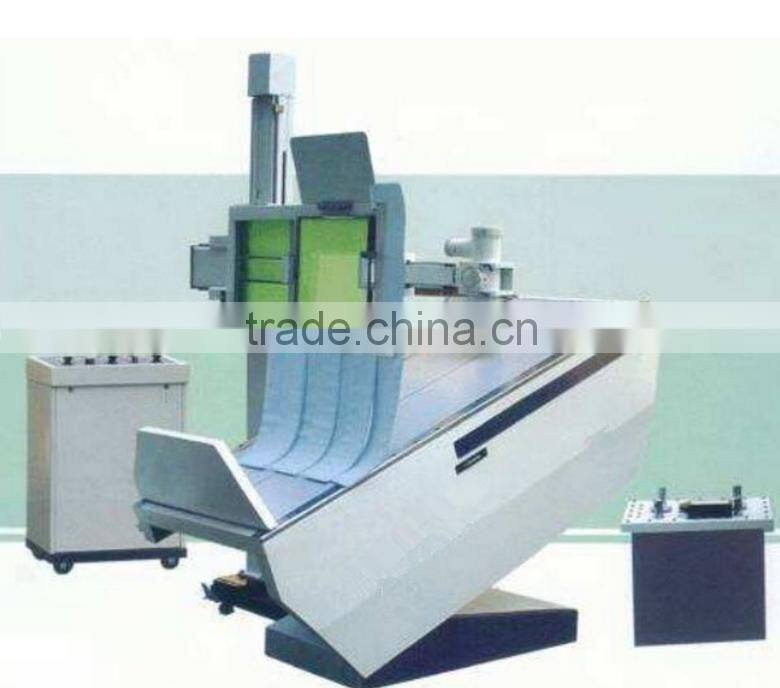

100mA Radiology and Fluoroscopy Equipment & Accessories

 100mA Radiology and Fluoroscopy Equipment & Accessories

Use of the 100mA Medical Xray machine:

Fluoroscopy

Digestive track spot film radiography

General radiography

Filter-ray device radiography


Main Characteristics of the 100mA Medical Xray machine:

1. This 100mA Medical Xray machine is Single bed and single tube.

2. Design according to the electric medhanism of middle-size machine. The function is full and

reasonable.

3. The high-tension system is of march-past structure. Equipped with afullwave rectification high-

voltage generator

and ifdependent X-ray tube unit, with large output power and reliable and stable operation.

4. Supply voltage V, roentgenoscopy, photograpy kV and stepless adjustable.

5. Equipped with the manostat for filament of X-ray tube and the spacecharge compensator as to

ensure the stable

and accurate output.

6. Equipped with the capacity limitation and protection circuit and kV mA s interlock limitation and

protection.

7.Adopt the digital circuit timer, grade according to R10 prioritycoefficient and can control time

exactly.

8. Diagnostic bed id of electric back rotation and is equipped with vibrating filter-ray device.

9. The spot film device of fluoroscent screen of the 100mA Medical Xray machine can hole the film

jecket of various

sizes and can make the photograpy of full-film and half films separately.

10. The upright post of the 100mA Medical Xray machine has the bottom track only, which is easy

while instalation.

Main Technical parameter:

1.Power supply:

Adjustable range:With power supply 380V 340V-420V;With power supply 220V 195V-250V

2.Fluoroscopy:

Adjustable range of tube voltage:50~95kV (Can adjust continuously)

Adjustable range of tube current:0.5~5mA (Can adjust continuously)

3.Radiography:

Adjustable range of tube voltage:50~100kV (Can adjust continuously)

Adjustable range of tube current:Small focus: 50mA;Big focus: 50, 100, 150 and 200mA

Tube current of spot-film:150mA (fix)

Adjustable range of time:0.04~6.3s,23 grades together

4.High-voltage Generator unit:

Max. DC output voltage:100kV

Max. DC output current:200mA at instant;5mA at running

5.X-ray tube:

Focus:1mm×1mm,2mm×2mm

Rotary angle:+90°~0°~-5°

Move range of gastrointestinal spot-film device (fluorescent screen):


Pressure direction: 300mm


Horizontal direction: the center of diagnostic bed moves left(right):±80mm


Vertical direction: 400mm

6.Diagnostic bed:

Ray-filter for fluoroscopy:Manual single blade

Distance between focus and bed face:


At fluoroscopy and gastrointestinal radiography: 400mm(fix)

Ray-filter tube (device) for radiography (fix X-ray field):


Big (rectangle):14"×17"


Middle (rectangle):10"×12"     Distance between focus and film=1m


Small (circle):φ5"

  Packaging Details: Standard export packing
