Help Center2 Port External Air Operated Solenoid Valve
Related Products
-
Bi-Directional Solenoid ValveNegotiableMOQ: 100 Pieces -
2 Port Direct Acting High Orifice Solenoid ValveNegotiableMOQ: 100 Pieces
-
3 Port Direct Acting Normally Closed Solenoid ValveNegotiableMOQ: 100 Pieces
-
Universal Solenoid ValveNegotiableMOQ: 100 Pieces
-
2 Way High Pressure ValveNegotiableMOQ: 100 Pieces
Specifications
Pressure : Up to 20 barMedia : Air, GAses,Water, Vacuum, Oil
Application : Vacuum Breaking
Make : Rotex

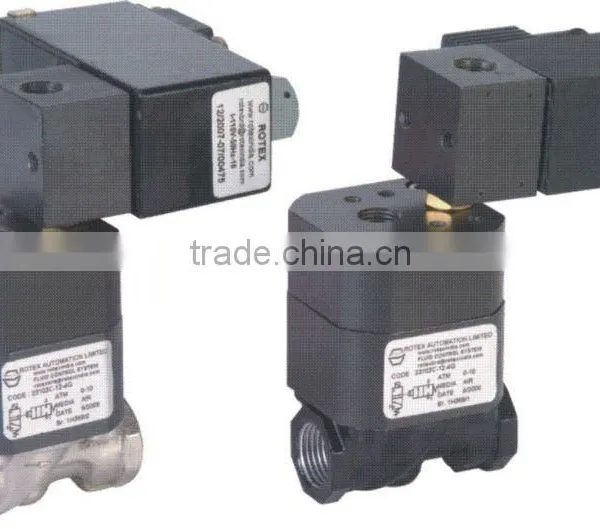

2 Port Isolated Piston External Air Operated Normally Closed Solenoid Valve
Features :
- Bubble tight shut off.
- Vibration resistance to 9g.
- Suitable for high speed cycling.
- Speed up to 400 cycles/ min.
- Life >10 million cycles.
SPECIFICATIONS :
Model No. |
Pressure Range |
Valve Condition |
23103 |
0 - 20 bar |
Normally Closed |
| Type | 2 Port, 2 Position |
| Orifice Size | 12, 20, 25, 40, 50 mm |
| Fluid / Ambient Temp | - 20 °C to 80 °C |
Operating Voltage : A.C : D.C : |
24, 110, 220, 240 (50 Hz / 60 Hz) 6, 12, 24, 48, 72, 110, 220 |
Power Consumption : Size 1 coil : Size 2 coil : |
6 W 11 W |
| Body Material | Powder Coated Die-Cast Aluminium, CF8M, Brass |
| Guide Assembly | SS 304 |
| Plunger, Insert | SS 430 |
| Shadow Ring | Copper / Silver / None |
| Spring | SS 302 |
| Seat, Seals | NBR, Viton, EPDM |
| Fasteners | SS 304 |
Enclosure:
1. General Purpose Flying lead / Plug-in 2. Weather-Proof: Flying lead & Plug in type, Terminal Box as per IS 13947 3. Explosion-Proof with Junction box as per IS 2148 group I, IIA, IIB and IIC 4. Explosion-Proof with Junction box as per ATEX, INMETRO, CE and UL in process) available
Media : Air, Inert Gases, Water, Vacuum, Free Flowing Liquid, Oil, Diesel, Kerosene, LPG, Furnace Oil
Application :
Fuel line suit off Vacuum Breaking
