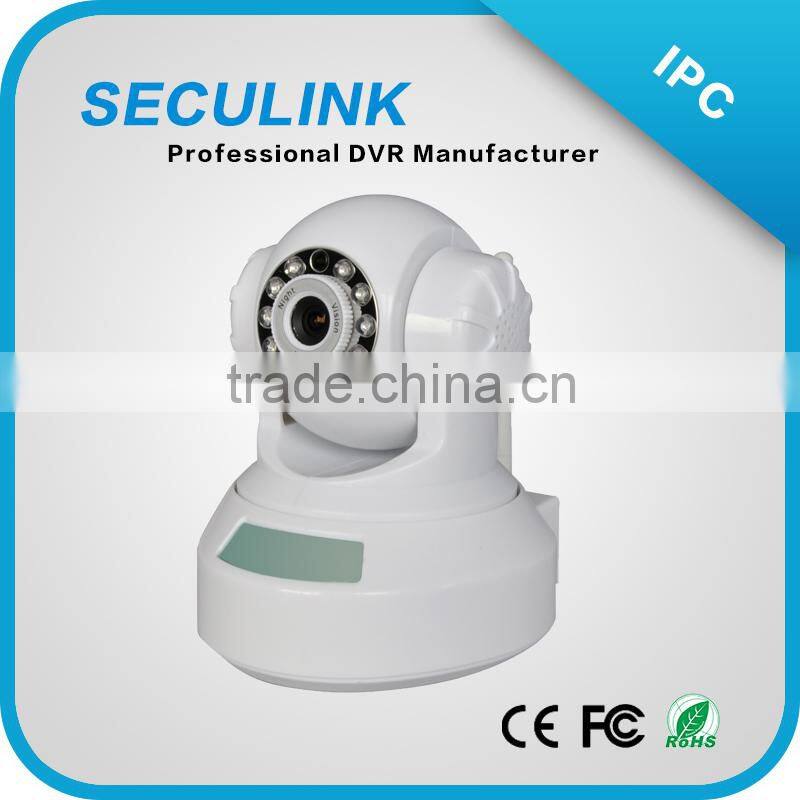

Micro SD/TF Card camera H.264 Security Camera Micro SD/TF Card ip wifi camera
Feature :
1) 4mm Lens, H.264 CMOS 1.0MP,
2) Support Onvif, RTSP protocol, Double stream.
3) Support up to 64G TF card memory
4) Built-in IR-CUT , 10m IR distance
5) P:270°,T:80° ,3dBi WiFi antenna
Specification:
Model |
R10 |
Pixel |
1.0 megapixel |
Image Sensor |
1/3" CMOS |
Min. Illumination |
IR ON 0Lux |
Lens |
HD 4MM |
Lens interface |
CS |
Day&Night |
IR-CUT |
Video Compression |
H.264 High Profile, JPEG Screenshot |
Main/Extra Stream |
720P/D1 |
Video output bitrate |
32Kbps~16Mbps |
Audio Compression |
G.711a |
Image | |
Max. Resolution |
1280*720 |
Frame Rate |
25fps( 1280*720 ) |
Image Setting |
Saturation, Brightness, Contrast adjustable through Client software or web server |
Network Function | |
Storage |
network storage, TF card storage(optional) |
Intelligent Alarm |
Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error |
Protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE,SMTP,NTP,RTSP |
Basic |
Reset button, Anti-flicker, Dual stream, Heartbeat, Password protection |
NVR/HVR |
YES |
Mobile monitor |
YES |
Interface | |
Communication Interface |
1pc RJ45 10M/100M self-adaptive Ethernet interface, 1pc WIFI wireless network interface |
Video Output |
1Vp-p Composite Output(75Ω/BNC) |
General | |
Operating Condition |
-10°C~60°C,Humidity 90% or less(non-condensing) |
Power Supply |
DC12V±10% |
Power Consumption |
6W MAX; |
Protection Range |
IP66 |
Led |
11pcs 8led, IR distance 10-20M |
Dimension(mm) |
110×125×105(LXWXH) |
