Help CenterPromotion Good Quality Xmeye 8ch 1080P Ahd Dvr Free CMS Software
Related Products
-
China Famous Brand 8ch 1080p Cctv System Ahd DvrUS$ 45 - 55MOQ: 1 Piece -
XM 8ch 1080P AHD Cctv System Free CMS SoftwareUS$ 45 - 55MOQ: 1 Piece
-
Customized HD DVR 1080PUS$ 45 - 55MOQ: 1 Piece
-
Hotselling 8ch 1080P Dvr h. 264 Output HDMI/VGAUS$ 45 - 55MOQ: 1 Piece
-
Wholesell H.264 8CH Dvr Full hd Wih OEM/ODM Hardware/SoftwareUS$ 45 - 55MOQ: 1 Piece
Feautures for ahd dvr Free CMS Software:
l lHD iDVR Three in one: combines the function of DVR/HVR/NVR together, multi-mode input, support 16ch analog+network HD video hybrid input support full HD network video input.
l lstep on the internet:can penetrate through all kinds of network via cloud service, to do remote control easily&conveniently without any complicate setting.
l lCompression algorithm ideal:Compression algorithm upgraded to H.264 main profile,the advance space-time filter technique make the code stream lower at least 30% .
l lplayback quality:real-time coding synchronously, real-time multi-channel playback synchronously.
l lMain and Sub Stream:support main stream and extra steam encode synchronously.Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
l lMobile monitor:support all kinds of mobile monitor (iPhone, Android)
l lDisplay: support VGA&HDMI output synchronously which support 1080P hd output, make the traditional monitor display effect upside down.
l lOperation interface:similar WINDOWS operating style,powerful right button menu function of mouse, make it easy for using.
l lNetwork:Powerful net service(support DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAILl,IP , etc),complete enclosure(WEB,CMS,SDK),to easily achieve interconnection.
l lBrowsers:Support multi-browser(IE,Chrome,Firefox,Safari.
l lRemote Access:Self enclosed with DNS function (ARSP),one-key to enable remote control, and support DNS of 3322,dyndns,oray,myq-see, etc.
l lOthers:Completed protective circuit, unique treble watchdog function, make device never crashed; special “black-box” technology to monitor the device process, greatly reduce the maintenance cost.
Specifications for ahd dvr Free CMS Software
|
Model |
AVR8208LH |
System |
Main processor |
Technical grade embedded microprocessor HI 3531,Embedded LINUX operating system |
|
Display screen |
1/4/8/9/16 screen (take analog channel as an example, other is base on the selected channel mode) |
video |
Video standard |
PAL(625 lines,50fps);NTSC(525lines,60fps) |
|
Monitor quality |
VGA:HD;HDMI:HD |
|
Encode capability |
Local analog input:16*1080P;8*1080P,16*AHD-H; Local analog + network digital input:4*720P(analog)+4*720P(ip) All network digital input:1*1080P+8*720P;4*1080P; |
|
Decode capability |
1*1080P |
|
Motion detection |
Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only) |
playback |
Record mode |
manual>alarm>motion detection>timing |
|
Local playback |
4ch real-time or 8ch @20fps |
|
Video search |
time,date,event,channel search |
Record |
Space occupation |
720P 20G/day;960H 12~20G/day*ch; audio:691.2M/day*ch |
|
Video storage |
Local HDD ,Network |
|
Back up mode |
Network backup,USB portable HDD,USB imprint, |
port |
Video input |
16ch BNC |
|
Video output |
1ch VGA,1ch HDMI(support1920*1080P) |
|
Audio input |
6ch |
|
Audio output |
1ch |
|
Alarm input |
4 |
|
Alarm input |
1 |
|
Network port |
RJ45 10M/100M self-adaptive Ethernet port |
|
PTZ control |
1 RS485;support multi kinds of PTZ protocol |
|
USB port |
2*USB2.0 |
|
HDD port |
2* SATA ports(biggest 4TB) |

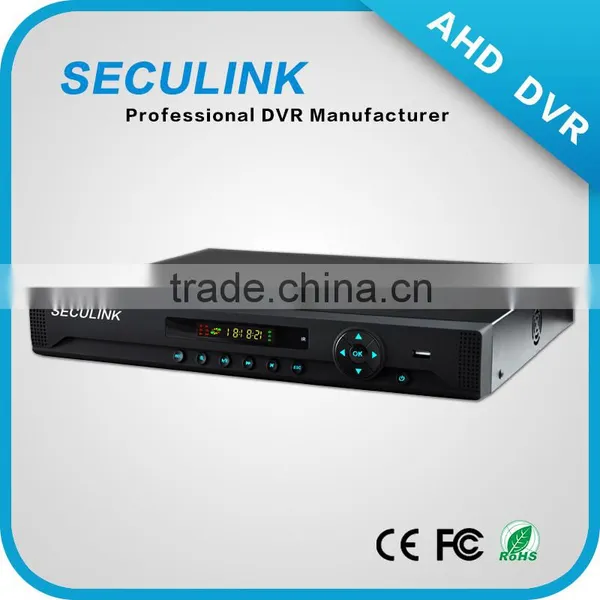

Pictures for ahd dvr Free CMS Software
