SVC-4.5KVA Three Phase High -Precision Automatic AC Voltage Stabilizer

SVC-4.5KVA Three Phase High -Precision Automatic AC Voltage Stabilizer thumbnail-1
SVC-4.5KVA Three Phase High -Precision Automatic AC Voltage Stabilizer photo-1
US$ 204 - 206 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CNSH
Model Number:
SVC
Contact Supplier Request Quote Chat Now
Jiangsu Shenghui Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo & Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name CNSH
Model Number SVC
Usage Other, Power, power
Phase Other, Three, three phase
Coil Structure Other, E1
Coil Number Other, three

Specifications

1. IEC60076, ISO
2. 5 Years warranty
3. Excellent appearance
4. free mainternance



SVC three-phase high precision automatic AC voltage stabilizer



SVC(TNS) series three-phase high accuracy full automatic AC voltage stabilizers, it is combined the performance of the series SVC single- phase products. The input phase system is three phase and four wire system. The output voltage is 220v of phase and 380v of line voltage, within the rated capacity range. They also can be used for the equipment of which the source voltage is single-phase 220v or three-phase 380v



Input voltage(V)

280-430

Output voltage(V)

380±3%

Phase

Three phase

Frequency

50Hz/60Hz

Response time

With 1second against 10% input voltage deviation

Opposite degree of humidity

Less than 95%

Waveform distorttion

No-lack distortion in waveform

Environment temperature

-5°C-+40°C

Insulation resistance

Comply with most international standards







Model

Dimension(cm)

Weight(kg)

Pieces in one pack

SVC(TNS)-6KVA

31.5x26x66

31

1

SVC(TNS)-9KVA

33.5x31x74.5

49

1

SVC(TNS)-15KVA

35.5x35x63.5

59

1

SVC(TNS)-20KVA

42x45.5x66.5

90

1

SVC(TNS)-30KVA

42x45.5x66.5

96

1

SVC(TNS)-45KVA

45x55x117

167

1

SVC(TNS)-50KVA

45x55x117

177

1

SVC(TNS)-75KVA

56x67x123

230

1

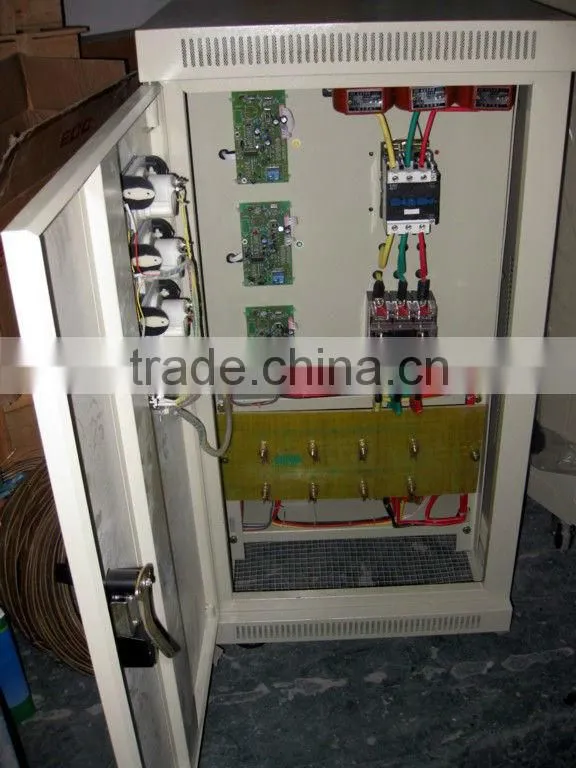

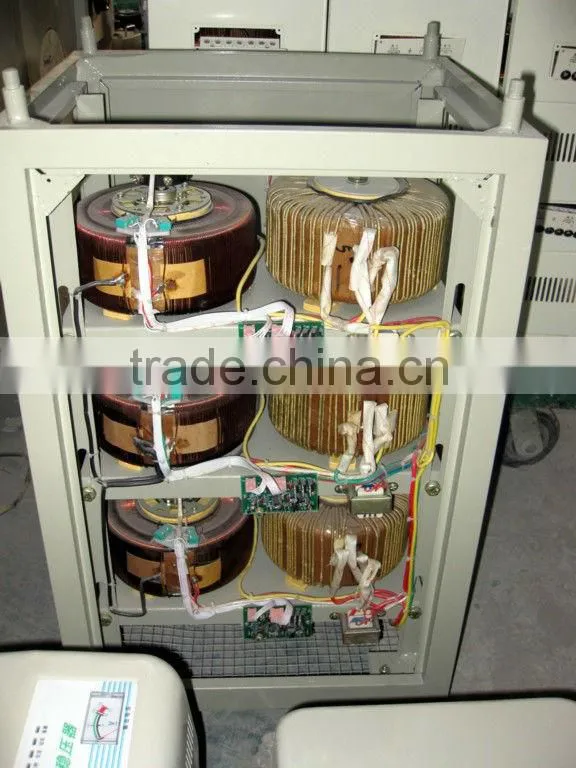

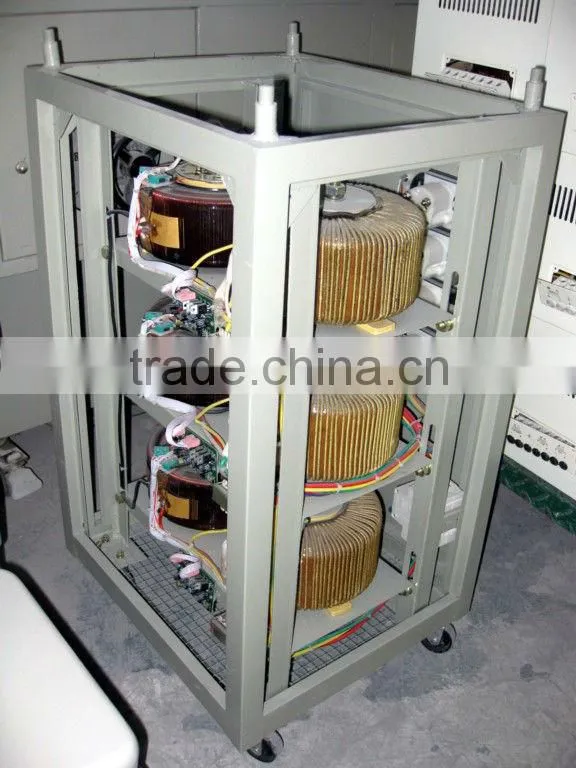

SVC-4.5KVA three phase High -Precision Automatic AC voltage stabilizer



 SVC-4.5KVA three phase High -Precision Automatic AC voltage stabilizer



SVC-4.5KVA three phase High -Precision Automatic AC voltage stabilizer



SVC-4.5KVA three phase High -Precision Automatic AC voltage stabilizerSVC-4.5KVA three phase High -Precision Automatic AC voltage stabilizerSVC-4.5KVA three phase High -Precision Automatic AC voltage stabilizer
