630 Kva 30/0.4 kv Transformer

630 Kva 30/0.4 kv Transformer thumbnail-1
630 Kva 30/0.4 kv Transformer photo-1
US$ 100 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CNSH
Model Number:
S9 oil immersed distribution tranformer
Contact Supplier Request Quote Chat Now
Jiangsu Shenghui Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo&Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name CNSH
Model Number S9 oil immersed distribution tranformer
Usage Other, Power, power distribution
Phase Other, Three, three phase
Coil Structure Other, Isolation
Coil Number Other, 3
Product Description

Our transformers sell well all over the world, with buyers from Ethiopia, Malaysia, Thailand, Kenya, Mozambique, Congo, Rwanda, Pakistan, South Africa, etc.We will provide more high-quality products and services for you in the future!



1.Primary Voltage:6kv,11kv,15kv,22kv,33kv,35kv,40.5kv

2.Second Voktage:0.4kv

3.Tapping:± 5%, ± 2× 2.5%

4.Frequency:50Hz; 60Hz

5.Connection:Yyn0, Dyn11,etc



Ambient temerature: then highest temperature+40°C, the highest monthly mean temperature+30°C;

The lowest temperature-10°C, the highest yearly mean temperature+20°C



Rated capacity(KVA)

Load loss(KW)

No-load loss(KW)

No-load current(%)

Overall weight(kg)

Dimension(mm)

10

0.26

0.09

3.2

172

915x450x935

20

0.44

0.1

3.0

230

915x450x975

30

0.63

0.13

2.3

275

930x587x995

50

0.91

0.17

2.0

360

995x595x1035

63

1.09

0.2

1.9

415

1020x75x1050

80

1.31

0.25

1.9

470

1035x750x1095

100

1.58

0.29

1.8

545

1040x760x1145

125

1.89

0.34

1.7

640

1080x770x1210

160

2.31

0.4

1.6

745

1120x785x1230

200

2.73

0.48

1.5

880

1210x810x1270

250

3.20

0.56

1.4

1035

1270x825x1420

315

3.85

0.67

1.4

1220

1310x840x1490

400

4.52

0.8

1.3

1405

1365x1010x1525

500

5.41

0.96

1.2

1655

1395x1025x1590

630

6.2

1.2

1.1

1975

1515x1060x1625

800

7.5

1.4

1.1

2355

1850x1180x1780

1000

10.30

1.7

1.0

2715

1890x1350x1840

1250

12.00

1.95

1.0

3335

1845x1420x1890

1600

14.5

2.4

0.8

3855

2295x1400x1980



Packaging & Shipping

Low voltage products:

7 days

Medium voltage products:

7 days

High voltage products:

7 days

Payment:

T/T or L/C

Port:

Shanghai

Packing:

Plywood case
Our Services

1.Your inquiry related to our product & price will be replied within 24 hours

2.Well-trained & experienced staff are to answer all your inquiries in English

3.Working time: 8:00am ~17:45pm, Monday to Saturday(UTC+8)

4.Perfect after-sale service,  quick reponse

5.Your business relationship with us will be confidential to any third party

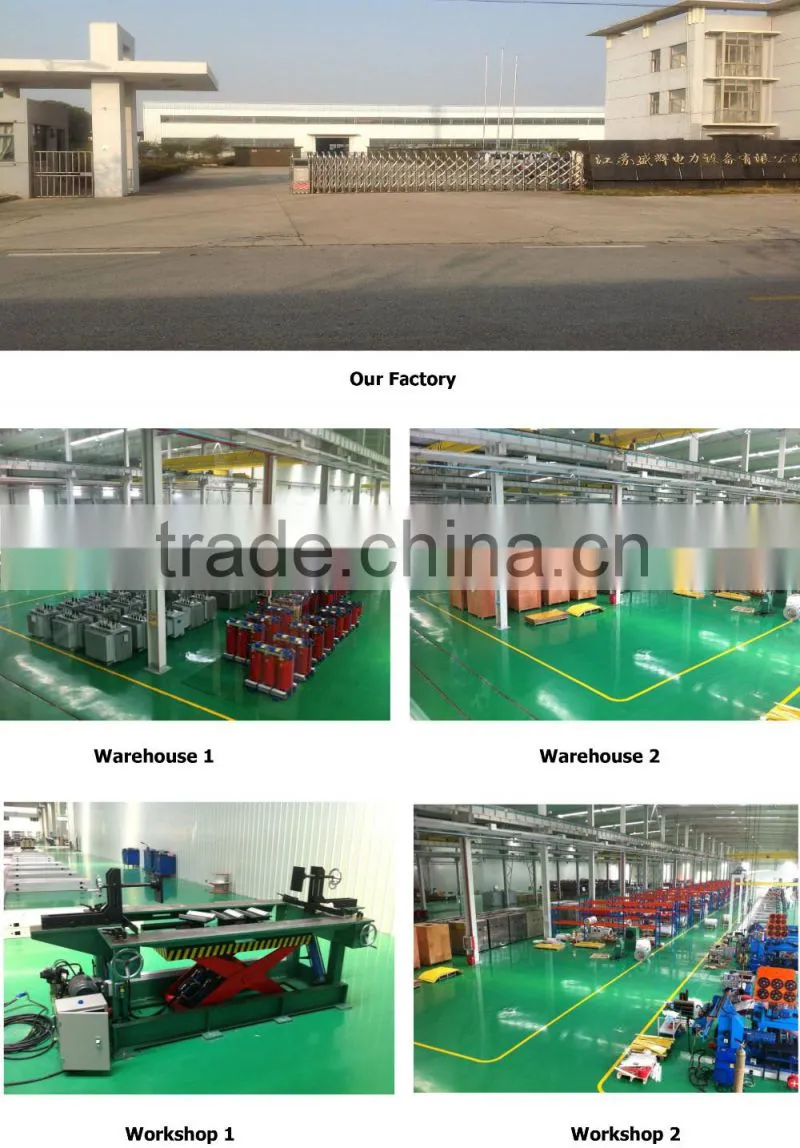

Company Information

630 kva 30/0.4 kv transformer630 kva 30/0.4 kv transformer630 kva 30/0.4 kv transformer

FAQ

Q:How about the warranty

A: All our transformers enjoy a three-year warranty

    Whin the three-year guarantee
    We provide free after-sale service via online video call or distant call

    For a major defect, we will send you another transformer, free of charge

    After the three-year guarantee

    We can send you another transformer at its cost price(Freight paid by the buyer)
