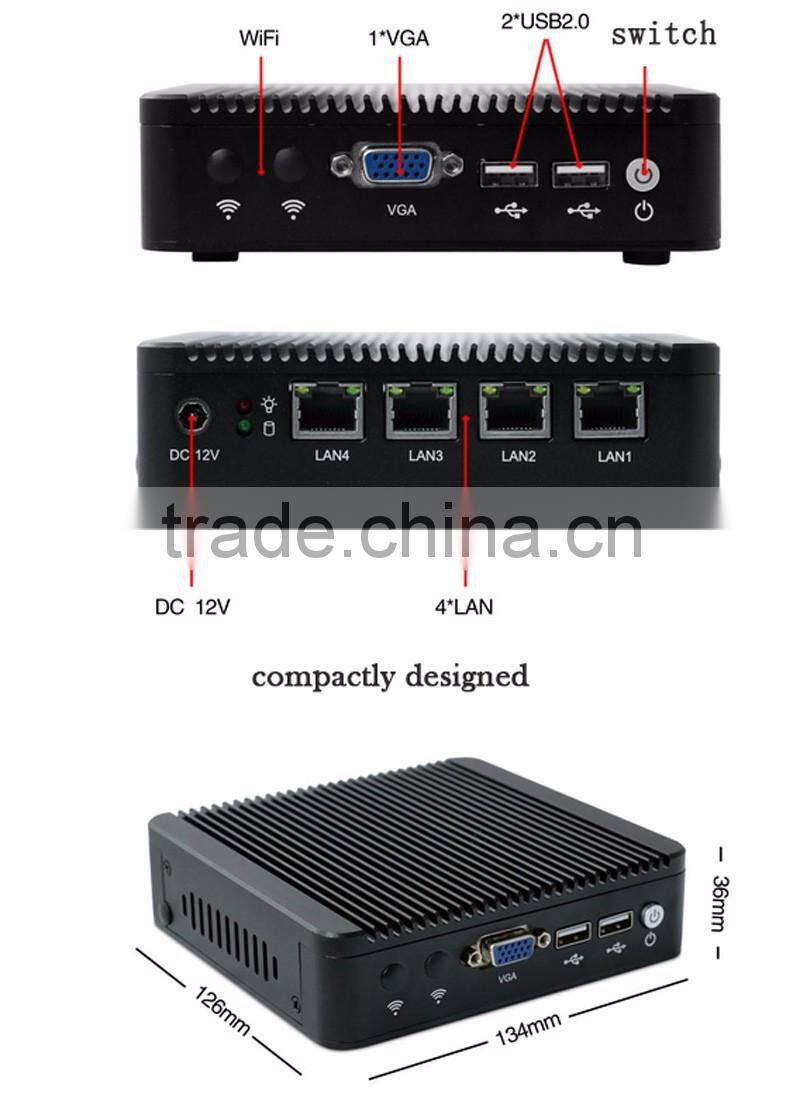

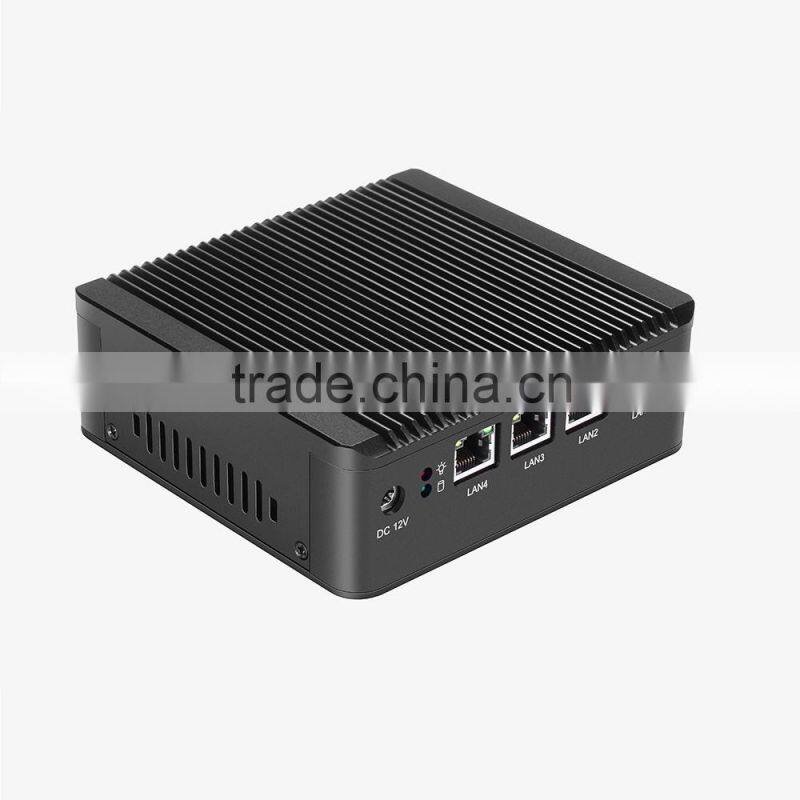

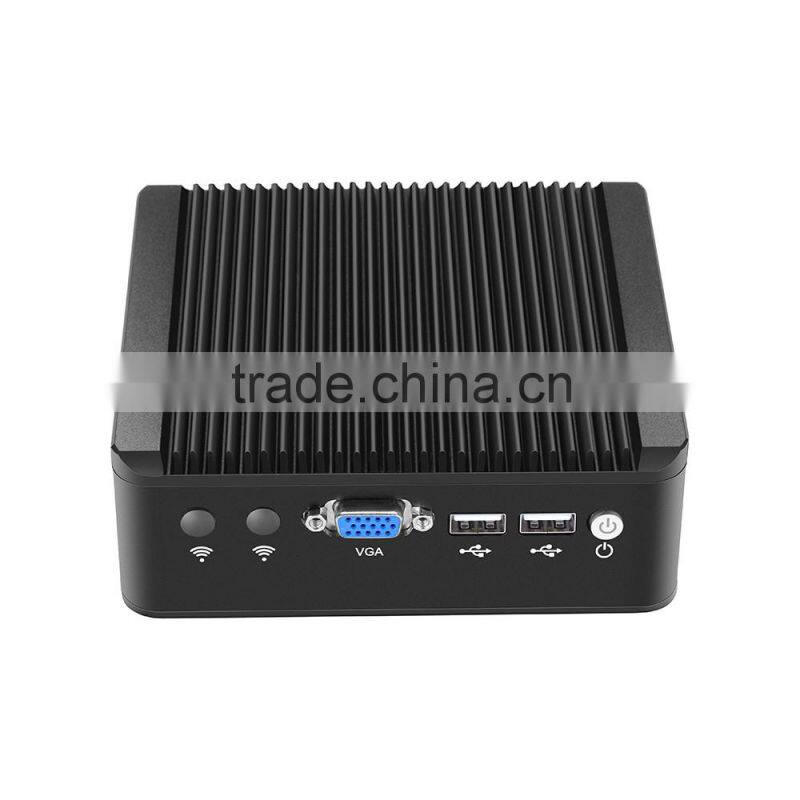

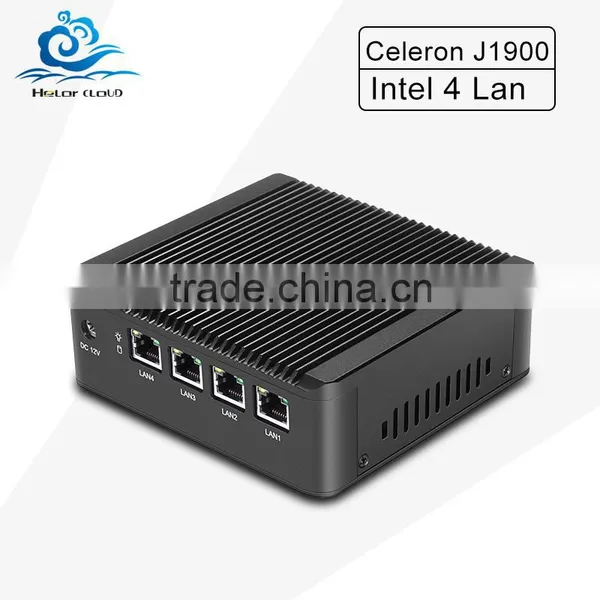

Firewall 4 lan intel J1900 Nano computer mini-itx motherboard for 4 lan fanless mini pc for server
Specification: Nano computer mini-itx motherboard for 4 lan
| Dimension | S01: 134*126*36mm(L*H*W) |
| S02: 134*126*47mm(L*H*W) | |
| Weight | 0.6Kg/0.7kg |
| Power Consumption | 10W |
| Onboard CPU | Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to 2.42 GHz) |
| Memory | Support DDR3L 1333/1600 MHz 1.35V SO-DIMM Memeory 1 x Memory Slot Max. Supports up to 8GB Memory |
| Chipset | Intel Soc Chipset |
| Hard Disk | S01: only support 1 * mSATA SSD |
| S02: support 1 * mSATA SSD and 1 * 2.5 inch SATA HDD / SSD | |
| Onboard VGA | Intel HD Graphics |
| Onboard LAN | 4* Intel WG82583 - 10/100/1000 Controller |
| Audio Solution | Realtek ALC662 HD Audio |
| Front-Panel Connectors | • power on/off • Power LED • 2 x USB 2.0 Ports • 1 x VGA Port |
| Back-Panel Connectors | • 1 x DV 12V input • 4 x RJ-45 Ports • 802.11 b/g/n Wireless USB Half Mini card (Optional) |
| Operating System | Support Windows 7 / Windows 8 / Windows 10 /Linux etc. |
Please note:
1. support Windows and Linux OS, DO NOT support Windows XP!
2. We preinstall unactivated Windows 7 for test and DO NOT provide any Windows license.
3. With 4 Intel LAN port, can work as router / firewall / proxy/ wifi access point, support pfsense.
4. has 2 versions, one is S01 which only support mSATA SSD, the other is S02 which can support 1 x mSATA SSD and 1 x 2.5 inch SATA SSD/ HDD. When you place an order, please leave a message to point out which one you need, or else S02 will be sent to you.
5. Any questions or requirements like change the configuration, change the OS, declare lower value and so on, please contact ME or leave a message.
6. The packing box contains power supply,if you need VESA, please leave a message
1. Can you put my brand name (logo) on these products?
Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
2. What payment method do you accept?
T/T,Western Union,PayPal.
3. What is the Minimum Order Quantity(MOQ)?
We can sell one piece sample for your test.
4. What is the lead time of your products?
1-3 days for one sample, 15 working days for a large quantity.
5. About the freight
The freight is different due to different destination. In general, the delivery should be reached in America or Europe in a week by FEDEX. An order with large amount may need 25-30 days. Please contact our sales to get to know the details.
We also have other computer cases , barebone mini PC , mainbord and power supply
