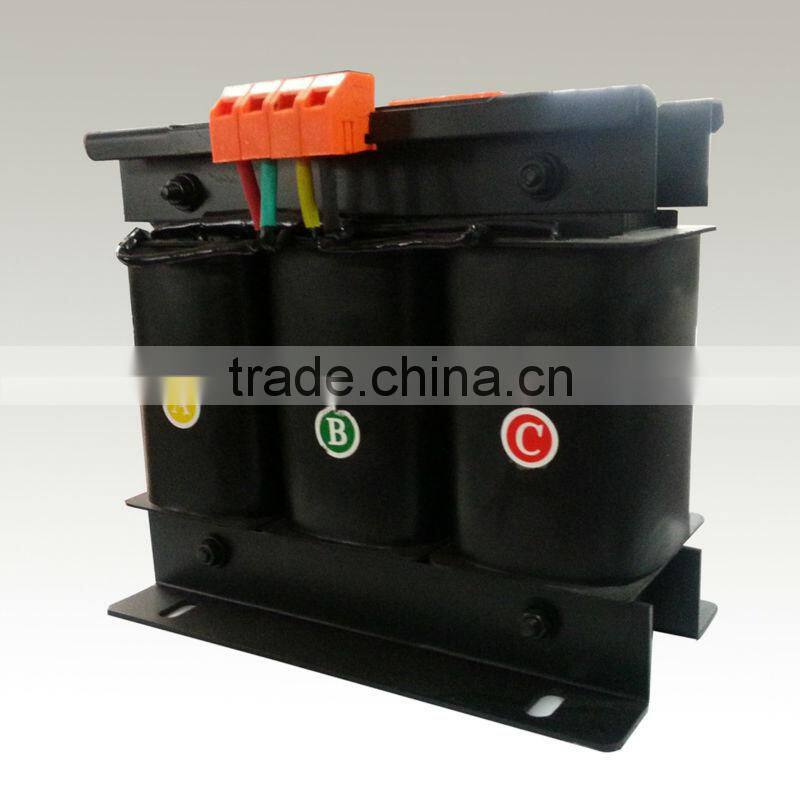

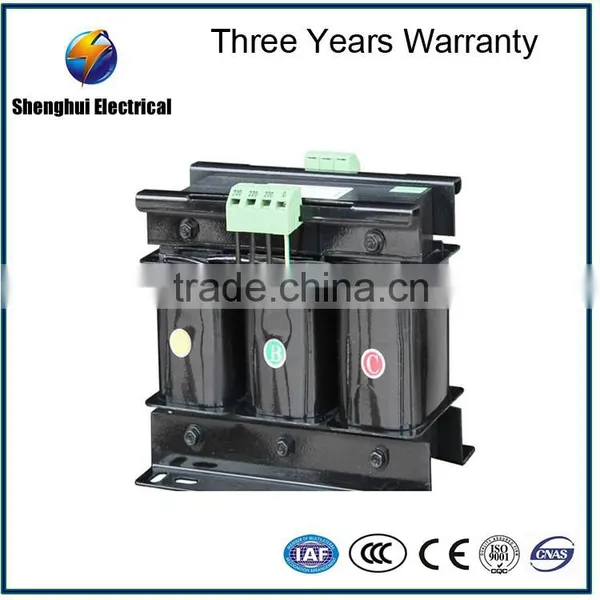

Help CenterThree-phase Step Dow & Step up Control Isolation Transformer380V to 220V SBK(SG)-1000VA Machine Tool Control Transformer
Related Products
-
Three-phase Step Dow & Step up Dry Type Control Isolation Transformer380V to 220V SBK(SG)-360VA Machine Tool Control TransformerUS$ 5 - 1,000MOQ: 1 Set -
Three-phase Step Dow & Step up Control Isolation Transformer380V to 220V SBK(SG)-700VA Machine Tool Control TransformerUS$ 5 - 1,000MOQ: 1 Set
-
Three-phase Step Dow & Step up Control Isolation Transformer380V to 220V SBK(SG)-400VA Machine Tool Control TransformerUS$ 5 - 1,000MOQ: 1 Set
-
Three-phase Step Dow & Step up Control Isolation Transformer380V to 220V SBK(SG)-150VAUS$ 5 - 1,000MOQ: 1 Set
-
Three-phase Step Dow & Step up Control Isolation Transformer380V to 220V SBK(SG)-630VA Machine Tool Control TransformerUS$ 5 - 1,000MOQ: 1 Set
Specifications
CE,ISO9001,ISO14001,CTQC,voltage and capacity can be designed according to your requiremen.capacity(0.5-800kva)
Gerneral
DG and SG series single - phase and three - phase dry type transformer adopts high quality material and advanced technology , it has advantages of damp - proof and convenient maintenance, it can be applied to such power transmission and distribution places like underground railway , high building, airport, station, wharf, enterprise, tunnel, etc. It is mainly used in power supply occasions of AC 50~60Hz and voltage less than 500V. All the input and output voltage , connection group and capacity of tapped winding can be designed and produced according to users’ requirements.
Working conditions (SG series three-phase dry type transformer)
1.Ambient air temperature: -5°C~+40°C, the highest monthly mean temperature should not exceed +30°C;
2.Altitude for installing place should not exceed 1000m;
3.When the ambient air temperature is +40°C, the relative humidity should not exceed 50%, and it allows higher relative humidity under lower temperature. Max average humidity in the dampest month is 90%, meanwhile the lowest average temperature of this month is + 25°C, and condensation on the product surface caused by temperature change should be taken into consideration.
Main technical characters
1.Input voltage: rated voltage ±10%
2.Output voltage: rated voltage +5% (no load)
3.Efficiency: ≥95%
4.Waveform distortion: no additional waveform distortion
5.Function: indication of input voltage, output voltage and current.
6.Protection: over-current protection
7.Can operate itself without anybody attending for a long term
8.Insulation resistance: ≥50MΩ
9.Electric strength: no breakdown or flashover phenomenon under power frequency sine voltage of 2000V for 1min
10.Overload capability: for 1min under two times of rated current
Outline
Size
| Model | Overall size | Installation | Enclosure size | Transformer |
| (KVA) | L×W×H | size | L×W×H | weight |
| (cm) | (cm) | (cm) | (kg) | |
| SG-0.5 | 17×9×15 | 11×7.8 | 32×15×22 | 10 |
| SG-1 | 25×10×20 | 14×9 | 40×20×32 | 19 |
| SG-1.5 | 25×11×20 | 14×10 | 40×20×32 | 24 |
| SG-2 | 25×12×20 | 14× 11 | 40×20×32 | 27 |
| SG-2.5 | 25 13 20 | 14 ×12 | 40×20×32 | 30 |
| SG-3 | 30 13 25 | 20× 12 | 45×25×37 | 40 |
| SG-4 | 30 14 25 | 20×13 | 45×25×37 | 45 |
| SG-5 | 30 15 25 | 20×14 | 45×25×37 | 50 |
| SG-6 | 30 16 25 | 20×15 | 45×25×37 | 54 |
| SG-7 | 35 15.5 30 | 20×13.5 | 50×25×42 | 63 |
| SG-8 | 35 16 30 | 20×14 | 50×25×42 | 66 |
| SG-10 | 42 21 42 | 13.5×31 | 70×35×77 | 90 |
| SG-20 | 52 24 52 | 15.5×40 | 70×35×77 | 180 |
| SG-30 | 55 28 65 | 16.5×40 | 80×40×87 | 220 |
| SG-40 | 61 30 65 | 17×40 | 80×40×87 | 265 |
| SG-50 | 61 30 65 | 17.5×40 | 100×50 ×104.5 | 295 |
| SG-60 | 70 32 66 | 19×45 | 100×50 ×104.5 | 370 |
| SG-70 | 70 32 66 | 19×45 | 100×50 ×104.5 | 400 |
| SG-80 | 70×32 ×67 | 19.5×45 | 100×50 ×104.5 | 450 |
| SG-100 | 75×35 ×68 | 21×45 | 100×50 ×104.5 | 490 |
| SG-120 | 75×35 ×68 | 21.5×45 | 100×50 ×104.5 | 520 |
| SG-150 | 85×37 ×68 | 23×45 | 120×65 ×114.5 | 650 |
| SG-200 | 95×45 ×68 | 29×45 | 120×65 ×114.5 | 850 |
| SG-250 | 94×45 ×83 | 29×45 | 120×70 ×124.5 | 1080 |
| SG-300 | 105×45 ×95 | 29×45 | 120×70 ×124.5 | 1350 |
