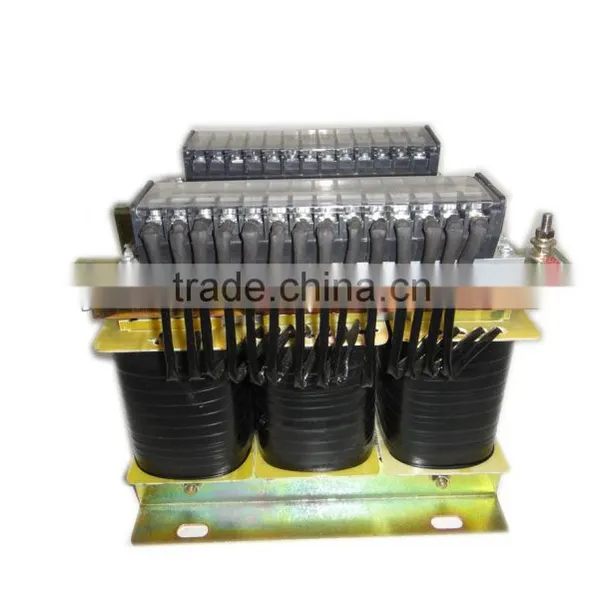

Three phase dry type transformer SG 1kva/380v

Specifications

Three phase dry type transformer SG 1kva/380v
1. IEC60076, ISO9001, CE
2. 5 years warranty
4. Easy installation
5. Low l

Three phase dry type transformer SG 1kva/380v



About us

Our power transformers have been sold well all over the world, and are exported to Ethiopia, Malaysia, Thailand, Kenya, Mozambique, Congo, Rwanda, Pakistan, South Africa, etc. We have won a good reputation among customers domestic and abroad. We will do our best to provide more qualified products and services for you in the future!

Trade Terms

1.Payment: 30% in advance, balanced 70% to be paid before dispatch. L/C

2.Port of loading: Shanghai Port

3.Discounts: offered based on order quantities

4.Delivery time:10-30 days according to order quantities.

Why Us?

1.Quality assurance: All the power transformers will go through lots of tests carefully before dispatch: Raw material test, Winding test, Assemble test, Painting check, Nameplate check and routine tests.

2.Competitive production capacity: monthly production more than 1500 sets

3.Manufactuer's price: Factory direct sale, most competitive price.





SG three phase dry power transformer





1.Three Phase power transformer with the highest standard of quality,reliability and durability.

2.It is suitable for frequency 50Hz or 60Hz electric network system,can be used in Transmission and distribution project.

Characteristics:

1)The three-phase three-pillar structure outside the box rolling.

2) All fasteners have been processed with special treatment to prevent them from losing

3) High-quality rubber sealing material, which can prevent the transformers form aging or leakage

4)The ripple tank, sealed structure, no leakage, maintenance-free

5) Core is not deformed and not rust





Technical Specification :

Ratings	:	CRGO - Upto 2000 kVAAMT - Upto 1000 kVA
Applicable Standards	:	IS, IEC, ANSI, JIS, BS etc.
Cooling	:	ONAN, OA
Insulating Fluid	:	Mineral Oil to specification
Frequency	:	50 Hz, 60 Hz
Polarity	:	As specified
Primary voltage	:	Upto 33 kV
Secondary Voltage	:	415, 433 V (Other Voltages as required)
Winding material	:	Copper / Aluminium
Taping range	:	± 5% in steps of 2.5% (Other tapings as required)



Model&capacity(KVA)	Dimension(cm)	Install size(cm)	weight
SG-1.5	18x11x18	8x15	9
SG-2	23x15x22	10x14	13
SG-3	26x20x25	12x18	23
SG-4	30x20x28	14x20	28
SG-5	30x20x33	15x27	32
SG-6	30x21x33	15x31	53
SG-8	35x21x35	15x32	62
SG-10	42x21x42	15x32	75
