SPD-9001 car accessory with waterproof night vision license plate front parking camera
The products detail
1.Day and Night Version
2.Wide range camera, 170 degree
3.High definition image& suitable size
4.Waterproof and easy installation

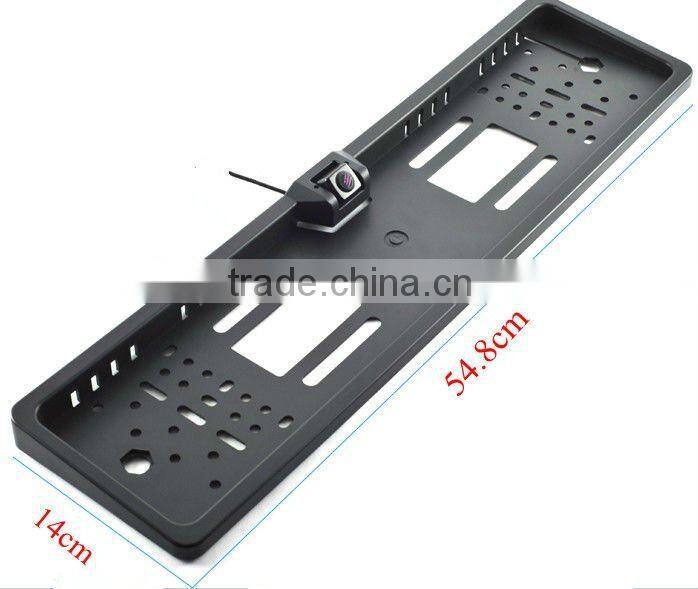

Size:447*147(mm)
IP rating:IP68
Image Sensors : 1/3" COLOR CMOS
TV System: PAL/NTSC
Effective Pixels: 512X582/512X492
Sensing Area(mm): 4.9X3.7
Resolution(TV Lines): 380
Horizontal Sync.Frequency(KHZ): 15.625/15.734
Vertical Sync.Frequency(HZ): 50/60
Video Output: 75 Ohm
Gamma Consumption: 0.45
AGC: Auto BLC : Auto
S/N ratio : Better than 48dB
Lens: F=3.6mm/F=2.0
Lens Angle(Deg.) : 170°
Current Consumption(mA) : 200
Power Supply(DCV): 12
Operating Temperature(Deg.C): -20Co + 75Co
Storage Temperature(Deg.C) : -40Co + 85Co
Technical parameters | ||
SPD-9001 car accessory with waterproof night vision license plate front parking camera | ||
Product Solutions |
CMOS |
CCD |
Image Format |
NTSC/PAL Optional |
NTSC/PAL Optional |
Effective Pixel |
NTSC:580*540 PAL:580*492 |
NTSC:728*580 PAL:728*560 |
Definition |
420 TV Lines |
480 TV Lines |
Visual Angle |
170° |
170° |
Minumum Illumination |
1 Lux/F1.2 |
1.6 Lux/F1.2 |
Waterproof Grade |
IP66 |
IP68 |
Curent Consumption |
Max 120 mA |
Max 120 mA |
Power Supply |
DC 12V |
DC 12V |
Working Temperature |
-20℃~-70℃,Max Rh95% |
-20℃~-70℃,Max Rh95% |
Storage Temperature |
-40℃~-80℃,Max Rh95% |
-40℃~-80℃,Max Rh95% |
The above parameters are for reference only.
Please refer to product specifications.
Description:
Professional exterior waterproof car rear view camera, easy to install and operate. 1/4 Inch Color CMOS, NTSC TV system,
170° visible range. Perfectly solve the issue of bad car rear view effect. Mount the camera to your car's license plate area, back window,
or any other suitable place. Adjust the lens of the camera to its best position. Connect power wire (red and black) to your vehicle DC 12V power system.
Connect the video output (yellow wire) of the camera to the display in your vehicle. This camera base is easy to fit and 100% brand new.
This camera base is a non-oem, generic product. Display not included.
Fetures:
- Anti fog glass.
- Low illumination level, it can work within 3 meters at night and other dark environments.
- CMOS CCD imaging sensor.
- Support NTSC video system.
- High grade of waterproofing: IP67-IP68.
- High-definition and 170 degree wide viewing angle.
- Applicable to variety of vehicles: car, truck, RV, etc.
- Easy to install.
- Its simple and modest design and mini size won't draw any attention.
- It helps to avoid incidents and accidents abrasion well.

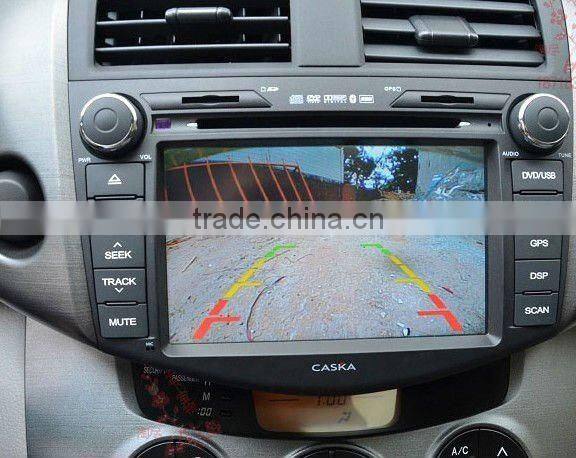

the day effection

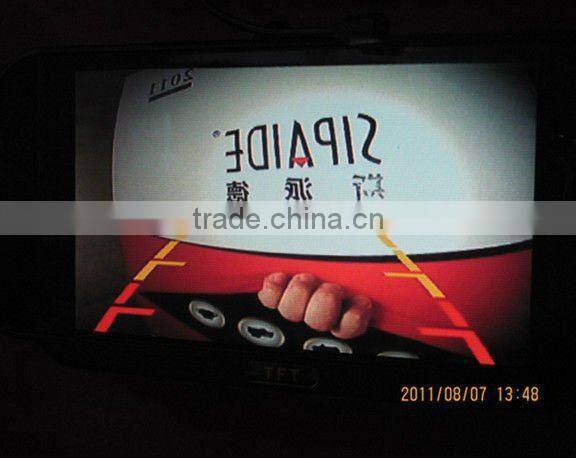

the night effection
Our Commitments:
1) Fast Service:
Pls feel free to contract us by Trade Manager or Email; All Message will be replied within 24 hours(Excludes holidays and weekend). If you do not receive our reply,please resend;
2) Competitive Price:
You could get a very competitive price,but we can not promise our price is the lowest considering the quality;We value performance price ratio more important than the lowest Price. BUY MORE, SAVE MORE! The more you buy, the lower price you will get!
3) Product quality:
We would control our products quality strictly,All items are checked and packed in good condition before delivery;It is very a effective way to reduce the percentage of products sent back for repair and save the cost for our oversea partners;
4) Fast Delivery:
Normally Samples delivered in 3-5 days, Mass production delivered in 10-20 days;
5) Warranty:
We provide one year warranty for all products, if the goods is defective, please notify us within 3 days of delivery.
FAQ:
Q: Hi seller i have a question is this camera has night vision on it?
A: Hello! No night vision capability, but it enough to clear rear combination lamps.Thank you!
Q: is the video output from this camera reversed? Or normal? I want to use it for the front of my car. so if its reveresed like most rearview cameras this will not work. Thank you
A: Hello! We have put car in front of the camera, which is different from ordinary, it displayed the image on the left is the left, right is right. specify when you place your order on the car in front of you can, thank you !
Q: How long is the cord that plugs into the monitor from the camera?
A: 6M,Thank you!
