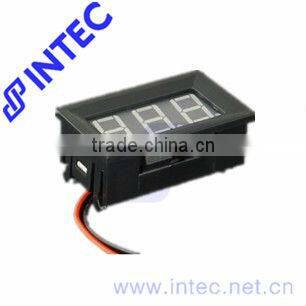

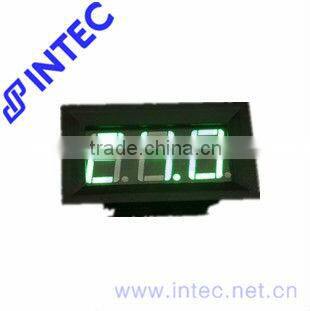

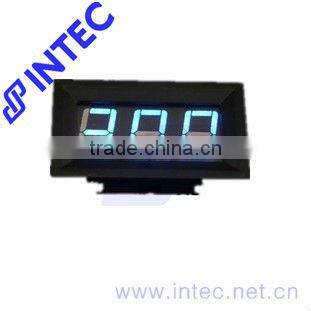

Electrical instrument 2.5~30V mini DC Voltage Meters LED Meter
1, The voltage meter uses 0.36 " digital display, with ultra-small size.
2, The voltage meter with two wires and reversal protection.
3, The voltage meter starting at a low voltage, the red 2.5V, green 2.7V, Blue 3.0V .When the voltage is lower than 3.5V, the display brightness will diminishes, but does not affect the measurements.
4, In order to achieve the best measurement accuracy, the voltmeter will automatically move the position of the decimal point according to the measured voltage.
5, The voltmeter can be used for motorcycles, cars and other monitoring battery voltage, and grasp the battery status , even other voltage measurements.
Specification :
| Outside size: | 48*29*22mm (not including installation part ) | measuring range : | red:DC2.5-30V ; green: DC2.70-30V ; Blue: DC3.00-30V |
| Open hole size: | 46x27mm | min input: | red:DC2.5 ; green: DC2.70 ; Blue: DC3.00 |
| Wire length: | 20cm | max input: | 30V |
| N.W: | 17g | tolerance: | 1%(+/-1) |
| G.W: | 25g | display mode: |
0.56″LED Nixie tube |
| current : | ≤20mA | color: | red ,green ,blue |
Update rate: |
500mS/each | ||
| Working temperature: | -10°C~65°C |
