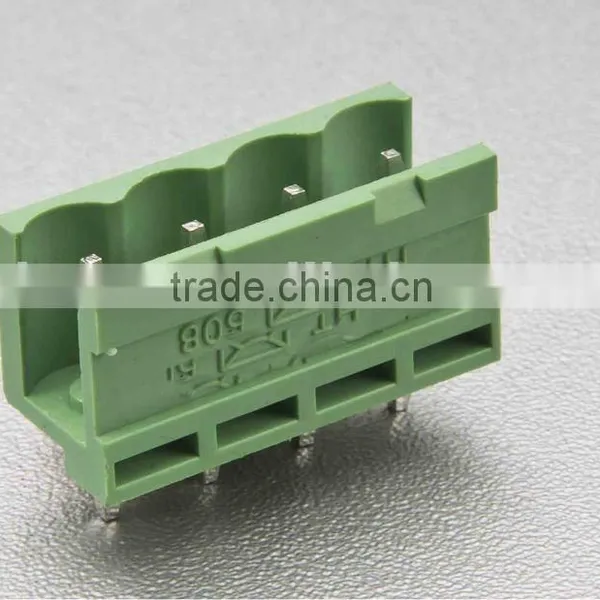

Pluggable Terminal Block Pitch:5.08mm Vertical

Pluggable Terminal Block Pitch:5.08mm Vertical thumbnail-1
Pluggable Terminal Block Pitch:5.08mm Vertical photo-1
US$ 0.01 - 0.9 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
INTEC
Model Number:
TCE-HT508V-5.08
Contact Supplier Request Quote Chat Now
Cixi Intec Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name INTEC
Model Number TCE-HT508V-5.08
Number of Contacts 11 - 20
Conductor Size 11 - 20 AWG
Type Plug-in

Detailed Product Description

1)ROHS and W/O ROHS
2)UL,CE,SGS,ISO9001, VDE
3)PA66, PA6,PBT UL94V-0

Pitch:5.08mm
Material
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Electrical
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20m
Insulation resistance: 5000M/1000V
Withstanding Voltage: AC1500V/1Min
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec

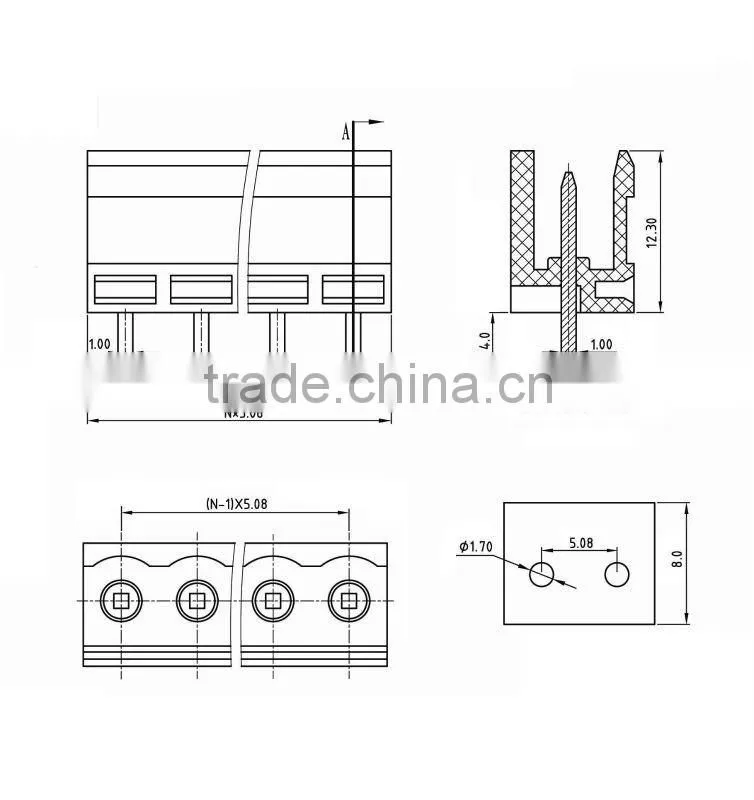

Pluggable terminal block pitch:5.08mm Vertical
