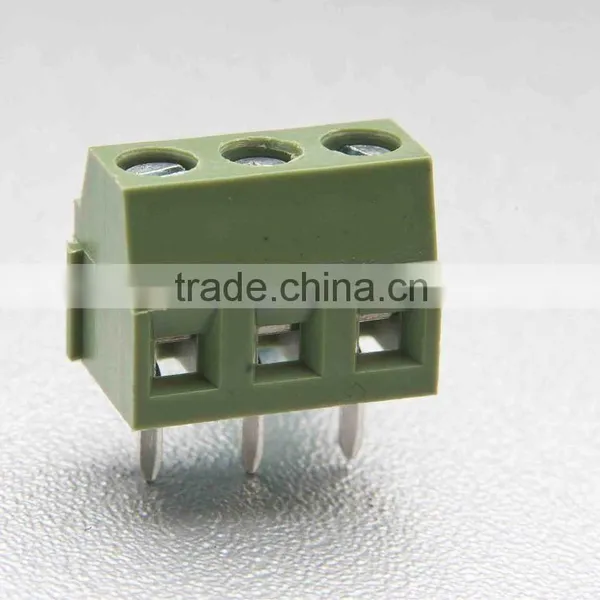

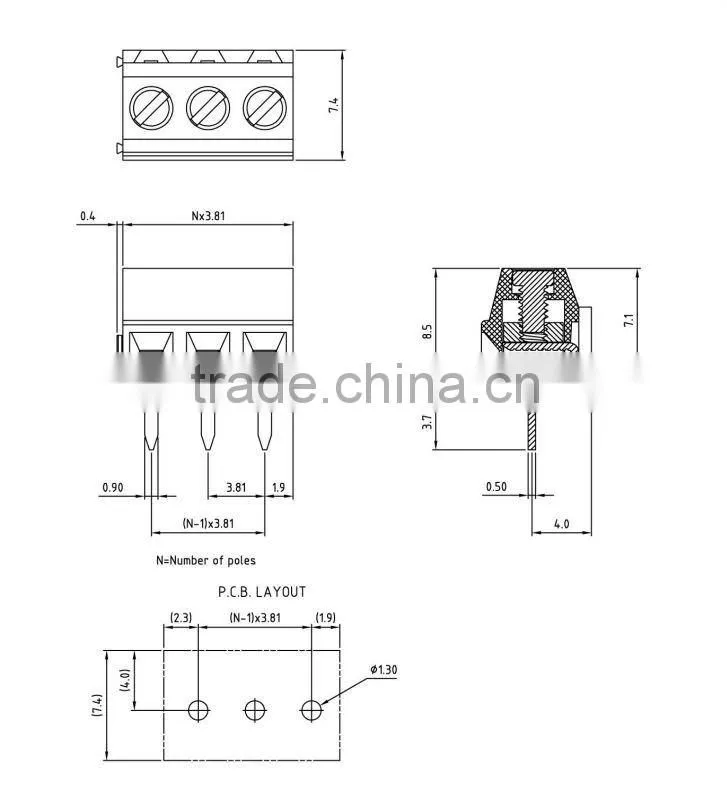

PCB Terminal Block
Pitch: 3.5mm.3.81mm
Screws: M2 steel Zinc plated
Wire guard:Phosphor bronze, Ni plated
PCB Terminal Block
Material
Screws: M2 steel Zinc plated
Wire guard:Phosphor bronze, Ni plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Electrical
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding voltage: AC 2000V/1 Min
Wire range: 30-16AWG 1.5MM2
Mechanical
Temp. Range: -40~ +105
MAX Soldering: +250, for 5 Sec.
Torque: 0.2Nm(1.7lb.in)
Strip length: 5-6mm
