Specifications
1, well adhesive;2, high resolution,
3, be able to make high-finesse picture
4, strong anti-acid ability;
5, easy clean
Vitayon Chemical Industry Co.,Ltd.
Free Tel: 400-0388-848
Tel: 0086-755-84805531 Fax: 0086-755-84807508
Web:
Add: No.214, Ainan Road, Nalian, Longgang Town, Longgang District, Shenzhen,
Guangdong Province, China.
This anti etching ink offers a short time protection for all kinds of metal while doing etching(Protect the part does not need to be etched). It will be stripped after doing all the processing in the end.
Product Description
Craft Introduction:Metal etching is a surface treatment process, covering the metal substrate
which part need to protect in printing or spraying then etching away the part we don't need with
chemical corrosion.in order to improve the precision of etching,adapt to the demand of mass
production,in order to solve this problem, our R&C department launched the sensitive antietching ink, and solving it by the photographic imaging and etching resistance performance of the ink.
The ink is widely used in the etching process of metal products.
Characteristics: Applying to spraying and screen printing, coating layer uniform and no bubbles,
drying fast, high resolution, good adhesion, strong anti-acid performance, etc.
Technological Process: Clean the surface of the substrate-spray(screen printing)-prebaking-exposure-developing-second baking(for deep etching)-etching-removing the ink.
Technical Features:
Project |
Standard |
Viscosity |
120-150 Pas(25°C) |
Fineness |
≤15um |
Exposure energy |
6-8case (Exposure guide rule 21case ) |
Hardness |
(Mitsubishi pencil,700g)≥1H |
Adhesion |
(3M high adhesive tape)100/100 |
Removing the ink |
10%NaOH solvent 80-90°C,5-8mins |
Operation Conditions:
1.Pretreatment:wash and remove the oil and wax on the surface of Product.
2.Dilution:Mix the ink and diluent together at suitable ratio,setting for 5-10mins, our specific diluent
will be added to the ink to adjust the viscosity ( at 1:0.7 ratio, or operating according to the specific
circumstances ) , the use of other thinners to be done before the production matching experiments;
3. Spraying:The thickness of dried ink film should be 20-30um.
Screen printing: Using 77T - 100T mesh size;
4.Prebaking:Hot air circulation drying at 80°C-90°C for 10-15mins;
5.Exposure:6-8 case,(21 case Exposure guide rule);
6.Developing:Washing with 0.8%-1.2% Na2CO3 solvent,about 2Kg / cm ² of the pressure ,
temperature at 30 ± 2°C;
7.Second baking: 150°C/30mins (if have deep etching process) ;
8.Etching;
9.Removing the ink:Remove the ink with 10% NaOH solvent at 90°c, then clean it with ultrasonic
wave for about 1-3 minutes ;
Quality Guarantee
1, We are a famous manufacturer in this field in China, we have our own research and development group.
Most of the products are made and named by ourselves in the market.
2, We are able to manufacture the printing ink according to customer's requirement.
3, The warranty is 6 months.
4, We use high quality materials in order to make the effect perfect. Without any impurity.
5, We have our own brand and patent. Our expert group will teach you how to use our ink. We have complete
after-service group. Any question or requirement, we will reply you in 24hours.
Pictures for your reference
Factory:

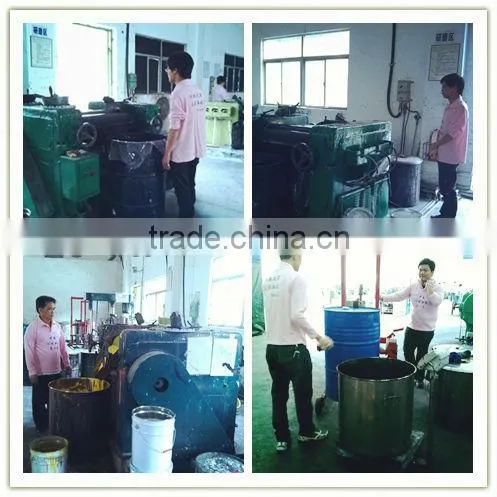

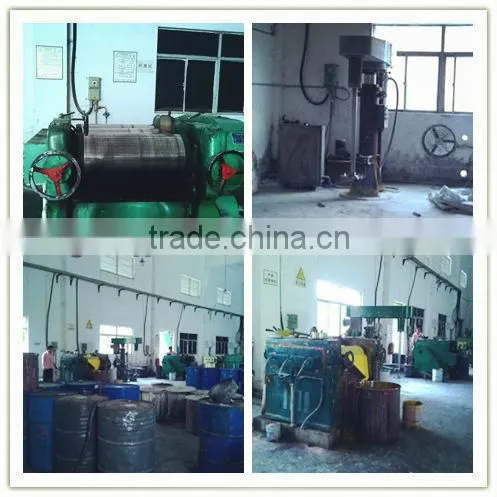

Manufacturing:

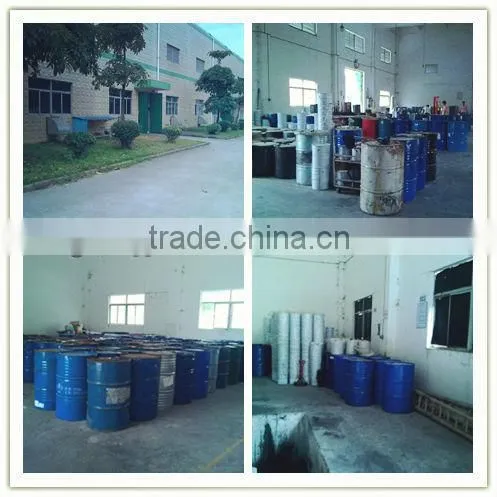

Warehouse:

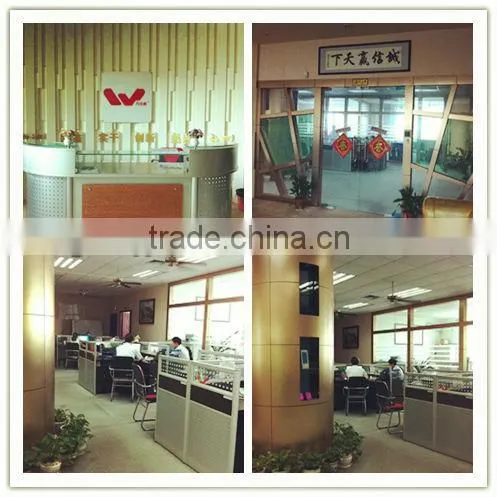

Office:
Exhibition:
Shipping terms
Express: DHL, TNT, FedEx, UPs
By Sea
By aire cargo
Payment terms
T/T, Western Union, Cash
