v Brief Introduction
ArtNet-DMX converter is the Ethernet Control System based on the ArtNet protocol.
Used to convert the Artnet network date package into DMX512 date, adopting high-speed ARM processor, stable and reliable working.
Following Art-net standard protocol, it support RJ45 network interface and standard DMX512 output interface.
Artnet-DMX-1 can be configured in one or two ways: ArtNet convert into DMX512, or DMX512 convert into Artnet.
Artnet-DMX-2 has two standard DMX512 date output port, output 1024 data in total.
It is compatible with all the effects lighting control software which support Art-net protocol,
widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX512 data,
especially for TV station recorded scene, stage performances, entertainment and so on.
v Feathure of DMX LED Professional Lighting Controller.
1. Plug and Play for easy connection and installation.
2. 4*512=2048 DMX Channels for each Artnet controller.

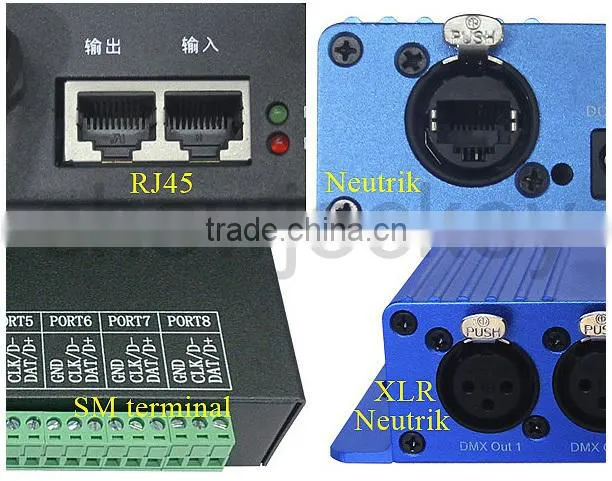

3. Neutrik XLR 3Pin-5Pin optional (Female).
4. Can connect to any Windows PC via Ethernet cable.
5. Compatible with any software which support Artnet protocol, such as Madrix /MA, Avolites, Madmap which allow music to lights,sound to lights,
6. Signal synchronization in 4 ports, support DMX console such as Avolites, Compulite etc.
7. Suitable for middle, large projection, remote control and easy connection.
8. Unique structure design, easy for connection and installation
9. Manage ArtNet on broadcast mode or unicast mode.
10. IP and Universe and other configuration and editing can be set on web browser.

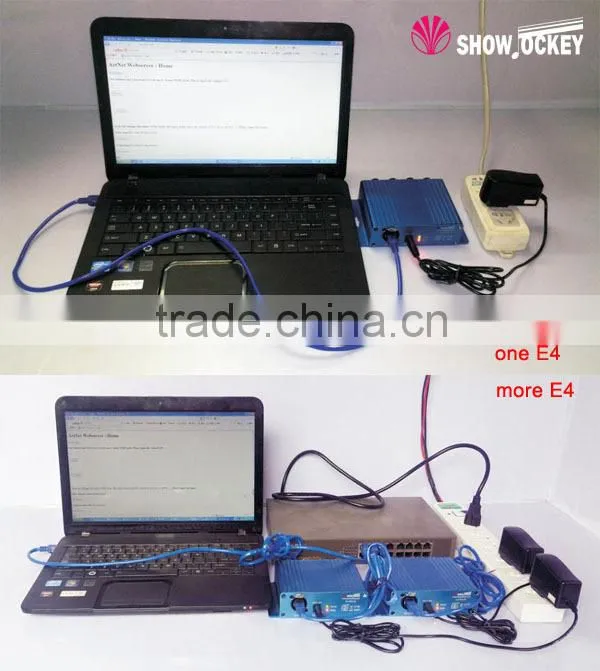

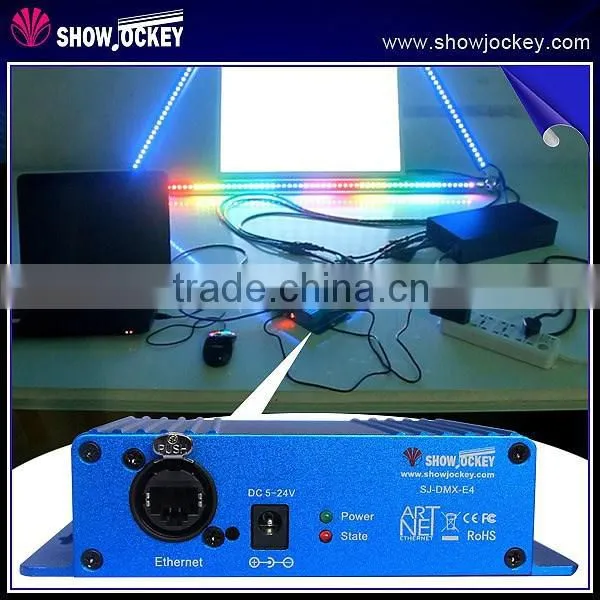

v Connection Guide.

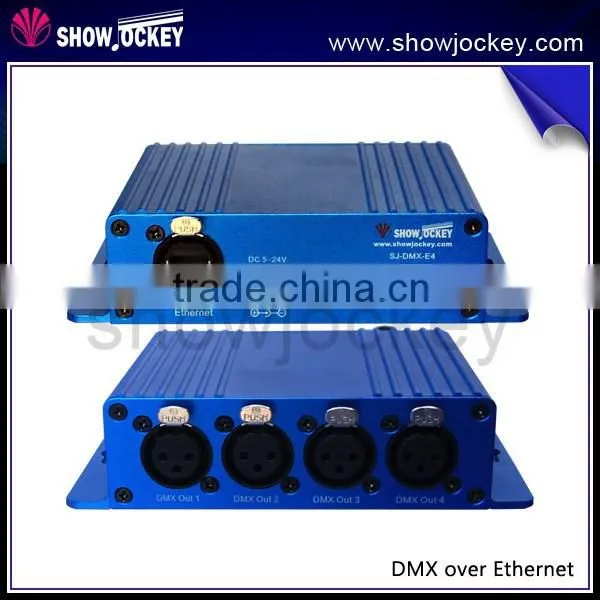

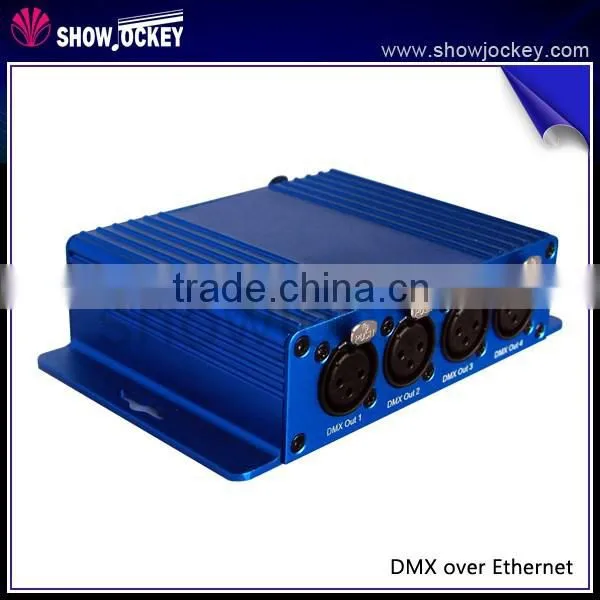

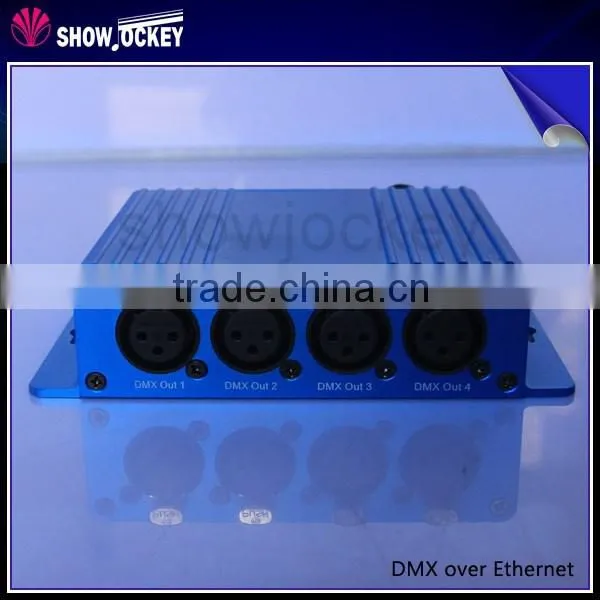

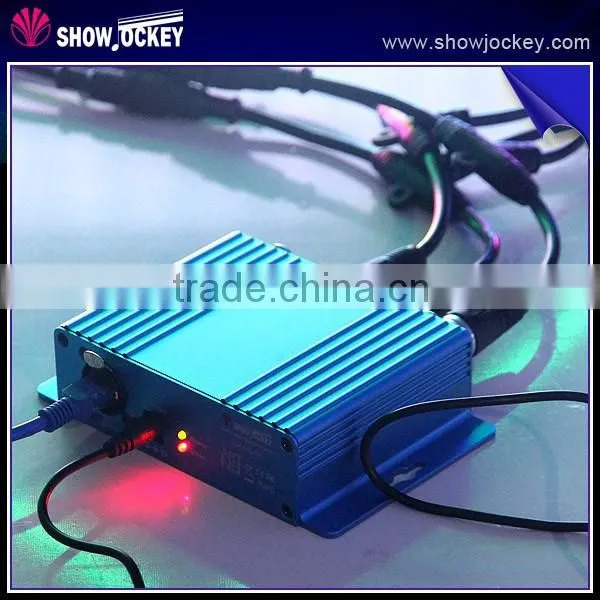

v Parameter of DMX digital 512 LED Controller.
Product |
DMX 512 *4 Channel LED DMX ArtNet Controller |
Parameter |
Description |
Model |
SJ-DMX-E4 |
Voltage |
AC110V-240V |
Protocol |
DMX |
Input Signal |
DMX512 |
Output Signal |
DMX 512 |
Input Port |
Ethernet RJ45 |
Output Port |
Neturix XLR 3Pin Female |
Port |
4 |
Support DMX Channel |
Full 2048 DMX channels |
Temperature |
0-50°C |
Humidity |
0-95%,non-condensing |

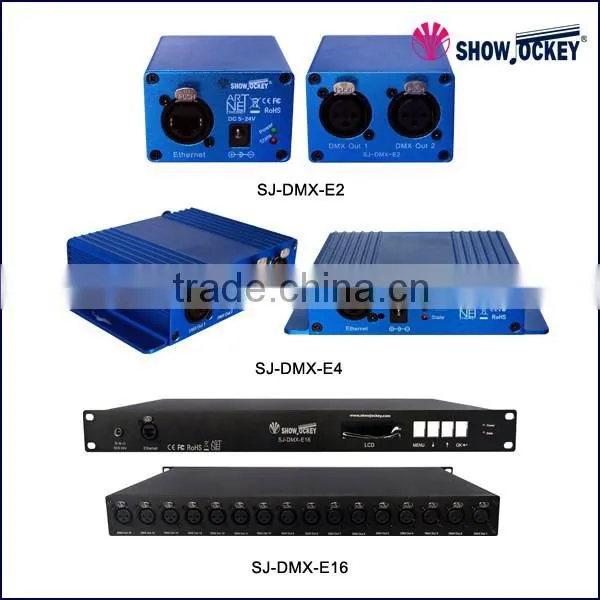

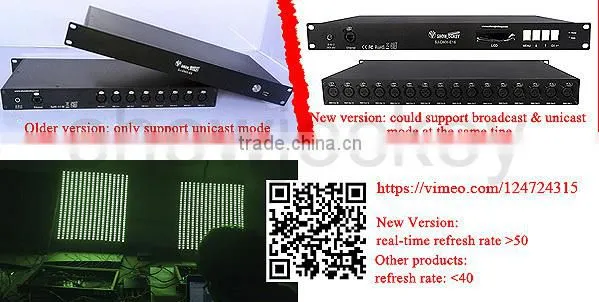

v Family Versions (2/4/16 universes)
Product |
DMX512 LED Multi Zone Artnet Controller |
||||
Item |
SJ-DMX-E1/SJ-DMX-E2 |
SJ-DMX-E4 |
SJ-DMX-E16 |
||
DMX Universe |
1 & 2 |
4 |
16 |
||
DMX Channels |
512 & 1024 |
2048 |
8192 |
||
Work Mode |
Artnet I,II,III |
Artnet I,II,III |
Artnet I,II,III |
||
Software |
PC&MAC&Linux &iPhone&iPad |
PC&MAC&Linux &iPhone |
PC&MAC&Linux&iPhone &iPad |
||
Wifi Mode |
√ |
√ |
√ |
||
Number of Scenes |
255 |
255 |
255 |
||
Power Voltage |
DC5-24V 300mA |
DC5-24V 300mA |
DC5-24V 350mA |
||
Power Connector |
Round 2.1mm |
Round 2.1mm |
Round 2.1mm |
||
Dimensions |
70*50*40mm |
120.5*70*45mm |
Round 2.1mm |
||
IP Setting |
√ |
√ |
√ |
||
Device Name |
√ |
√ |
√ |
||
Subnet |
√ |
√ |
√ |
||
Universal |
√ |
√ |
√ |
||

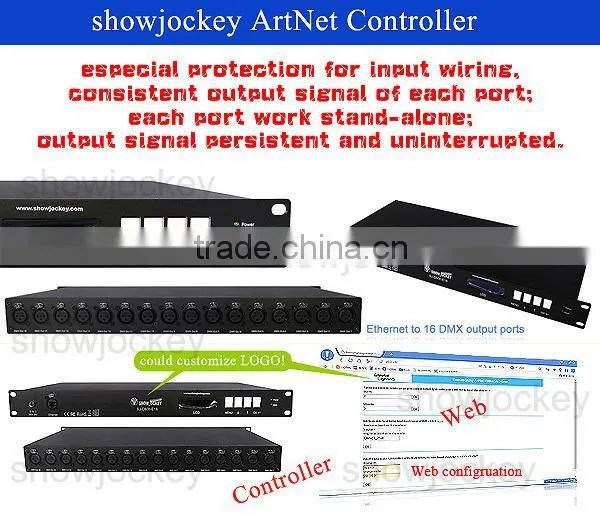

v Showjockey Advantage.

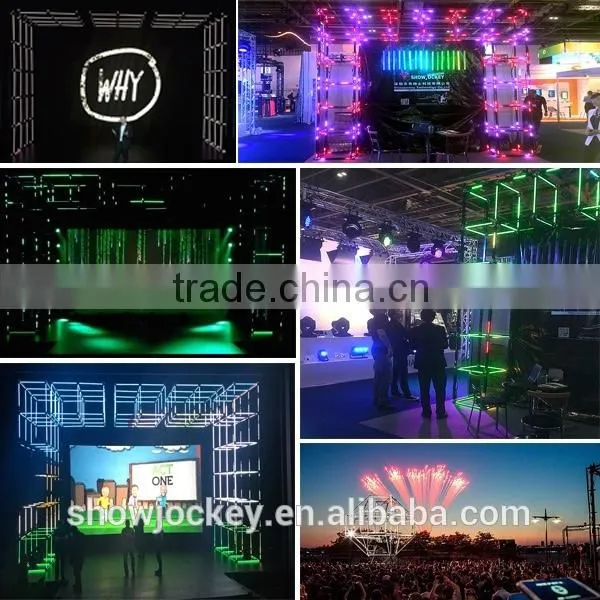

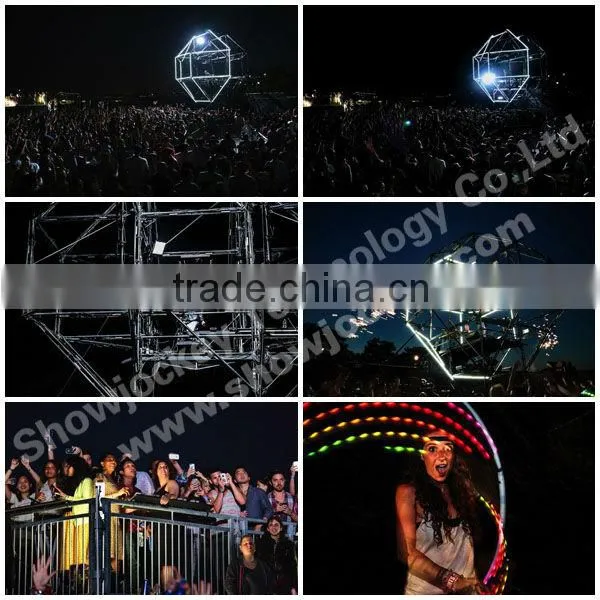

v Application
1. Scene real-time simulation, Stage Backdrop, Movie Special-effect.
2. DJ VJ Lighting Show, night clubs, television studios.
3. University, Professional theater.
4. Architectural installation.
5. Performing arts center.
6. Trade show.
7. Touring company / road house.
v Shipping and trade terms
MOQ: |
1 pcs |
Shipping port: |
Shenzhen |
Packaging Details: |
Standard carton box. |
Delivery Time: |
Within 1 week after payment confirmed. |
Payment Terms: |
T/T ; Western Union; Paypal |
Supply Ability: |
100,000 pcs per month |
Shipping method: |
As your requests, by express( DHL, UPS, TNT, Fedex ), by Air, by sea are optional. |

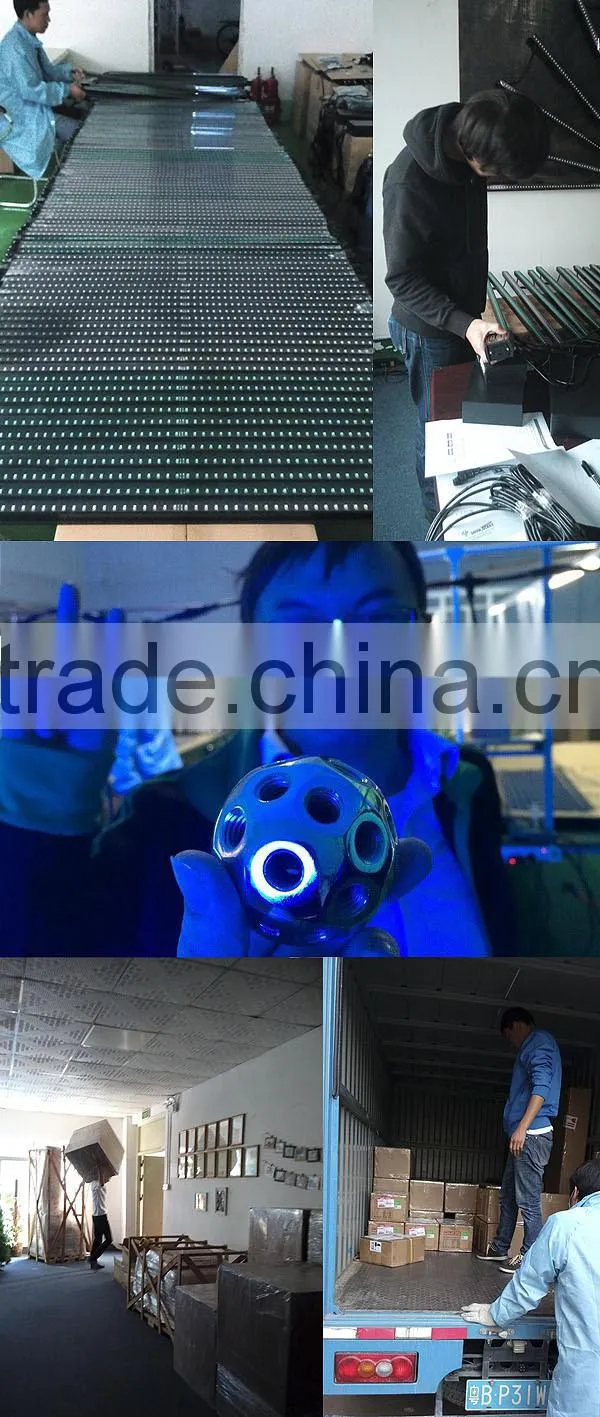

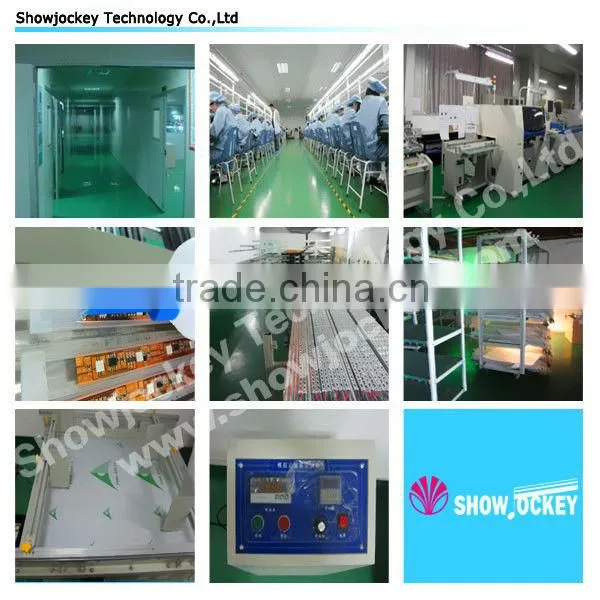

v A Glimpase of Factory.

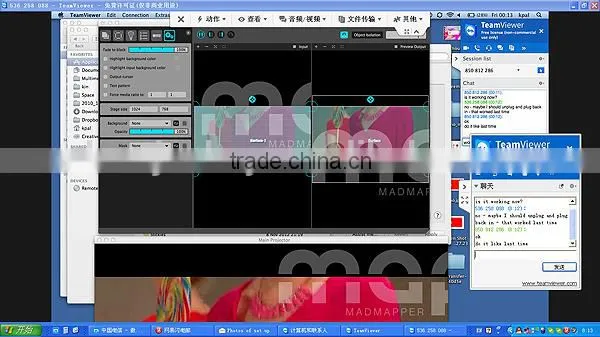

v Remote Surpport for clients by TeamViewer.
v Patents of Showjockey
v Certifications of Showjockey
v Our Service
1. Showjockey is Alibaba Assessed 3 years Gold Supplier.
2. Strong technique support with creativity.
3. Enterprise with 10 Patent product protected by law.
4. Supplier & Partner of Top 10VJ software worldwide.
5. 100% QC inspection Before Shipment.
6. CE/FCC listed, competitive price.
7. Prompt response, professional after-sale support.
If you like our products, pls tell me;
If have any good idea, pls let me know.
We support customized, and will do our best to meet your requirements!
