cnc hot wire styrofoam cutting machine G1330
Performance Features:
1.Adopt linear guide, double row and four rank ball slider,large loading capacity , smooth operation, high precision, long service life. Imported high precision ball screw, high cutting precision.
2 .Overall Non-defrmation and thickened square tube bed structure, steel structure bed body, technological welding , the overall is Non-defrmation.
3.Adopt high flexible and resistant bending cables , imported durable electronic components, whole electrical design conforms to the European Union CE standard; Independent of the control cabinet to be with reliable security protection system.
4.Easy operated Ncstudio control software, adopt unique and intelligence budget law, completely develop the potential of motor, realize the constant speed processing, curve and linear line synchronous, curve line is more prefect , do not take up the computer RAM storage and can realize the automatic start-stop of cutting spindle.
5. Better software compatibility and be compatible with type3 / Artcam/Castmate/UCANCAM and other CAD/CAM design software.
6. Adopt high speed stepper motors and drivers, in constant speed and stable operation.
Technical Parameter
Model |
G1330 |
Working area (Y*X mm) |
1300*3000 |
Machine dimension (mm) |
3600*2200 |
Axis Quantity |
2(X Y axis) |
Drive system |
Stepper |
Screw type |
gear rack |
Table type |
T-slot |
Machine structure |
Rectangular steel tube welding |
Processing instructions |
G code HPGL |
Working voltage |
AC220V/50Hz/60HZ |
Working temperature |
10°C~50°C |
Working humidity |
10%~90%(without condensed water) |
Net weight |
600KG |
Remark |
Economic |
Bed structure |
Rectangular steel tube welding |
Transmission type |
X Y: gear rack |

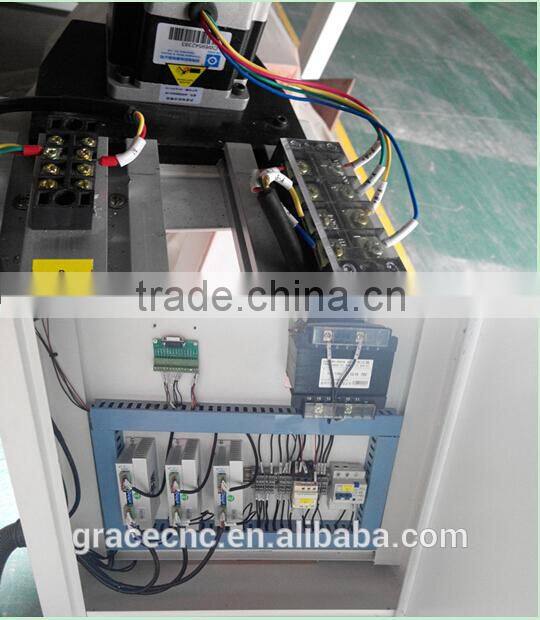

Control box |
independently |
Working voltage |
AC220V |
Motor power |
450A |
Driver |
M542 |
Voltage regulator |
1000W |
Control system |
Ncstudio 5.449 |
Compatible software |
UCANCAM,artcam,typ3 |

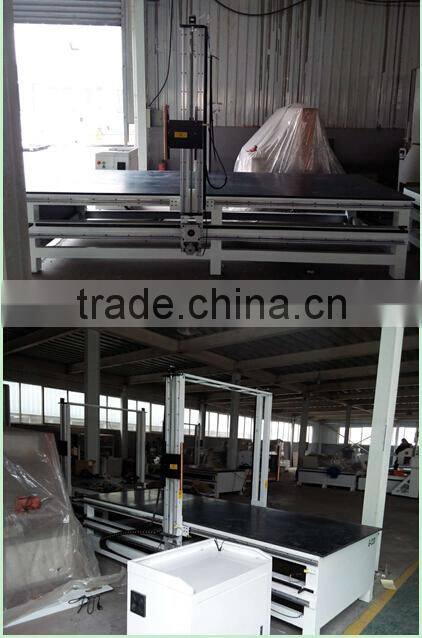

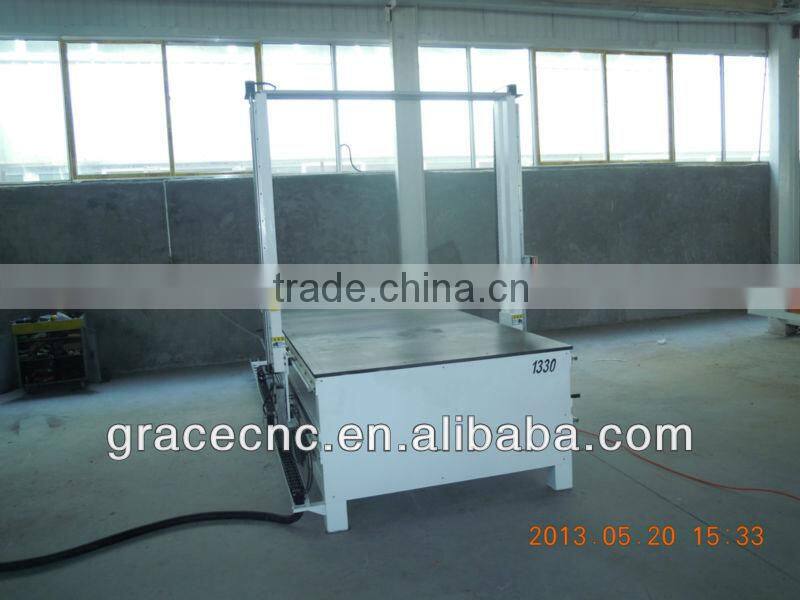

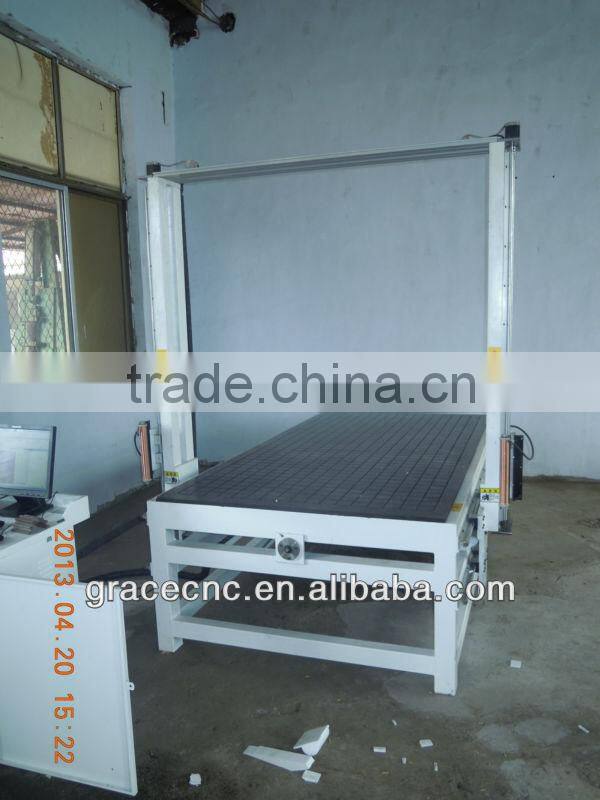

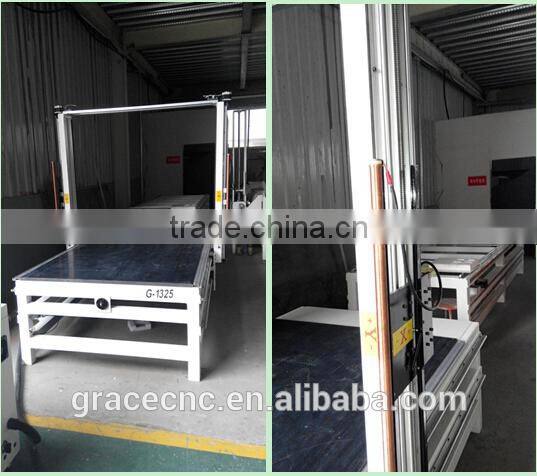

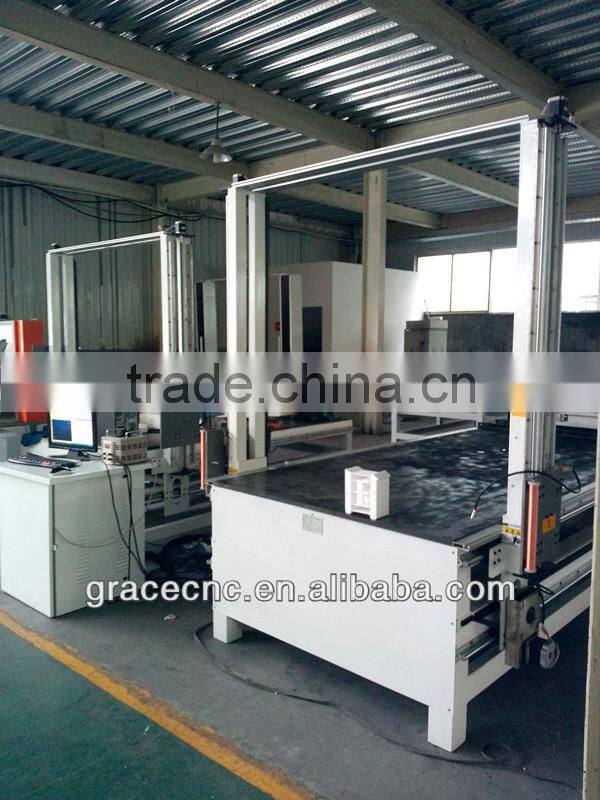

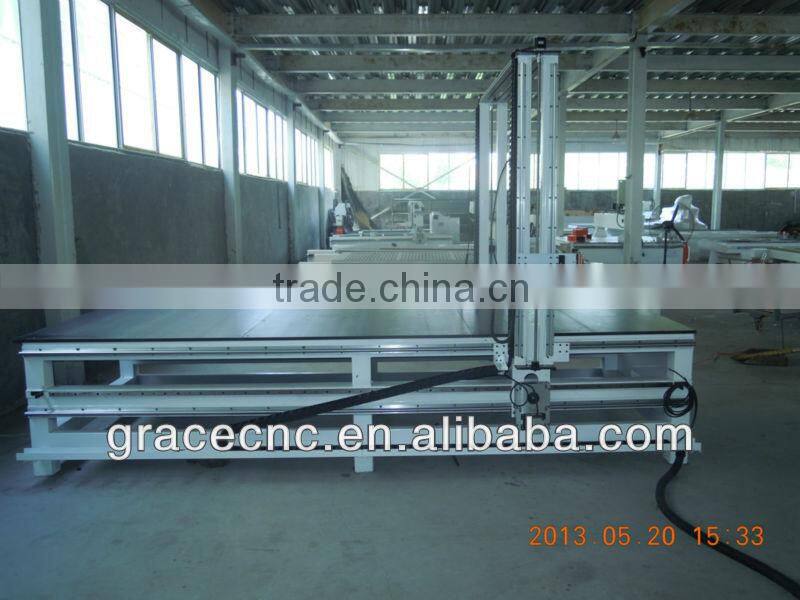

Machine in the factory

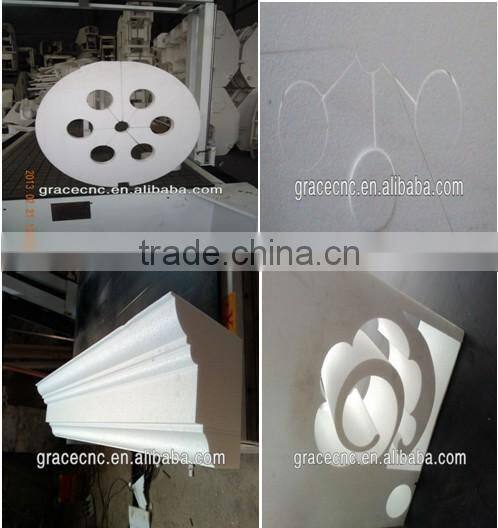

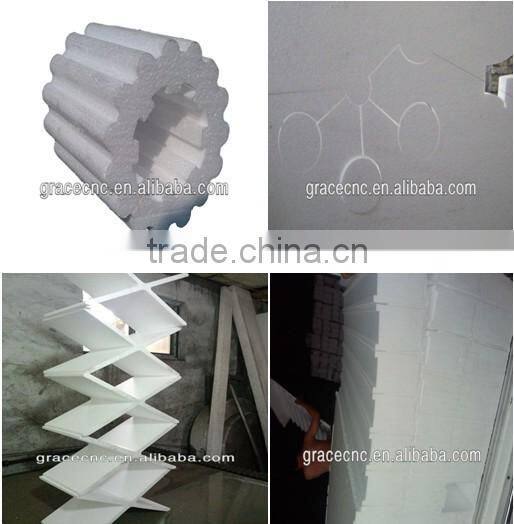

Samples
Shipping terms
By sea
Payment terms
1. T/T(Telegraphic transfer)
2. L/C at sight
3. ESCROW
4. Western Union
5.Paypal
6. Shipping by sea, pay 50% in advance, the balance against copy of B/L.
Advantage
1.Competitive prices
2.Good reputation, Attentive service.
3.Excellent quality
4. Fast delivery

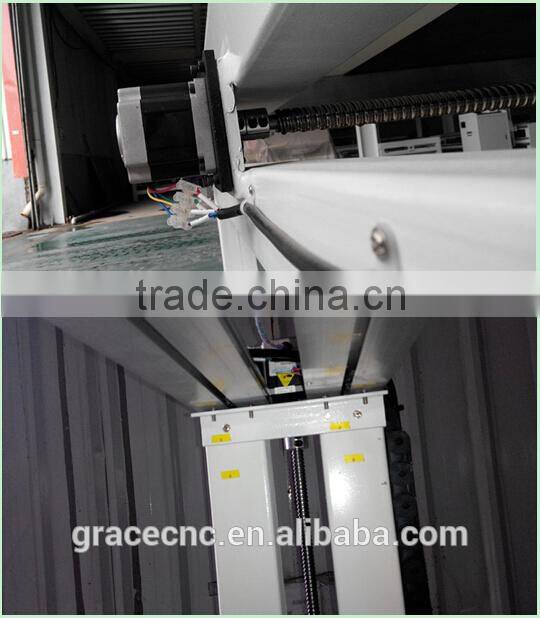

Packing and transport
