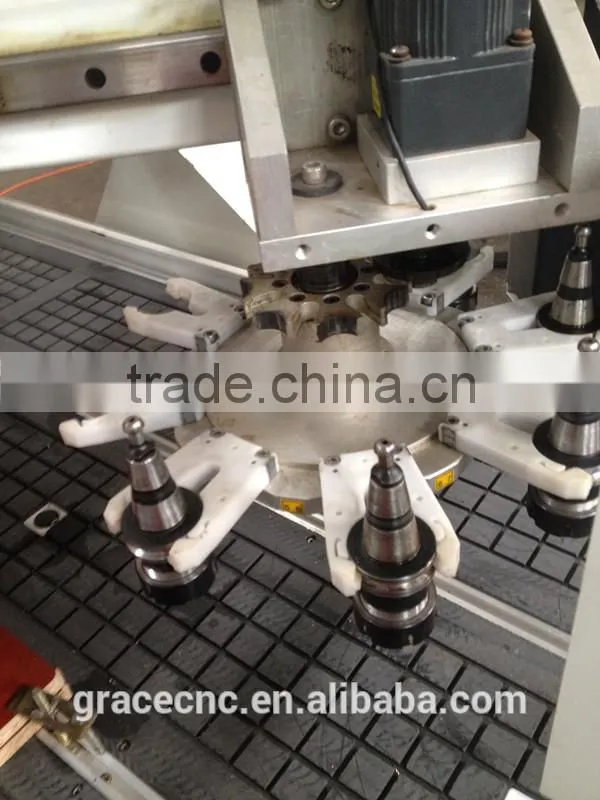

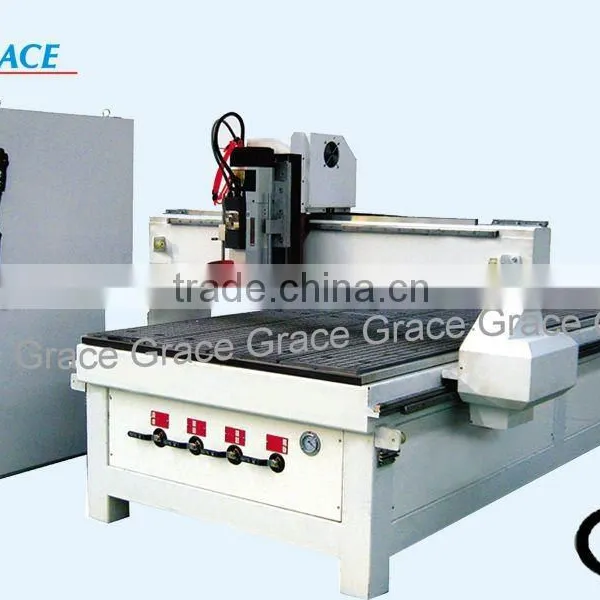

Linear Type Auto Tool Changer CNC Router G1325
1)type:G1325
2)structure: T type Thick Whole Steel structure

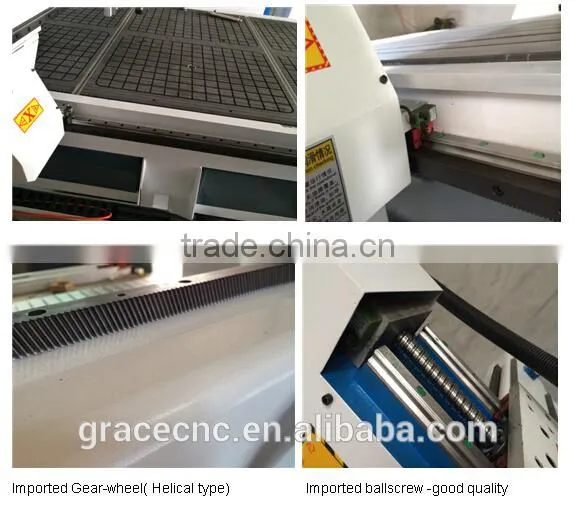

3)importer square orbit :ballscrew for z axis ,gear - wheel for x axis and y axis
4) Software:UCANCAM and Artcam
5) Taiwan Syntec control system or LNC control system

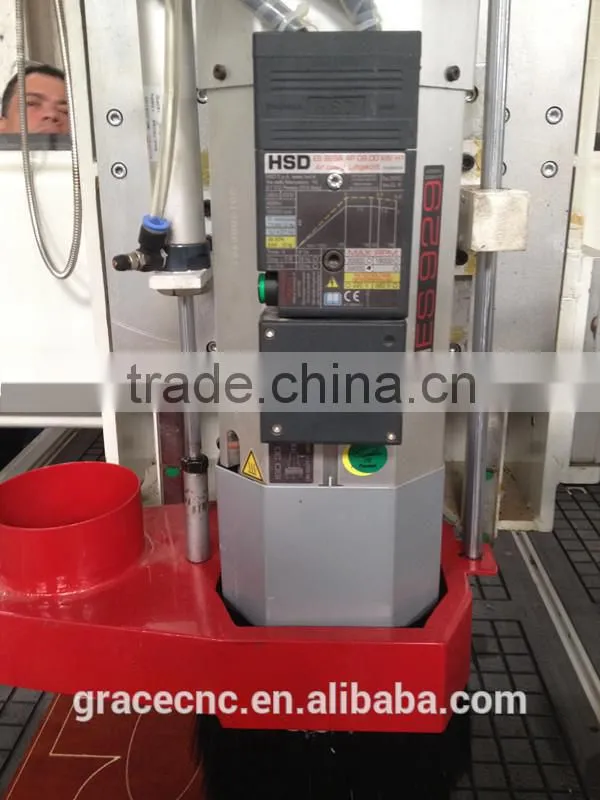

6)6KW China water cooled spindle or 9KW Italian air cooled spindle

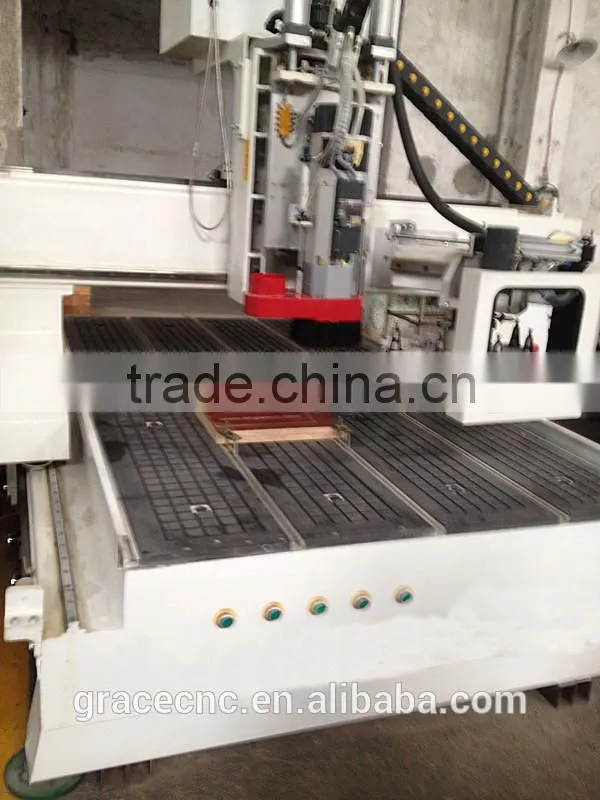

7)vacuun table and dust extraction system with 6 zones separately control
8)auto aligning system ,auto oilling
9)Japan servo motors and inverters
10)Taiwan Delta frequency inverter
Technical Parameter as follows :
NO. Description |
Parameter |
|
1 |
X,Y working area |
1300×2500mm |
2 |
Z working area |
200mm |
3 |
Software |
UCANCAM and Artcam |
4 |
Processing precision |
±0.02mm |
5 |
Reposition precision |
±0.005mm |
6 |
Table structure |
T slot |
7 |
X,Y,Z structure |
Z ballscrew X,Y gearwheel |
8 |
Self-consuming power |
2.8KW |
9 |
Max ilding speed |
50000mm/min |
10 |
Max working speed |
30000m/min |
11 |
Spindle power |
6KW China water cooled spindle or 9KW Italian air cooled spindle |
13 |
Working voltage |
AC380V/50Hz |
14 |
Spindle rotating speed |
0-24000rpm/min |
15 |
Drive Motor |
Japan servo motor |
16 |
Operation system |
Taiwan Syntec control system or LNC control system |
17 |
Net weight |
3000kg |
18 |
Gross weight |
3300kg |
Application
1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.
2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.
3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.
5. Model making: to cut materials into different shapes for models making.
6. Stamps making industry: Carving on many different materials like rubber, acrylic, cattle horn, plastic, wood and ink storage materials and so on.

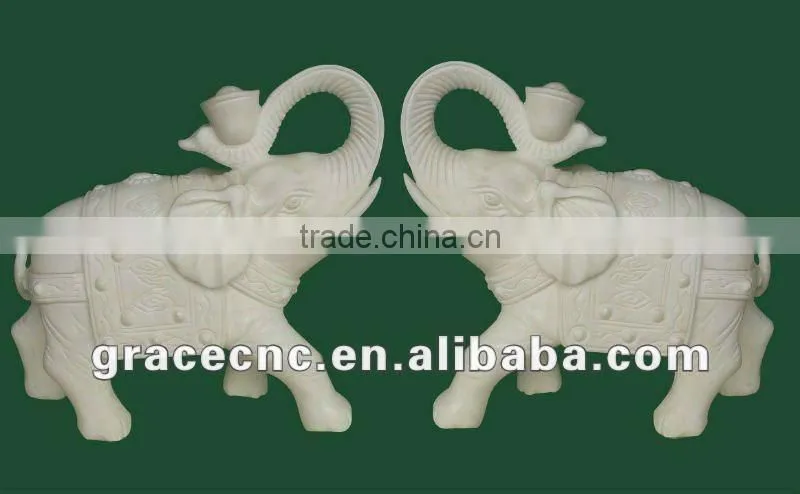

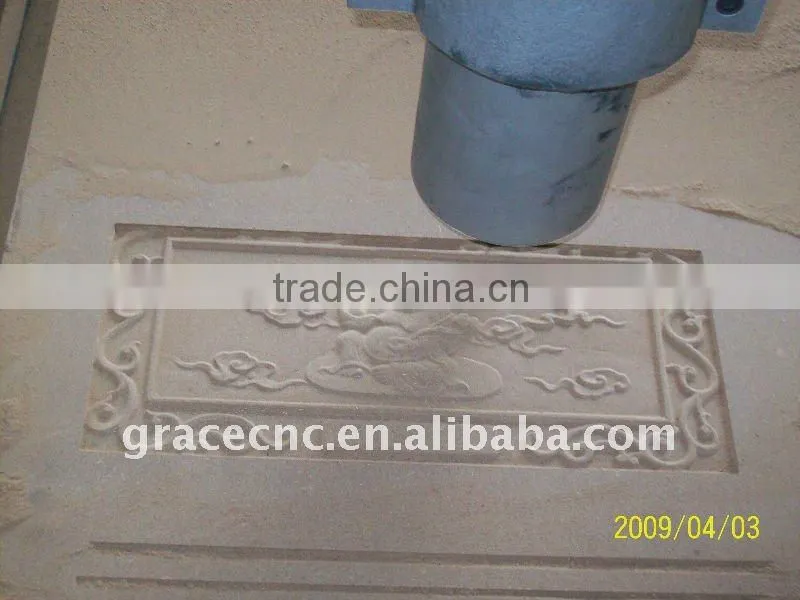

Samples

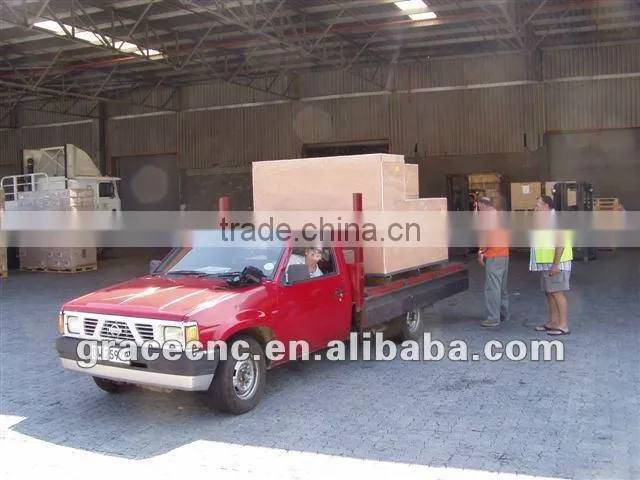

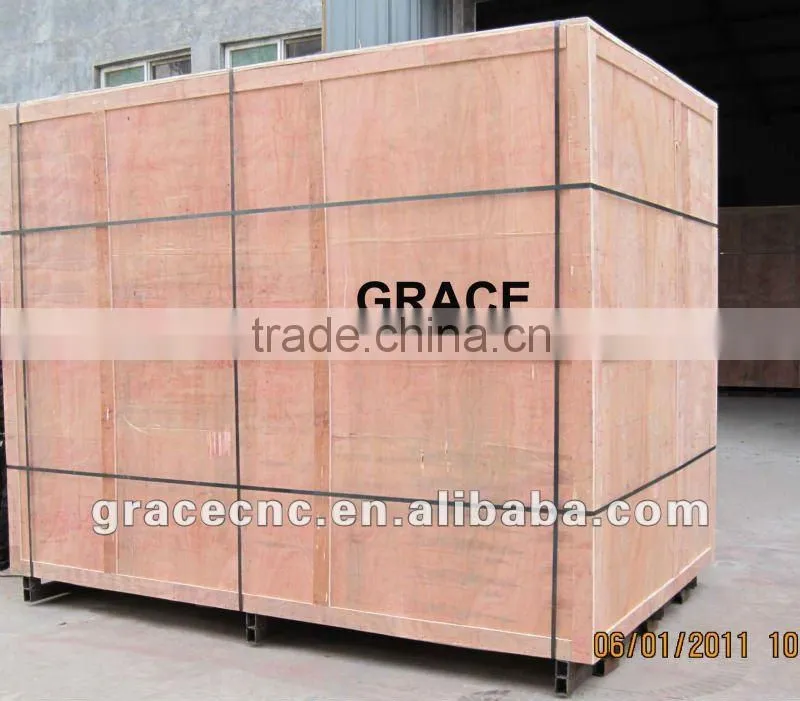

Transport & Packing

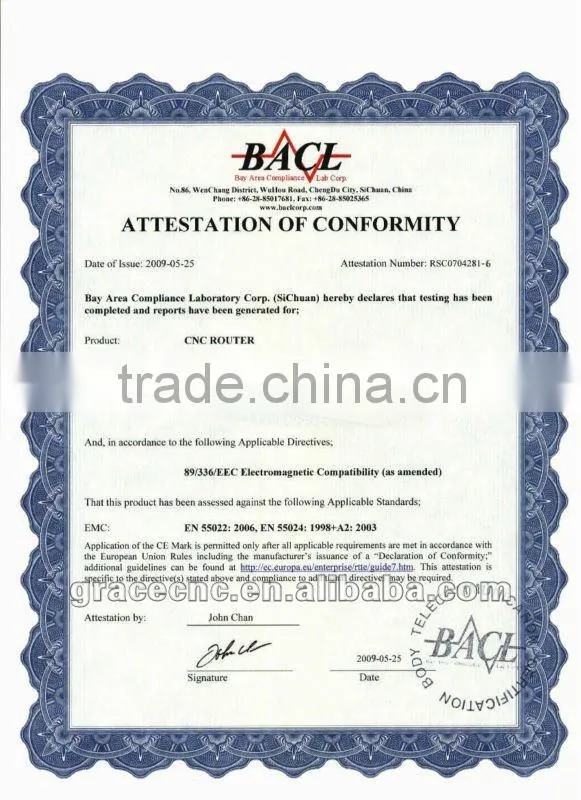

CE certificate
