Specifications
1. water / Air cooled spindle2. DSP control system
3. CAM software
4. CE certificate
CNC Router machine
Product features:
Structure: Whole thick steel structure
Working area: 1300x2500x200mm
Spindle Power: 6 KW
Spindle type: water cooling type, made in China, 1 year guarantee period, 24000rpm.
Orbits: Taiwan Hiwin brand square orbits
Transmission: Z axis Germany ballscrew, X and Y axises gear rack (with pinion).
Machine control system: Original DSP control system /NC studio control system
Compatible file design software: Corel draw, AutoCAD, ARTCAM etc
Files Support:: G code, like files of: *.u00, * mmg, * plt, *.nc etc.
Mechanical orbits: Taiwan brand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers (optional: servo motors and drivers)
Table type: (engraving and cutting) T slot type table or vacuum table.
Spare parts: spare use cutters and collets.
Software: English software with tutorial CD.
Installation manual: CD files
Specifications:
Working area: |
1300x2500x200mm |
Spindle type: |
Water cooled spindle |
Spindle power |
6 kw |
Spindle rotating speed |
0-24000rpm |
Power (except spindle power): |
8.87KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC380±10, 50 HZ |
Max moving speed: |
35m/min |
Max. working speed: |
25m/min |
Worktable: |
T slot table |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:3x3mm,letter:2x2mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision: |
±0.05mm |
System resolution: |
±0.001mm |
Control configuration: |
DSP5.0 |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Spindle cooling way: |
Water cooling by water pump (optional: chiller) |
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM and other CAD or CAM softwares…. |
Cutting thickness: |
0-70mm also (depends on different material) |
Z tool censor: |
yes |
Whole machine dimension: |
3250x2050x1900(mm) |
Net weight: |
1650kgs |
Gross weight |
1780kgs |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. Air cooled type spindle (China brand or Italian brand) 2. Bigger or smaller power spindles (6kw or 3kw) 3. High-grade cooling system (chiller, it has alarming system) 4. double-head or more heads 5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles, logs etc) 6. servo motors (China brand or Japan brand) 8. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc) 9. NCstudio control system 10. other customerized features Note: Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks. |
Metal engraving

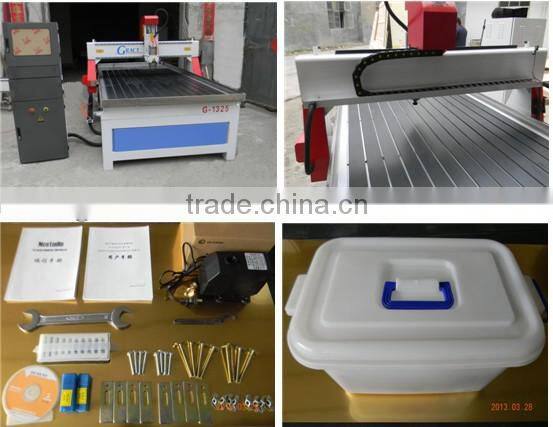

Our machine photos:
Packaging: Standard export wooden case
Shipping: By sea.
1. Quality warranty:
1) The whole machine is 14 months guarantee period.
2) Technical service is whole life time of the machine.
2. After service:
1) To reply your question or solve problem: within 24 hours, whatever online via chatting tools like: MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2) Machine will offer installation video, operation video, manual.
3. Delivery time:
10-15 days after getting prepayment, usually 7-10days.
4. Payment term:
T/T 50% in advance, the balance against copy of bill of lading.
5. Document supply:
Commercial invoice ,Packing list ,Bill of lading (If other documents required , please inform us )
6. The port of shipment:
Tianjin port is available .(If other port required, please inform us)
