Specifications
1. Constant power spindle for metal2. English control system
3. english software
4. small and smart
5. top qualiy
Metal engraving machine G3036
1. Application:
1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic,
two colors board, metals, stone etc.
2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.
3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving,
small or large relief works, cylinder materials engraving, 3d photo engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting,
souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.
5. Model making: to cut materials into different shapes for models making.
6. Stamps making industry: Carving on many different materials like rubber, acrylic, cattle horn, plastic,
wood and ink storage materials and so on.
Note: There are also some other industries application of cnc router machines, pls confirm with us
if you are not sure.
2. Standard features of G3036 desktop:
1.Thick Aluminum alloy structure,
2.Three axises round orbits, ballscrew,
3. DSP control system
4. 2.2kw water cooled Constant power spindle
5. T slot aluminum alloy table,
6. end milling cutters and sharp cutters totally 5pcs (3.175mm, 4mm or 6mm), clamps (ER11-A)
8. Free Software: UCANCAM and ARTCAM
3. parameters
Travel (X/Y/Z) |
300X360X50mm |
Work piece height |
less or equal 50mm |
Table type |
T slot aluminum alloy table |
Machine Structure |
Aluminum alloy |
Motor |
Step |
Transmission |
Special purpose made lead screw |
Spindle motor |
2.2kw water cooled Constant power spindle |
SPINDLE RPM |
24000 RPM/min |
Precision |
0.1mm |
Repeat positioning precision |
<0.01mm |
Max travel speed |
5000mm/min |
Engraving speed |
100-3000mm/min |
Step driver |
three axis independent driver |
Driver power supply |
24V 6 A |
Engraving code |
G-code /U00/mmg/plt |
Software environment |
window98/2000/XP |
volt |
AC220 50-60hz |
Machine weight |
58kgs |

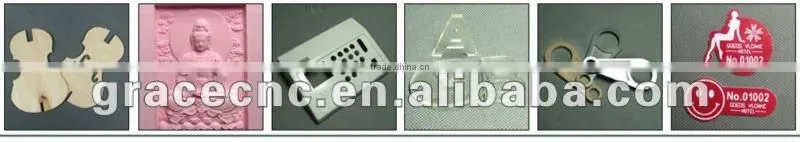

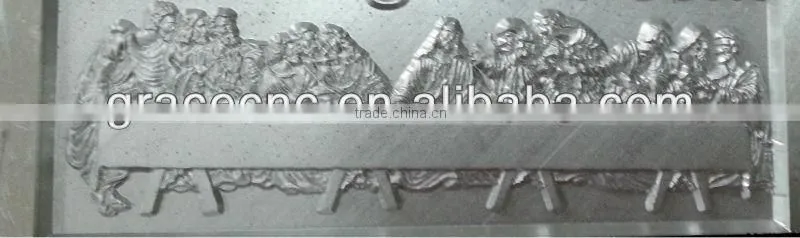

Samples:

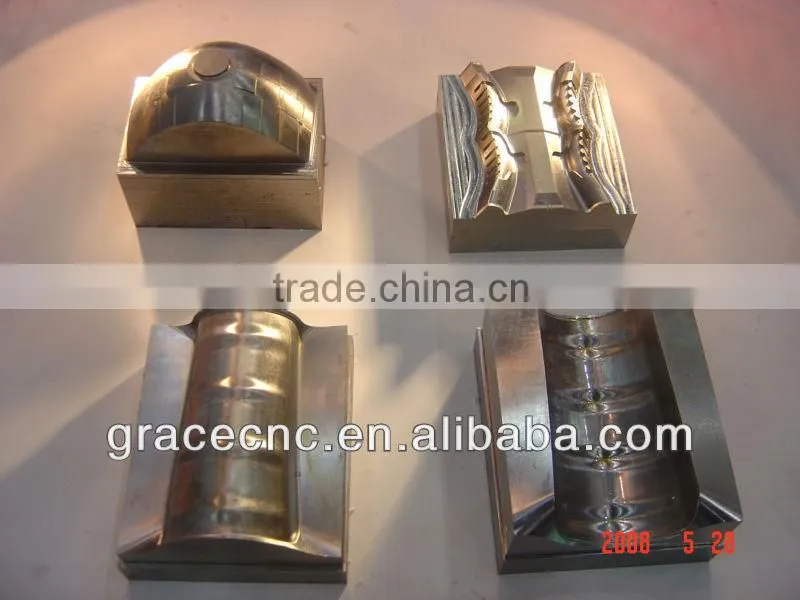

3d Aluminum engraving sample

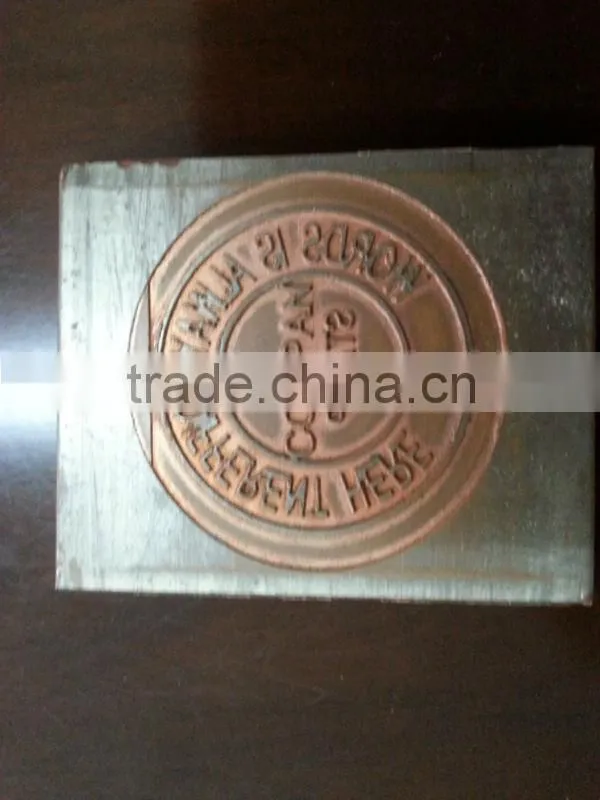

Copper engraving

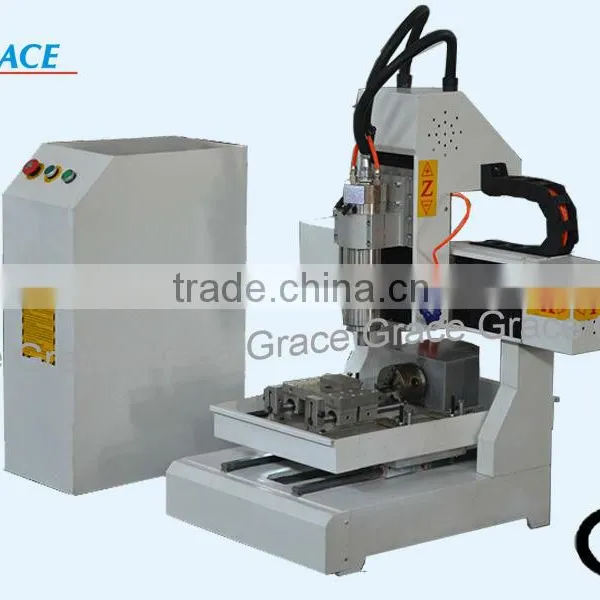

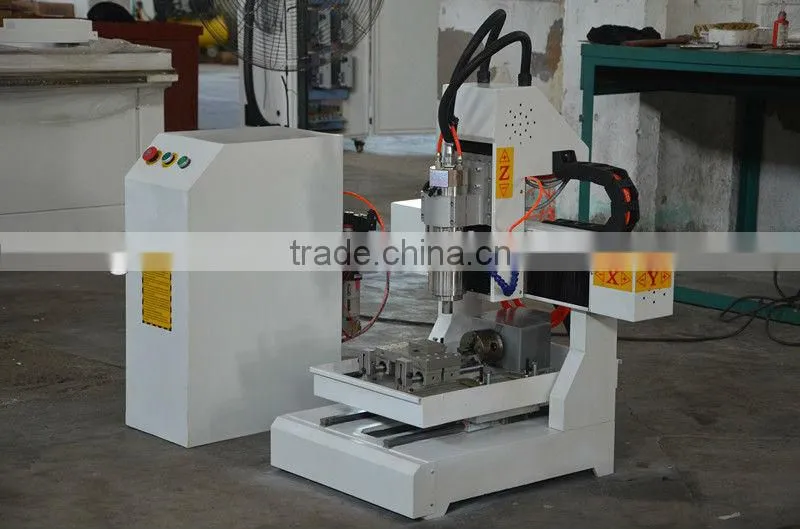

Machine photo:
Payment terms:
a. BY SEA Delivery: 50% in advance, 50% balance after the buyer getting the copy of B/L.
b. BY AIR Delivery: 100% T/T in advance.
Quality warranty:
1. Machine 1 Year
2. Technical service is whole life time of the machine
After service:
1. To reply your question or solve problem: within 24 hours, whatever online via chatting tools like: MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2. Machine will offer installation video, operation video, manual.
Certificate:
