CNC router G6090
Application:
1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic,
two colors board, metals, stone etc.
2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.
3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving,
small or large relief works, cylinder materials engraving, 3d photo engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting,
souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.
5. Model making: to cut materials into different shapes for models making.
6. Stamps making industry: Carving on many different materials like rubber, acrylic, cattle horn, plastic,
wood and ink storage materials and so on.
Note: There are also some other industries application of cnc router machines, pls confirm with us if you are not sure.
Standard features:
1. Cast iron stucture,
2. all round orbits, ballscrew, x and z axis with dust proof,
3. NC Studio controller
4. UCANCAM Software
5. 1.5 W imported bearing water cooling spindle,
6. 20 cutters(3.175, 4, 6), 3 collets
Parameters:
Working area: |
600x900X100mm |
Spindle type: |
Water cooled spindle |
Spindle power |
1.5kw |
Spindle rotating speed |
0-24000rpm |
Power (except spindle power): |
3KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC220±10, 50 HZ |
Max moving speed: |
10m/min |
Max. working speed: |
5m/min |
Worktable: |
T slot table |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:3x3mm,letter:2x2mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision: |
±0.05mm |
System resolution: |
±0.001mm |
Control configuration: |
NCSTUDIO OR DSP |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Spindle cooling way: |
Water cooling by water pump (optional: chiller) |
Graphicformat supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM and other CAD or CAM softwares…. |
Cutting thickness: |
0-70mm also (depends on different material) |
Z tool censor: |
No |
Whole machine dimension: |
1400x1080x1300(mm) |
Net weight: |
180kgs |
Gross weight |
280kgs |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. Air cooled type spindle (China brand or Italian brand) 2. Bigger or smaller power spindles 3. High-grade cooling system (chiller, it has alarming system) 4. double-head or more heads 5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles, logs etc) 6. servo motors (China brand or Japan brand) 8. Auto tool change system (this system need other systems accordingly, like LNC control system, servo motors etc) 9. other customerized features
Note:Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks. |
Samples and industries application:
Wood applications and furniture making
Metal engraving
PCB circuit board working

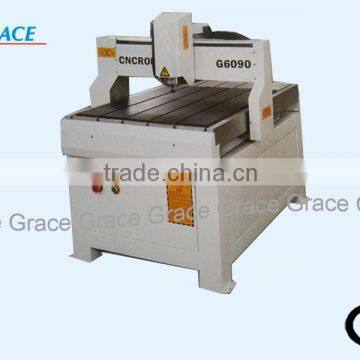

Our machine photos:
Other type:
Packaging: Standard export wooden case
Shipping: By sea.
1. Quality warranty:
1) The whole machine is 12 months guarantee period.
2) Technical service is whole life time of the machine.
2. After service:
1) To reply your question or solve problem: within 24 hours, whatever online via chatting tools like:
MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2) Machine will offer installation video, operation video, manual.
3. Delivery time:
10-15 days after getting prepayment, usually 7-10days.
4. Payment term:
T/T 50% in advance, the balance against copy of bill of lading.
5. Document supply:
Commercial invoice ,Packing list ,Bill of lading (If other documents required , please inform us )
6. The port of shipment:
Tianjin port is available .(If other port required, please inform us)
