Specifications
1)engraving and milling2)servo motors and drivers.
3)Collet: ER25
4)CE certificate
5)Control system: Taiwan LNC 515i
metal milling machine G600
Standard Features:
1. spindle: 4kw high features spindle, with collets to satisfy customer’s different request on work pieces. With cooling air conditioner.
2. Japan Yaskawa servo motors and drivers.
3. Two nuts ballscrew with diamemter 30mm.
4. Taiwan Hiwin orbits, width 30mm.
5. Taiwan 5.5kw frequency inverter
6. Good rigidity: x axis and the machine gantry is a whole unit
7. Group of clamps
8. Tool box: include necessary tools.
Specifications:
1. X/Y/Z axis motion positioning accuracy: 0.009/0.009/0.007mm
2. X/Y/Z axis repeat positioning accuracy: 0.005/0.005/0.005mm
3. X/Y/Z travel area: 650x650x270mm
4. Working area: 600x600mm
5. Max work load: 300kgs
6. Spindle speed:9000—18000rpm(120)
7. Collet: ER25
8. Fast move speed: 11m/min
9. Max cutting feed speed: 5m/min
10. Control system: Taiwan LNC 515i
11. Working voltage: 380v 50hz, 3phase
12. Whole machine weight: 2500kgs
13. Whole machine dimension: 1760×1800×2100mm
Application:
1. Advertising industry: cutting/engraving/drilling/photo engraving on Metals: Aluminum,
copper, iron, steel, nonmetallic materials: wood, MDF, bamboo, plastic, PVC, acrylic, two
colors board, metals, stone etc.
2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum,
alloy, steel etc.
3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making,
3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo
engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making,
small gift cutting, souvenirs making, Carving various decoration letters, figures on small
windows, fences, wall, etc.
5. Model making: to cut materials into different shapes for models making.
6. Stamps making industry: Carving on many different materials like rubber, acrylic, cattle
horn, plastic, wood and ink storage materials and so on.
7. Gift making: all kinds of small things processing, like jewelry, chains, small decorations etc.

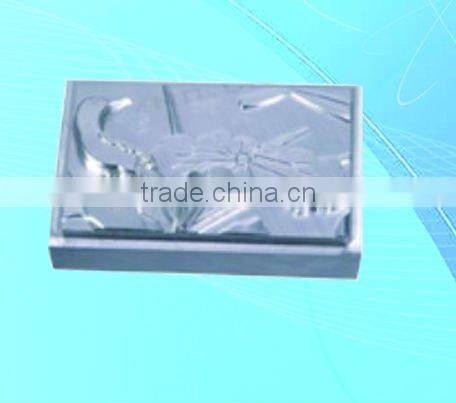

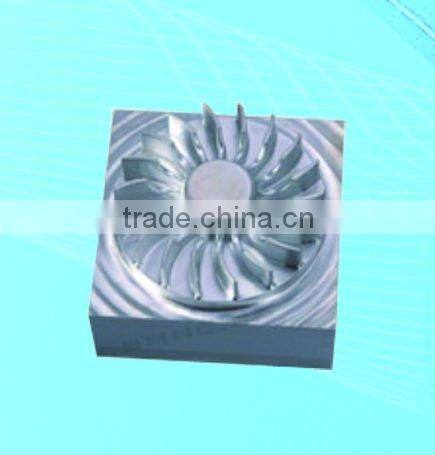

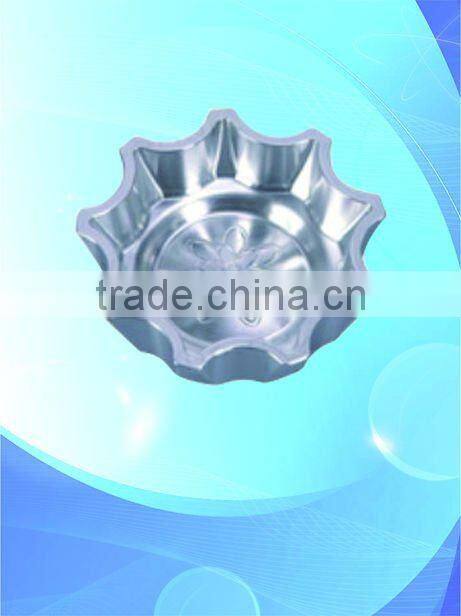

Samples:
