Specifications
Metal Working Machine1)semi-enclosed structure
2)Taiwan HIWIN orbits
3)NC Studio control system
4)Servo motor
metal mould machine G1212
Standard Features:
1. working size: 1200x1200x300mm
2. Whole cast iron structure
3. Servo motors and drivers
4. Original NCstudio control system
5. semi-enclosed structure
6. Taiwan HIWIN square orbits, and ball Screw.
7. computer monitor (LED)
8. Standard export package (veneer wood case)
Technical Parameter:
Specifications |
Parameters |
X,Y,Z axis moving precision |
±0.01/300mm |
X,Y,Z axis repositioning accuracy |
±0.01mm |
X,Y,Z axis motion sensitivity |
<0.005mm |
Working platform degrees |
<0.05mm |
X,Y, Z axis working area |
1200*1200 *300mm |
Table size |
1220*1220 mm |
Z axis working height |
300 mm |
Max. Table working load |
(120kg) <0.02mm |
Machine weight |
2.5T |
Main axle rotating speed (variator) |
3000-24000rpm |
Max. Moving speed |
6m/min |
Max. Working speed |
6m/min |
X, y, axis Verticality |
0.02/300mm |
Engraving maximum power consume |
4KW/5kw |
power |
220v |
Spindle motor output power |
Frequency motor 3KW( water-cooled) |
Drives system |
AC step |
Machine picture:
Application:
metal cutting machine: professional metal engraving, cutting, drilling, photo engraving, can process on very tiny metals.
It is also specially used for arts and crafts working, like keychains processing, bracelet, ring, earing, jewelry, watch and other small metal parts engraving, carving, and letters engraving and so on.

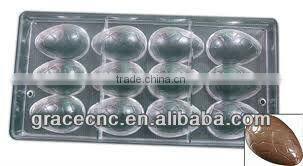

Samples:
