Specifications
1. water / Air cooled spindle2. DSP control system
3. CAM software
4. CE certificate
5. Taiwan HIWIN orbit
Wood CNC Router machine
Product features:
Structure: Whole thick steel structure
Working area: 1300x2500x200mm
Spindle Power: 4.5 KW
Spindle type: water cooling type, made in China, 1 year guarantee period, 24000rpm.
Orbits: Taiwan Hiwin brand square orbits
Transmission: Z axis Germany ballscrew, X and Y axises gear rack (with pinion).
Machine control system: Original DSP control system /NC studio control system
Compatible file design software: Corel draw, AutoCAD, ARTCAM etc
Files Support:: G code, like files of: *.u00, * mmg, * plt, *.nc etc.
Mechanical orbits: Taiwan brand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers (optional: servo motors and drivers)
Table type: (engraving and cutting) T slot type table or vacuum table.
Spare parts: spare use cutters and collets.
Software: English software with tutorial CD.
Installation manual: CD files
Application:
1. Advertising industry: cutting/engraving/drilling/photo engraving on wood, MDF, bamboo, plastic, PVC, acrylic, two colors board, metals, stone etc.
2. Manufacturing industry: engrave, cut, drill, photo engraving on copper, iron and aluminum, alloy, steel etc.
3. Furniture making: wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving,
small or large relief works, cylinder materials engraving, 3d photo engraving etc.
4. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting,
souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.
5. Model making: to cut materials into different shapes for models making.
6. Stamps making industry: Carving on many different materials like rubber, acrylic, cattle horn, plastic,
wood and ink storage materials and so on.
Note: There are also some other industries application of cnc router machines, pls confirm with us if you are not sure.
Technical Parameter and price:
No. |
Performance |
Parameters |
|
1. |
Working area |
X |
1300mm |
Y |
2500mm |
||
Z |
200mm |
||
2. |
Whole machine size |
X |
1800mm |
Y |
3100mm |
||
Z |
1500mm |
||
3. |
Precision |
Processing precision |
±0.01mm |
Reposition precision |
±0.01mm |
||
4. |
Structure |
Table structure |
T slot (PVC + Aluminum) |
XYZ structure |
Rack and ball screw |
||
Machine structure |
Whole cast Seamless steel |
||
5. |
Speed |
Maximum travel speed |
35000mm/min |
Maximum working speed |
25000mm/min |
||
6. |
Spindle |
Spindle power |
4.5kw |
Spindle speed |
0-24000rpm |
||
Cooling |
Water cooling/Air cooling |
||
Diameter |
125mm |
||
Cutter collets |
ER25 for 3.175mm, 4mm,6mm, 8mm and 12.7mm |
||
7. |
Inverter |
Fuling brand 4.5kw |
|
8. |
Transmission mode |
XYZ axis |
Taiwan Hiwin square rail |
9. |
Operating system |
Original DSP control system (can upgrade) |
|
10. |
Motor type |
Stepper motor |
|
11. |
Run command |
G code |
|
12. |
Software |
UCANCAM V9 (Original: dongle+tutorial CD+ manual) |
|
13. |
Software compatibility |
ARTCAM, Type3, Casmate, Proe, UG, Artgrave ect. |
|
14. |
Work voltage |
380v 3phase |
|
15. |
Working environment |
0-35°C, humidity: 10-70% |
|
16. |
Computer system compatibility |
Win98/Win2000/XP/Wind7 |
|
16. |
Warranty |
14 months after shipping date |
|
17. |
Maintenance and safety terms |
Will be offerred with the documents |
|

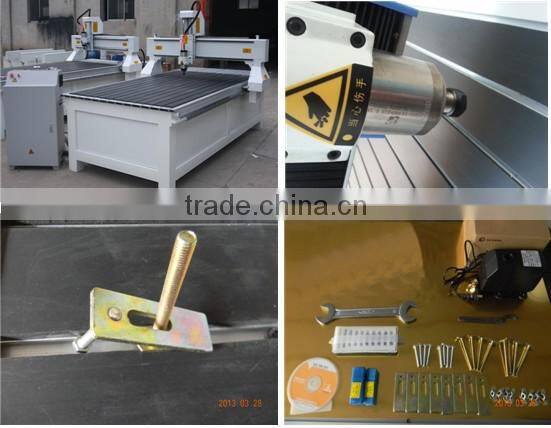

Our machine photos:
