Specifications
1. carving and cutting2. CNC Router, OSAI system
3. servo motor and dirvers
4. CE Certificate
5. ODM and OEM service
5 Axis CNC machine G1224
Introduction of our 5 axis CNC machine:
5 Axis CNC Routers feature heavy-duty thick walled tube frame construction, providing a rigid structure to dampen vibration and assures long-term accuracy and repeatability. Each ball screw and rail mounting surface is precision machined.
Main Features:
1. This machine adopts the European OSAI numerical control system, high powerful, high
processing density, and high speed.
2. All components are imported from international top brand.
3. Z axis height can be increased to 1.5 meters, large surface processing, suitable for large
and medium-sized three-dimensional surface processing.
4. Intelligent processing cross-border protection, to prevent the mechanical impact due to
excessive design documents processing.
5. Diversity control can separately control the processing speed, idling speed, cutting speed, greatly improving the quality of processed product and
processing efficiency.
Application fields and materials:
1. The mold industry: casting, automotive, wind power, ships, boats, aerospace industry, rail
transport.
2. The instrument industry: three-dimensional surface of large musical instruments, cutting
and shaping.
3. Applicable materials: polystyrene foam (EPS), and wood, timber and non-metallic carbon
hybrid materials.
1 |
Stroke range |
X axis |
1300mm |
|
|
|
Y axis |
2500mm |
|
|
|
Z axis |
950mm |
|
|
|
C axis |
±213° |
|
|
|
A axis |
±120° |
|
2 |
Motor type |
Japanese YASKAWA BRAND Servo motors and drivers |
||
3 |
Command code |
G code, F/S Command compatible |
||
4 |
Working voltage |
AC380V/50HZ |
||
5 |
Operation system |
OSAI System |
||
6 |
Control system training time (if no experience of this) |
2 weeks |
||
7 |
Spindle |
Italian HSD air cooled spindle 10kw |
||
8 |
Inverter |
Taiwan DELTA inverter |
||
7 |
Spindle max rotate speed |
24000RPM/MIN |
||
8 |
Table size |
1300*2500mm |
||
9 |
Table type |
T slot or Vacuum table (with vacuum system) |
||
10 |
Tool change Type |
Auto tool change type with 8 tool stations |
||
11 |
software |
ALPHACAM / POWER MILL software |
||
12 |
Total power |
15kw |
||
13 |
voltage |
3phase, 380v 50hz |
||
14 |
Repeat positioning precision |
±0.01mm |
||
15 |
Resolution ratio |
±0.001mm |
||
16 |
Maximum speed |
X Axis |
40m/min |
|
|
|
Y Axis |
40m/min |
|
|
|
Z Axis |
20m/min |
|
17 |
Overall dimension |
3810x4000x3000mm |
||
18 |
Gross weight |
3T |
||

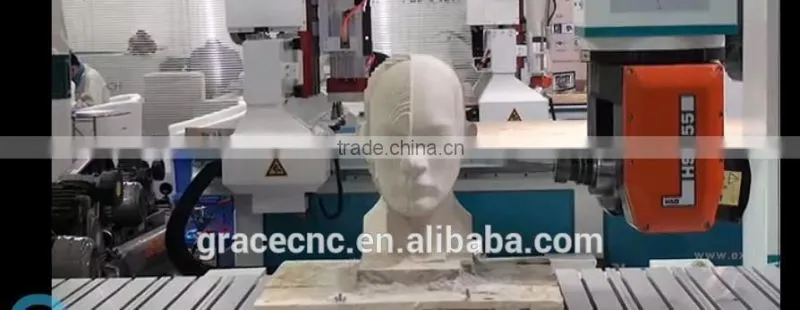

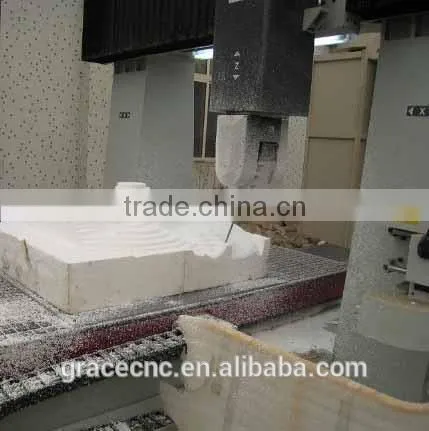

Working picture:

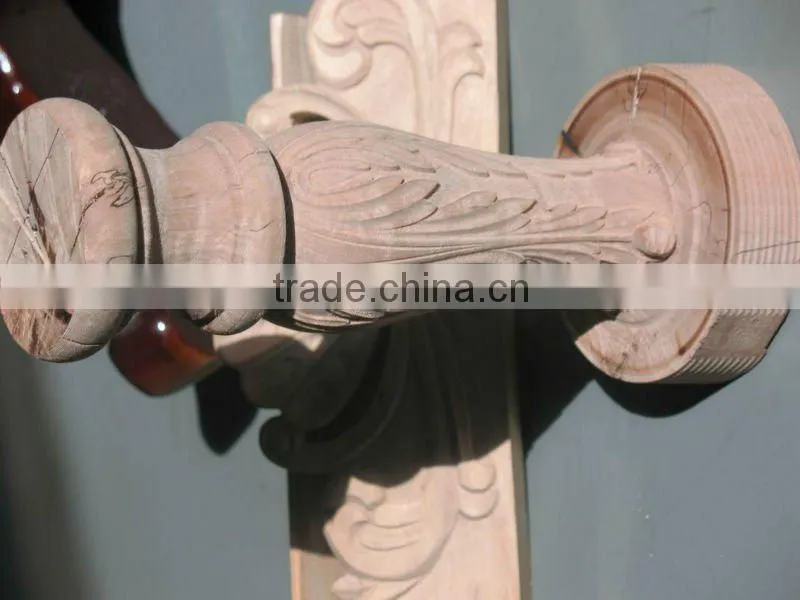

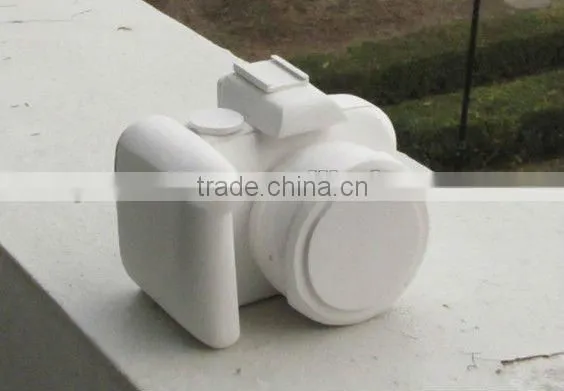

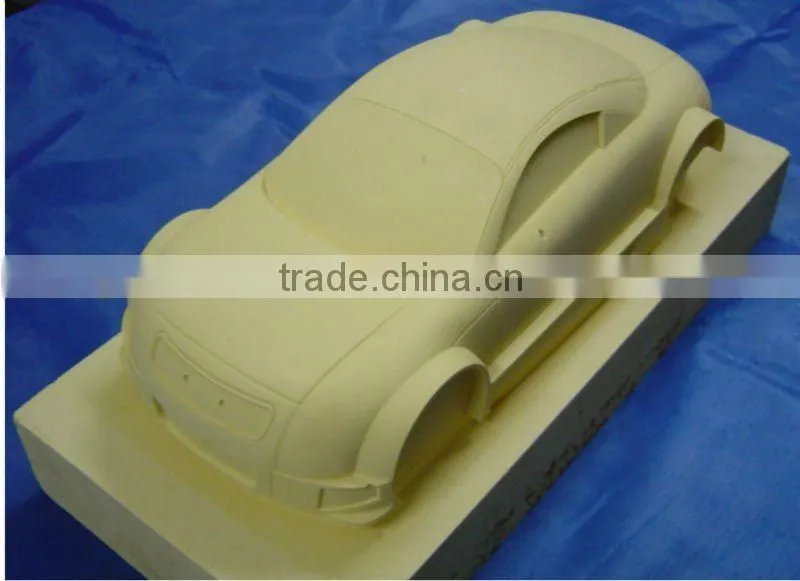

Samples:
