Model:ZXH-B1200

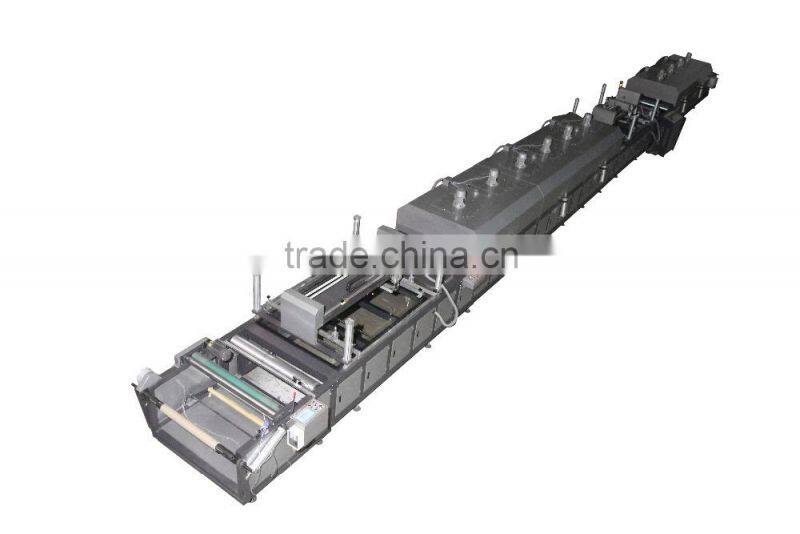

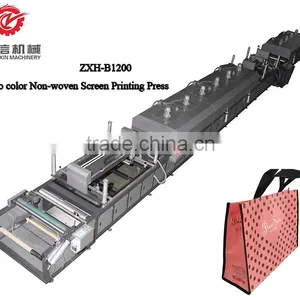

Name:Non-woven Two Color Screen Printing Machine
Features:
1-Automatic feeding, printing, drying and collecting, saving labor and overcome the constraints of
weather conditions.
2-Pressure equalization and thick ink layer, adapt to the printing of high-grade non-woven
products.
3-Various size of screen frame plate is available.
4-Multiple patterns can be printed simultaneously when do large format printing, which is largely
improved the work efficiency.
5-Maximum effective pattern printing gap low to 10mm, largely reduce the material consumption.
6-The driving of the whole machine and overlay systems adopts servo motor control, ensure the
printing precision.
7-Printing position is accurate and stable, can be used together with transverse cutting, slitting
and non-woven bag making machine, which is largely improved the production efficiency.
Main technical parameters:
Model |
ZXH-B1200 |
Width of Feeding Material Roll |
1250mm |
Max Diameter of Material Roll |
1000mm |
Max Printing Size |
1300*1200mm |
Non-woven Basis Weight(thickness) |
45-158 g/m² |
Printing Speed |
500-800m/hour |
Total Power |
30KW/380V |
Overall Dimension |
22000*1900*1600mm |
Weight |
4500KG |
