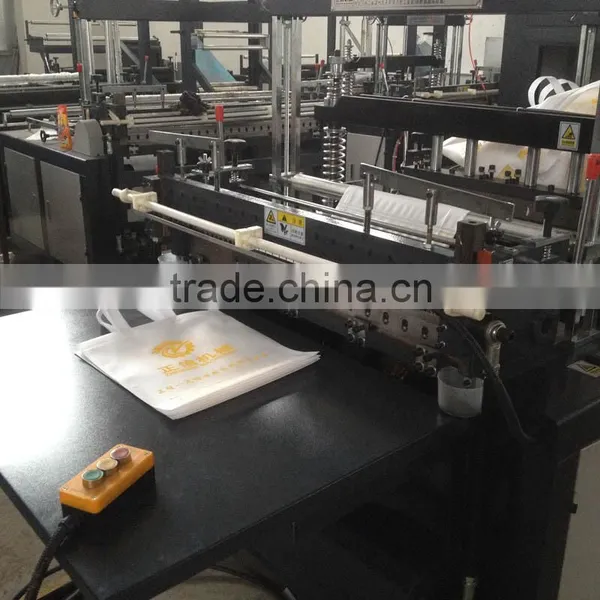

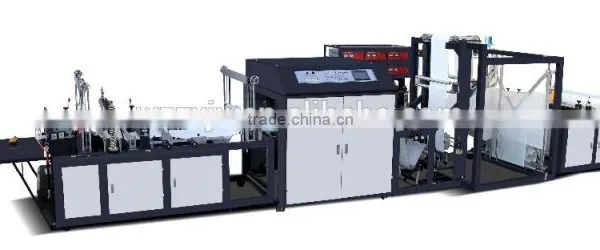

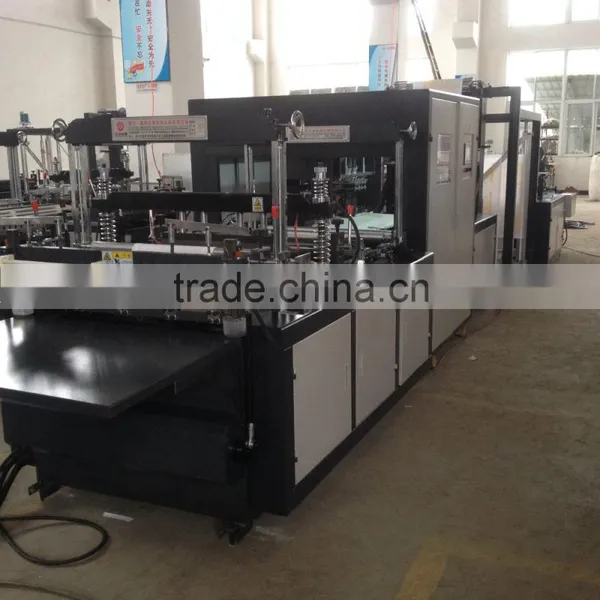

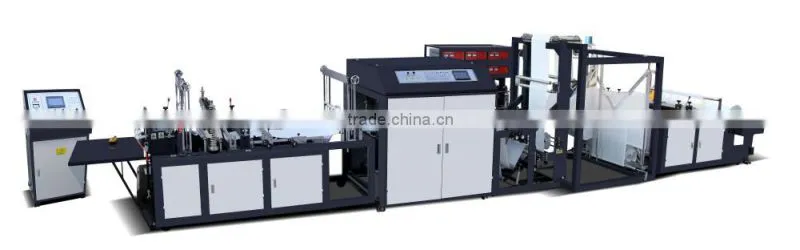

Product introduction

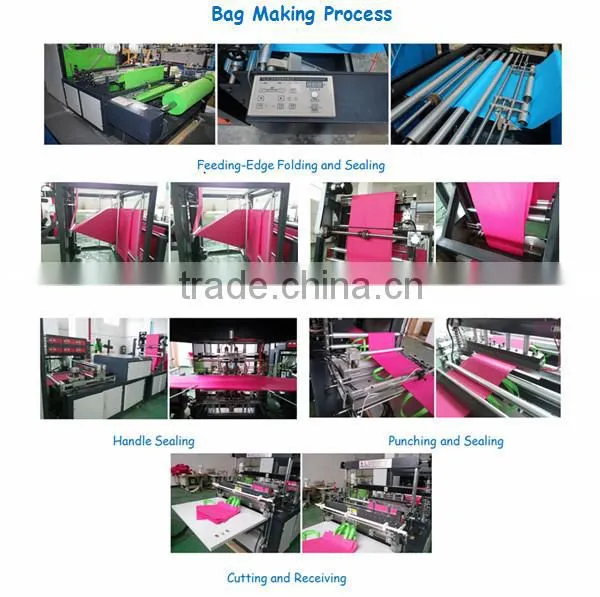

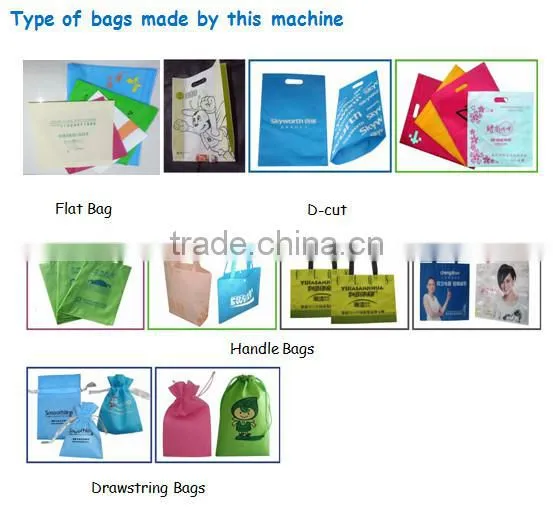

This machine adopts mechanical, electrical, optical and pneumatic integration technology, It’s a advanced equipment and has the function of automatic handle loop bonding(speed up to 75pcs/min, equal to 5 worker’s bonding speed or 5 handle loop bonding machine), suitable for producing different specs and shapes of non-woven fabric bags(handbags, flat bags, vest bags and drawstring bags etc.). Which can replace the traditional handle-sealing, reduce labor and manufacturing cost , vast apply to the packing of costume, shoes, wine, gift etc.
Machine Advantage
1-We design and develop this machine according to many customer’s feedback, as our latest design, it’s features elegancy and high efficiency.
2-Compare to the old generations, this machine could largely save space, labor and your production time.
3-Adopts top brand electricity, optical and pneumatic components, features reliable, long working life and easy maintenance.
4-All the bags adopts thermal bonding by ultrasonic welding(Taiwan top brand ultrasonic device), features strong sealing effective, high speed, tidy and environmental friendly.
5-With experienced engineers and well-trained technical workers and continuous innovation and reform, ensure our machine’s quality and mechanical stability.
6-Equipped with auto loading device, Taiwan touch screen, computer control, auto feeding, counting and stopping, easy to operate, one or two person can handle it easily.
7- With CE certification and ISO9001 certification.
Machine Features
1-This machine adopts top brand PLC touch screen, which can be edited.
2-Auto counting and stopping when setting numbers freely;
3-High voltage static processor and auto constant temperature heating controller;

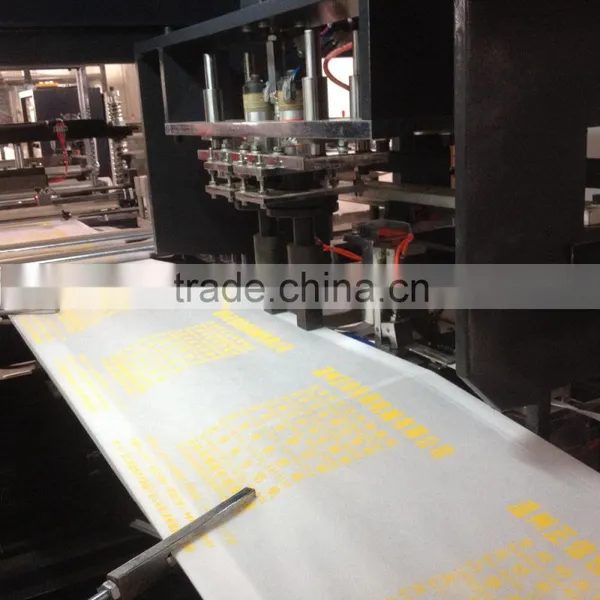

4-Equipped with stepping motor(computer fixed length), manual unwinding magnetic powder tension controller, photoelectric tracking, printing color mark track orientation, auto counting and alarming, auto punching and auto bonding handle etc., which make it accurate and stable, firm sealing and beautiful products.
5-All of the bags adopts thermal bonding by ultrasonic welding, such as bag mouth folding, side sealing etc. which makes the machine fast and easy to operate.
6-The vest bag automatic punching machine is optional when do the vest bags.
Main technical paremeters:
Model |
ZXL-D700 |
ZXL-D800 |
Bag width |
100-800mm |
100-800mm |
Bag height |
200-600mm |
200-700mm |
Handle Loop Length |
380-600mm |
380-600mm |
Bag Material Basis Weight(thickness) |
35-100g/m² |
35-100g/m² |
Handle Material Basis Weight(thickness) |
60-100g/m² |
60-100g/m² |
Production Speed |
20-120pcs/min |
20-120pcs/min |
Handle Bonding Speed |
30-75pcs/min |
30-75pcs/min |
Power Supply |
380v/220v |
380v/220v |
Total Power |
15kw |
18kw |
Overall Dimension |
9600*2600*2100mm |
9800*2700*2300mm |
Weight |
2500KG |
3000KG |
The machine configration:
Feeding device |
1set |
Folding and traction device |
1set |
Vertical folding device |
1set |
Feeding device:
unwinding method |
Magnetic powder tension control |
Clamping device |
Inflatable shaft φ3″(φ76mm) |
Unwinding diameter |
φ1000mm |
Control device and unwinding device:
Clamping device |
Inflatable shaft φ3″(φ76mm) |
Correction device |
Use automatic correction system |
Automatic stop without material |
Using automatic travel switch stop material ,high precision |
Feeding board |
Stainless steel board(triangle) |
Electril control system |
Non-woven bag(two drive)bag making system |
Ultrasonic system |
300mm2pcs (Taiwan) 70mm2pcs(Wenzhou Zhengxing) 55mm 6pcs(Wenzhou zhengxin) |
Temperature control system |
Temperature control components 1pcs |
Operation method |
The man-machine touch |
Relay |
Omron |
Pneumatic element |
AirTAC (Taiwan) |
Commonly used appliances brand:
Temperature displayer |
CHINT temperature meter,show preheat roll surface temperature |
Commonly electrical components/switch |
CHINT |
Frequency converter |
DEVER(Taizhou) |
Frequency motor |
Dott(Taiwan) |
photocell |
Italy |
Others:
Screen |
Weinview (Taiwan)(LCD touch screen)built-in PLC |
Bear |
Japan bear company (most) |
Spare part as free:
Spring |
30pcs |
Hall switch |
1pc |
Displacement switch |
2pcs |
Contactor |
1pc |
Relay |
2pc |
Tool box |
1set |
Oil gun |
1pc |
manual |
1 pc |

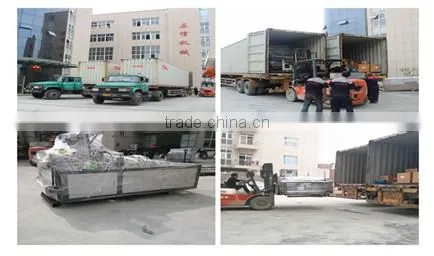

Packing ways:
1-Before packing, we grease the metal parts with white oil, which will make it rust-proof, water-proof and shinning.
2-The standard packing is strong wooden pallet(or channel steel pallet) with film covered.
3- Wooden case is available or according to the customer’s request.
4-For model ZXL-D700, it would be packed in five pallets, the packing size as follows:
Part One: 2150*1950*1700mm
Part Two:2500*1670*2300mm
Part Three: 1800*1400*1780mm
Part Four: 2250*1160*1670mm
Part Five: 1260*900*1750mm
