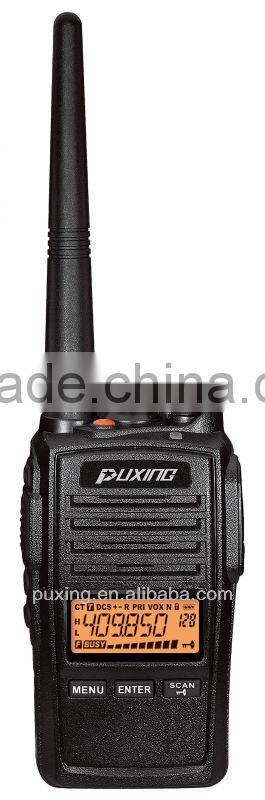

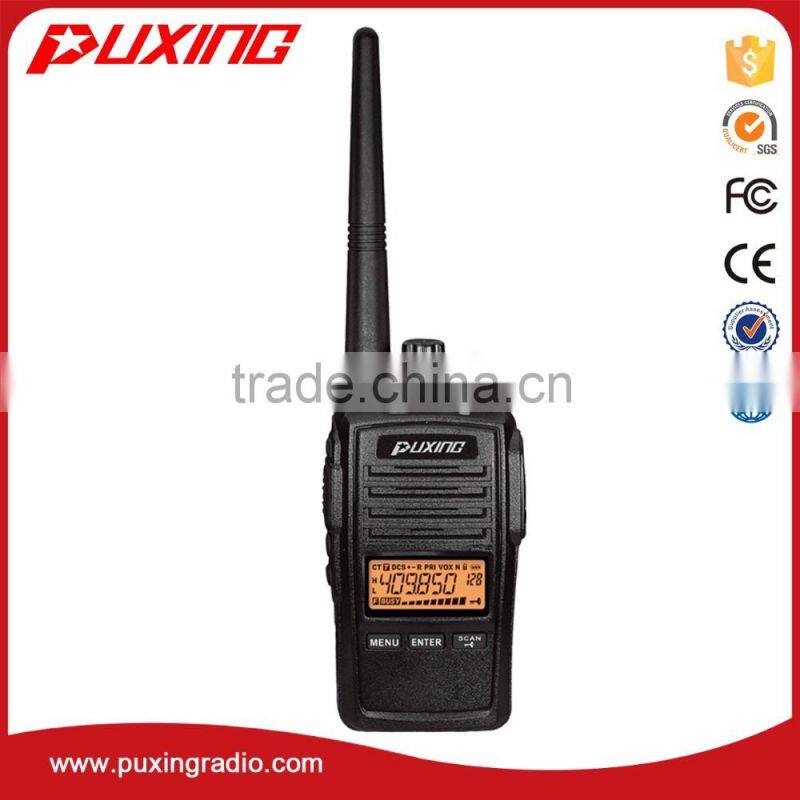

IP67 Transceiver PX-578 UHF/VHF 5W

Name: IP67 Transceiver PX-578 UHF/VHF 5W
Brand: PUXING/OEM
SKU: 109990489
Availability: InStock

Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

PUXING/OEM

Model Number:

PX-578

Xiamen Puxing Electronics Science & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name PUXING/OEM

Model Number PX-578

Type Handheld

Dimensions 110X50X35mm

Frequency Range 136-174/400-470/446/245mhz

Storage Channel 128

Talk Range 5-7km

PX-578 professsional FM transceiver is a high quality water proof IP67,it is great choice for people who often work outdoor and wade through water.with its compact design and durable housing,it achieves great anti-dropping performance and better communication voice.IP67, ANI identification code DTMF/5tone/MSK tone,scrambler availabe 8groups.wide and narrow band.end roger.
General
Frequency Range	VHF: 136-174MHz UHF: 400-470MHz
Channel Capacity	128 channels
Channel Spacing	25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band)
Phase-locked Step	5KHz,6.25KHz
Operating Voltage	7.4V DC
Battery Life	1200mAh/customized to 1600mAh
Frequency Stability	±2.5ppm
Operating Temperature	-20°C +55°C
Size(not including antenna)	115mm×55mm×35mm
Weight(with battery, antenna)	238g
Transmitter (ETSI EN 300 086 standard testing )
	Wide band	Narrow band
Power Output	4W/5W
Modulation	16KΦF3E	11KΦF3E
Adjacent ChannelPower	≥70dB	≥60dB
Hum & Noise	≥40dB	≥36dB
Spurious Emission	≥-36dB	≥-36dB
Audio Response	+2~-3dB(0.3~3KHz)	+2~-3dB(0.3~2.25KHz)
Audio Distortion	≤5%
Receiver (ETSI EN 300 086 standard testing )
	Wide band	Narrow band
Sensitivity (12dB Sinad)	≤0.25μV	≤0.35μV
Adjacent ChannelSelectivity	≥55dB	≥55dB

	≥55dB	≥55dB
Intermodulation	≥65dB	≥60dB
Spurious Rejection	≥55dB	≥55dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.55KHz)
Hum & Noise	≥45dB	≥40dB
Audio distortion	≤5%
Audio power output	500mW / 10%
