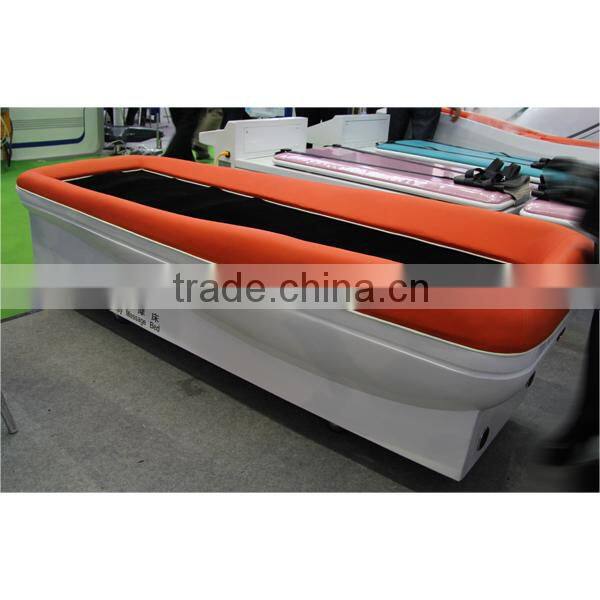

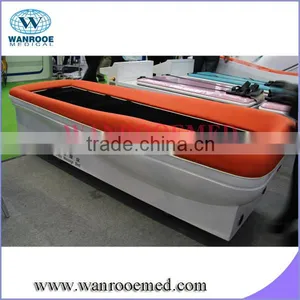

DB200 Computer Software Control Jade Massage Bed

DB200 Computer Software Control Jade Massage Bed

 DB200 Far-infrared Physiotherapy Massage Bed is a physical therapy product developed by our company integrating traditional Chinese medicine theory with modern science and technology, through many years of research and development. It combines rolling, vibration, far-infrared heat therapy and magnetic therapy, and is specially designed with 32 floating massage wheels, which curve to the human body during massage. You can adjust the intensity of the massage according your weight for physical treatment and relief.

Model DB200 far-infrared physiotherapy massage bed adopts the advanced computer software control and light-touch key setting function-LCD display screen(see the illustration above).It can organically combine the far-infrared ray, rolling massage and vibrating massage, which are beneficial to the human body. In the meantime of making the rolling massage (to the overall body, upper part, lower part, neck, waist, leg); vibrating massage; program massage, it can set the far-infrared heat therapy.
This product is of the reasonable design, superior security and reliability, convenient use, fine and exquisite manufacture. The outer is made of high intensity FRP (Fiberglass-Reinforced Plastics), last the use life compared to other material. It has the functions such as relieving pain, dredging the channels and collaterals, promoting the blood and lymph liquid circulation, improving the tissue nutrition, smoothing the joint, regulating the internal organs; the vital energy and blood. It fulfills the multi-functional physiotherapy and recovery, strengthens the anti-disease capability of the human body.
Product scope
The product is mainly used for physical massage therapy in medical departments for prominent intervertebral lumbar disc disease, acute and chronic pain in the legs and waist and for cervical vertebra problems.
Specification
1)     Overall dimension (L×W×H): 2400mm×900mm×450mm;
2)     Net weight: 135Kg,Gross weight: 160kg
3)   Packing size: 2310×880×725mm
Technical characteristics
1.     Carriage stroke: Not less than 800 mm.
2.     Range of rolling massage (L × W): Not less than 1600 mm × 380 mm.
3.     Period of rolling massage: 40s ± 5s.
4.     Timing of rolling massage:
1)  Timing range: 1 min - 90 min with 1 min steps;
2)  Timing error: ±5%.
5.     Vibrating massage
1)  Range of vibrating massage (L × W): Not less than 800 mm × 200 mm.
2)  Vibration load: Vibration shall not stop when the average surface load reaches 135 kg.
3)  Vibration frequency: 50 Hz ± 3 Hz.
6.     Heat treatment
1)  Temperature range: 30ºC-65ºC.
2)  Temperature control error: -5ºC~+8ºC.
3)  Temperature heating time: time spent heating up from 23ºC to 35ºC shall not exceed 20 min.
4)  Temperature homogeneity: shall not exceed 6ºC in the range of 1600 mm × 380 mm.
7.     Magnetic induction: 300 ± 50 mT.
8.     Machine noise: not exceed 55 db (A).
9.     Classification: Type B of Class I; continuous operation.

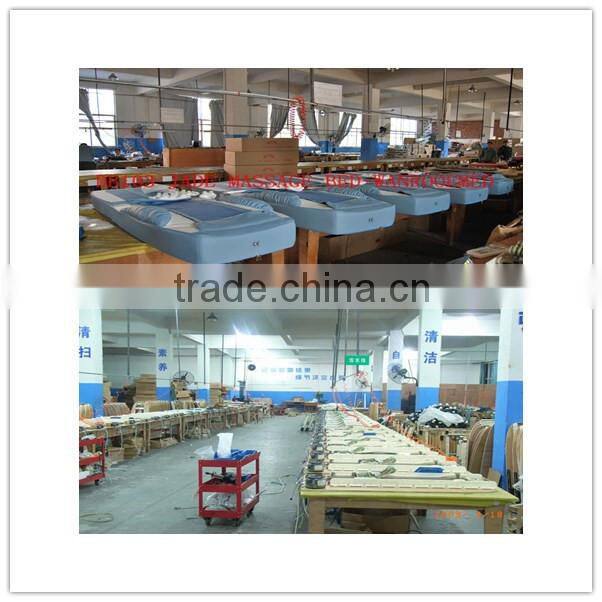

Massage Bed Factory Shows:

1. 24 hours service

2. OEM and ODM service

3. we can provide you a integrate solution for your hospital project

4. professional manufacturing and export team give you good service beyond your expect

5. 1 year guarantee standard, and whole life repair at cost.

6. we can provide origin of certificate, so that you can get a import tax preferences.
