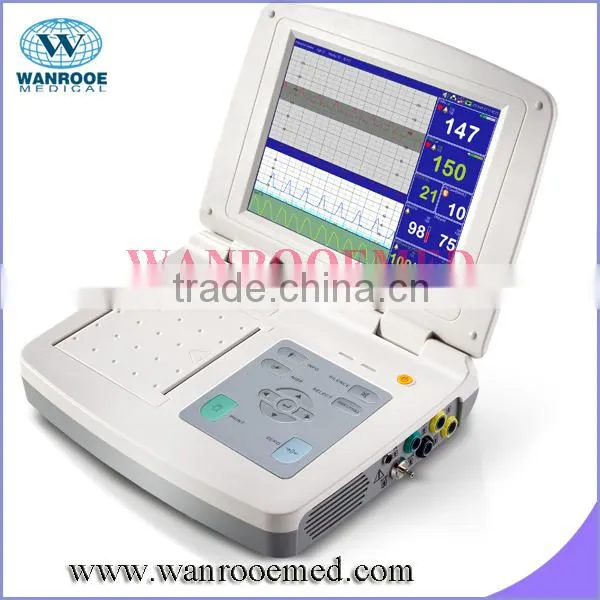

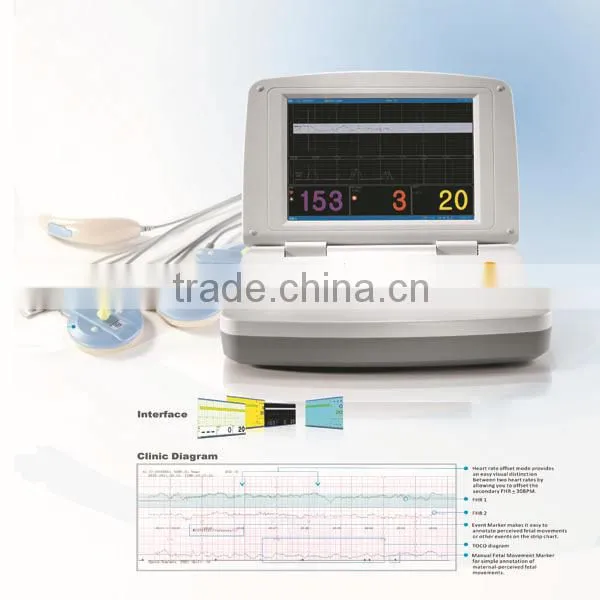

Mars K Portable Fetal Monitor
Unicare MARS K SERIES are high-tech fetal & maternal monitor, it offers a reliable, high-performance solution for fetal monitoring needs in the clinic and hospital, from pre-natal check-ups to antepartum monitoring of high-risk pregnancies. Mars K Series is your best partner from Antepartum through Intrapartum till Delivery.
Features:
1. Folded 10.4 inches TFT LCD high-brightness screen
2. 12-crystal waterproof pulse Doppler transducer (optional), providing
3. wider beam area and more homogeneous signal, thus realizing better performance for beside monitors than conventional transducers.
4. Event Marker makes it easy to annotate perceived fetal movements (FM), or other events on the strip chart.
5. Fetal Movement Profile(FMP) detects and automatically records gross fetal body movements.
6. Heart rate offset mode makes it easy to visually distinguish between the heart rates of twins by allowing you to offset the secondary FHR + 30BPM.
7. Heartbeat Coincidence recognition provides visual and audible indication when it detects synchronous fetal or maternal heart-rate signals, indicating that you may be monitoring a duplicate signal.
8. Fetal heart rate alarm provides both audible and visual alerts if the heart rate is outside of the user-defined high/low range.
9. Easy-to-load Z-fold paper stacks itself neatly upon exiting the recorder, facilitating easy storage.
10. Internal Li-on battery power or AC power from external power supply.
11. Supporting TCP/IP or wireless connection to the central monitoring station
12. NST Report (Fetus health report)
Fetal Acoustic Stimulator(FASt)
The optional Fetal Acoustic Stimulator uses low frequency vibro-acoustic stimuli(VAS) to “wake” the fetus, increasing the efficiency of antepartum testing and improving retest consistency. VAS indicated with a musical
Physical Specifications | |||||
Dimension and Weight |
Dimension |
32cm (W)*26cm (D)*8cm (H) |
|||
Weight |
standard configuration: 2.8 kg |
||||
Operation Environment |
Power requirements |
AC100-240V , 50/60Hz |
|||
Power |
50VA |
||||
Temperature |
0-40℃ |
||||
Humidity |
0-93% non-condensing |
||||
Fetal/Maternal Performance Specifications | |||||
Performance Specifications |
Display |
10.4 inches (1024×768 pixel) color TFT –LCD |
|||
Indicator |
Visual on-display and integrated, alarm light, audible alarm |
||||
Battery |
Internal rechargeable Li-ion battery power |
||||
Alarm |
Visual on-display and integrated, alarm light, audible alarm |
||||
Memory |
24-hours memory for fetal traces 150 groups patient data |
||||
Printer |
America standard/international standard Built-in thermal printer (paper width:110mm) 1/2/3cm/min real-time printing speed, fast print speed (stored traces) |
||||
Paper |
Z-fold, thermosensitive |
||||
Record Message |
ID, name, age, date, time, print speed etc |
||||
CMS |
Support connecting to central monitoring station through LAN (TCP/IP) or wireless connection |
||||
Fetal/Maternal Technical Specifications | |||||
Ultrasound (FHR) |
Measurement range |
US |
30 to 240 bpm |
||
Resolution |
Display |
1bpm |
|||
Printer |
1bpm |
||||
jitter@200 bpm |
≤3bpm |
||||
Display update rate |
0.25second |
||||
Beat to bea change(max.) for ultrasound |
28bpm |
||||
US frequency |
1MHz±5%Hz |
||||
TOCO |
Measurement method |
Strain gauge sensor element |
|||
Sensitivity |
1 unit =2.5g |
||||
Resolution |
1 unit |
||||
Measurement range |
500 units |
||||
Baseline setting |
0, 5,10, 15, 20 can be selective |
||||
Update rate |
0.25 second |
||||
Auto offset correction |
3 second after connecting the transducer |
||||
Auto zero adjust |
TOCO value is set to zero negative following a negative Measure value for 5 seconds |
||||
Auto Fetal Movement (AFM) |
Technique |
Pulsed doppler ultrasound |
|||
Range |
0-100% |
||||
Resolution |
1% |
||||
Automatic fetal movement actograph | |||||
Manual fetal movement marker | |||||
Maternal NIBP(MNIBP) |
Operation mode |
Manual/automatic/ STAT |
|||
Measurement unit |
mmHg / kPa selectable |
||||
Test interval |
0-480 minutes |
||||
Accuracy |
Max.Std.deviation:8 mmHg(1.1kPa) |
||||
Max. mean Error: ±5mmHg(±0.7kPa) | |||||
Measurement range |
Systolic |
30 to 270 mmHg(4 to 36 kPa) |
|||
Diastolic |
10 to 245 mmHg(1.5 to 32kPa) |
||||
Mean |
20 to 255 mmHg(2.5 to 34kPa) |
||||
Pulse rate range |
20-250bpm |
||||
Over-pressure protection |
Yes |
||||
Maternal SpO2 (MSpO2) |
Measurement range |
0%-100% |
|||
Resolution |
1% |
||||
Accuracy |
±2% |
||||
Pulse rate range accuracy |
±3bpm |
||||
Container Loading:
