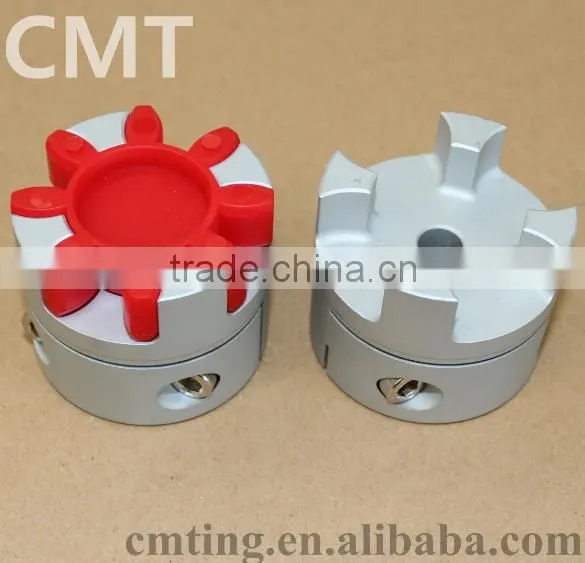

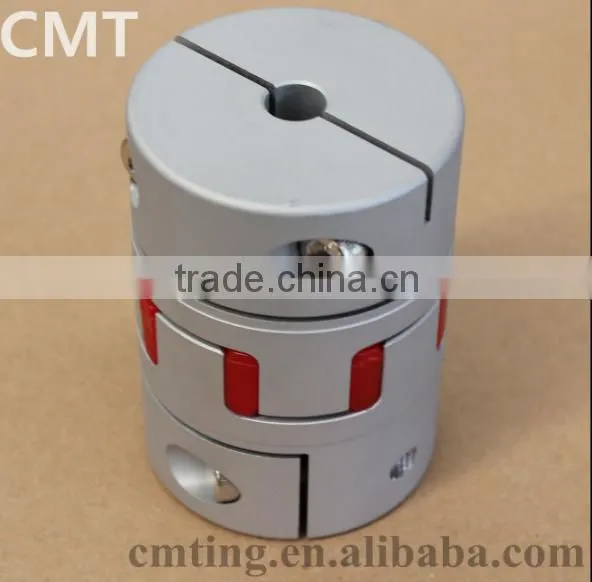

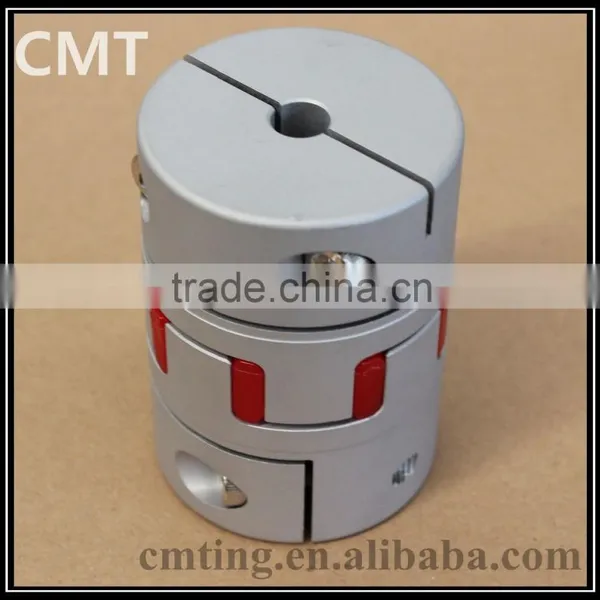

OD14 flexible jaw coupling for stepper motor
| Hub |
Aluminum alloy Anodizing treatment |
| Elastomer | Polyurethane |
- Clamp fixed type
- High Torque,Zero Backlash
- Oil-resistance and electrical insulation
- Usable temperature : -40℃~100℃
- Indentical clockwise and anti-clockwise rotational characteristics
- It can absorb torsional vibration, radial, angular misalignment and shaft end-play
- Applicable for servo motor, stepper motor
Points for Attention:
a) All products come with inside hexagonal bolt.
b) Recommended tolerance for shaft diameter is h7.
c) Bore and keyway modifications are available on request., please contact us.
d) Inertia moment and weight calculated based on the maximum shaft bore.

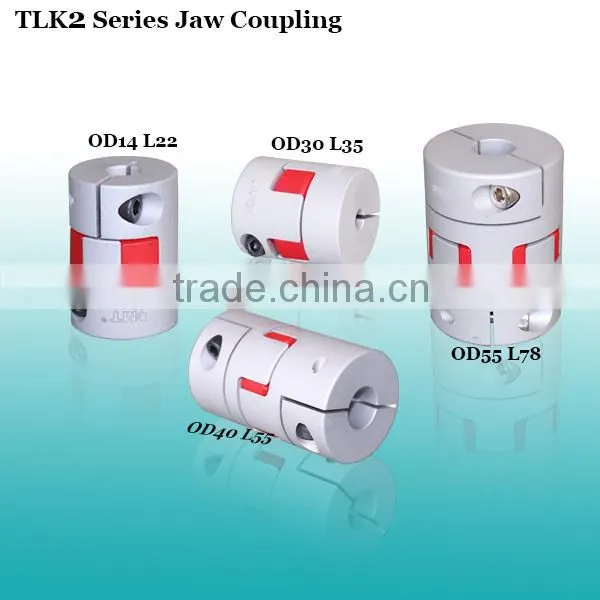

| TLK2 | 14 | R | C | 6 | 6 | |
| Series Number | Outside Diameter | Type | Clamp type | d1 Bore | d2 Bore | |

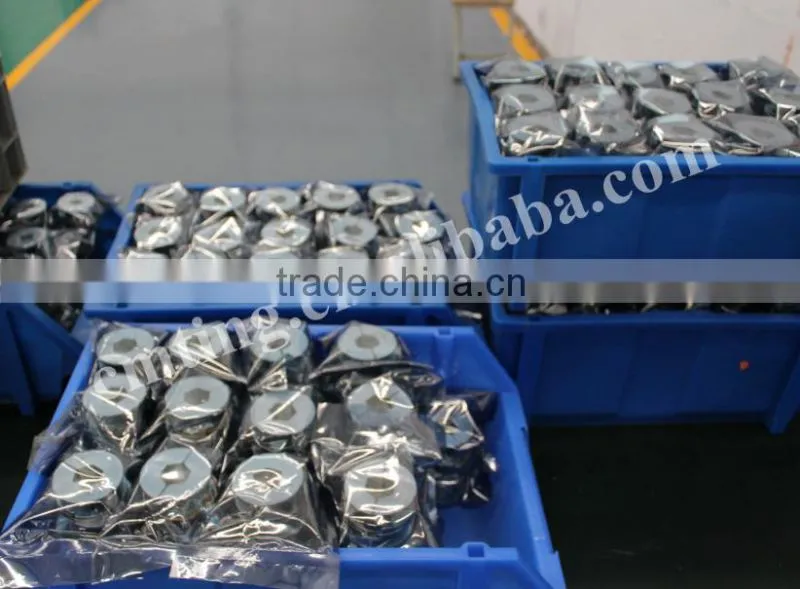

| Packaging Details: | Standard Export Package |
|---|---|
| Delivery Detail: | 7-15 working days |
OEM service can also be provided if needed.
We mainly produce beam coupling,steel (disc) couplings,jaw/spider couplings,resilient couplings,spiral/parallel couplings,bellows couplings.Universal Joints,Spring Coupling and star couplings etc.
Servo Couplings: Including single/double Disc Couplings, Jaw/spider Couplings, Beam Couplings ,Spring Couplings,timing pulleys etc.
Universal Joint: Single Joint, Double Joint.

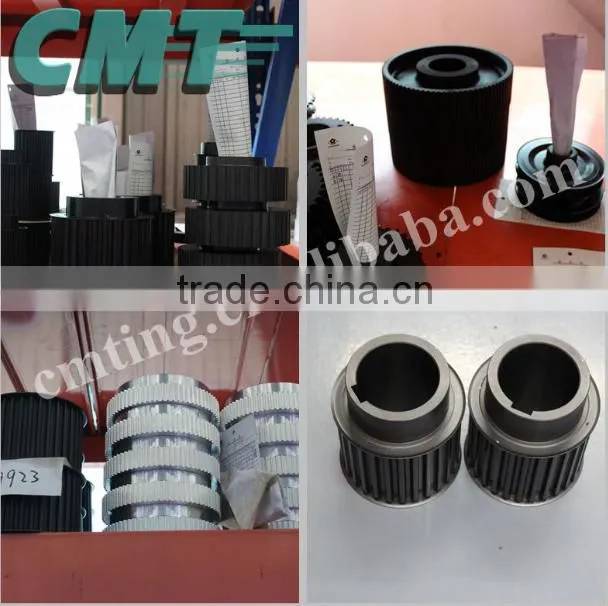

Timing pulleys:
1. Teeth Type: MXL,XXL XL,L ,H.XH,XXH, T2.5,T5,T10,T20, AT3,AT5,AT10,AT20, 3M,5M,8M,14M,20M, S2M,S3M,S4.5M,S5M,S8M,S14M
2. Metric System: T-type series(T2.5,T5,T10,T20)
3. HTD type:3M,5M,8M,14M
4.STPD/STS type:(S2M,S3M,S4.5M,S5M,S8M,S14M)
5. The British System: MXL,XL,L,H,X
1. Q: How about your quality?

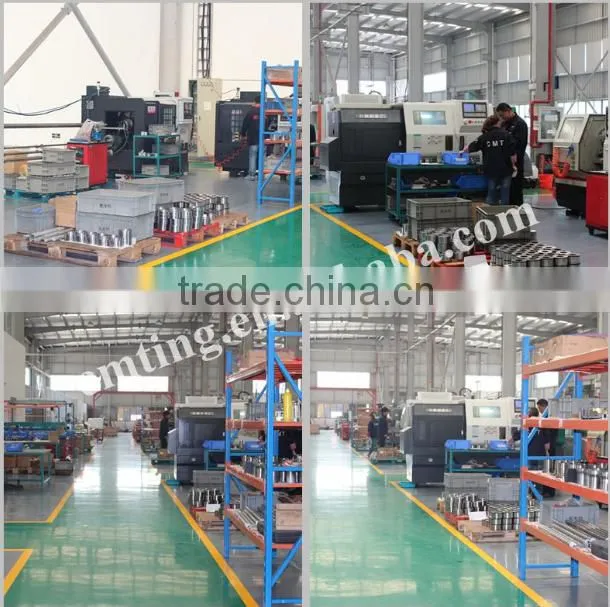

A: We have our own processional factory and workers,so believe that our products have advantage over our competitors
.
2. Q: What is the delivery time & transport time?
A: Usually our delivery time is about 15~20 working days for the standard products after the receiving the payment.
3. Q: Could you produce customized products according to your drawing or sample?
A: Yes, We have abundant experience in the production of non-standard products.
4. Q: What is your MOQ?
A: Minimum order quantity is 1
5. Q: How can I get some samples?
A: We're glad to hear that you want to make trial order,free samples can be provided for free(you just need to pay the shipping fee)
